Gray vertical USB-C docking station, slim rectangular block with ports on multiple faces

ESTONE

ESTONE BYL-2201 12-in-1 USB-C Vertical Docking Station Gray

SKU CH-E2V0-A6KAY

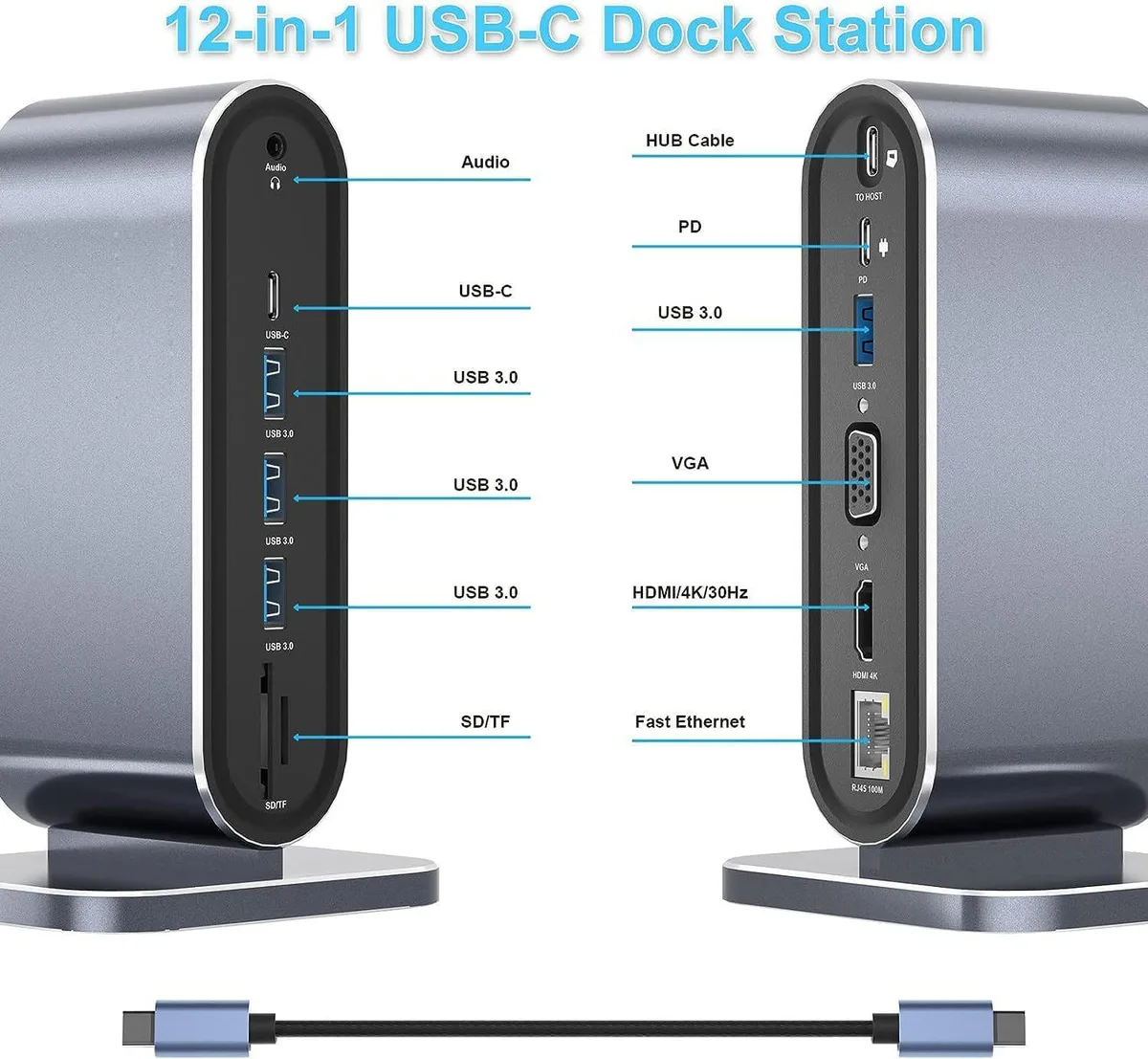

A vertical 12-in-1 USB-C dock adds 4K HDMI, VGA, four USB 3.0 ports, 100 W power delivery, 100 M Ethernet, SD/TF slots and 3.5 mm audio while using minimal desk space

  • ColorGray
  • CompatibilitySmartphones, Tablets, Keyboards, Laptops, Card Readers, Tele
  • Ports Spec12-in-1 Type-C Port: 4K HDMI,VGA,4 USB 3.0,100W PD,USB-C dat
  • Dimension6.77 x 3.66 x 0.91 inches
  • Weight89g/124g
  • Features12-in-1 Type-C Port: 4K HDMI,VGA,4 USB 3.0,100W PD,USB-C dat
  • Connect two displays via 4K HDMI and 1080P VGA
  • Charge laptop up to 100W while docked
  • Wired 100M Ethernet for stable network
  • Four USB 3.0 ports at 5Gbps speed
  • Vertical design saves 6.77 x 3.66 inch desk space

Compact 12-in-1 USB-C Dock

The ESTONE BYL-2201 is a gray vertical docking station that adds twelve ports through a single USB-C host connection. It supplies 4K HDMI, 1080p VGA, four USB 3.0 ports, a USB-C data port, 100 W power delivery, 100 Mbit Ethernet, SD and TF card slots and a 3.5 mm audio jack. The upright form factor measures 6.77 by 3.66 by 0.91 inches and weighs 89 to 124 grams.

Users needing one-cable desk expansion

This dock suits anyone who wants to connect a monitor, wired network, peripherals and memory cards while charging a laptop up to 100 W, all without installing drivers. Buyers who require dual 4K displays, faster than 100 Mbit Ethernet or more than four USB-A ports will not find those capabilities here.

4K HDMI at 30 Hz

The HDMI output reaches 3840 by 2160 at 30 Hz, while VGA stops at 1920 by 1080 at 60 Hz. If your workflow demands 4K at 60 Hz or higher refresh rates, this HDMI specification is the limiting factor.

Highlights

  • Connect two displays via 4K HDMI and 1080P VGA
  • Charge laptop up to 100W while docked
  • Wired 100M Ethernet for stable network
  • Four USB 3.0 ports at 5Gbps speed
  • Vertical design saves 6.77 x 3.66 inch desk space

Specifications

BrandESTONE
ModelBYL-2201
ColorGray
CompatibilitySmartphones, Tablets, Keyboards, Laptops, Card Readers, Televisions, Desktops
Ports Spec12-in-1 Type-C Port: 4K HDMI,VGA,4 USB 3.0,100W PD,USB-C data port, 100M Ethernet,TF/SD and 3.5mm audio port
Dimension6.77 x 3.66 x 0.91 inches
Weight89g/124g
Features12-in-1 Type-C Port: 4K HDMI,VGA,4 USB 3.0,100W PD,USB-C data port, 100M Ethernet,TF/SD and 3.5mm audio port
FunctionNotebook

Questions about this item

Will my laptop need a USB-C port that supports video and 100W PD to use every port on the BYL-2201?

Yes, the host USB-C must carry DisplayPort Alt Mode for the 4K HDMI and VGA outputs and accept up to 100W Power Delivery so the dock can charge the laptop while driving both displays.

If I keep an older 1080p monitor on VGA and add a 4K screen on HDMI, will both run at their native rates?

The VGA port delivers 1920 x 1080 at 60 Hz while the HDMI port reaches 3840 x 2160 at 30 Hz, so each monitor operates at its specified maximum simultaneously.

How can I confirm the dock’s Ethernet and card reader are active after plugging it in?

The RJ-45 LEDs will light for a 100 Mbit link and the SD or TF card will appear in the file manager with transfer speeds up to 104 MB/s, showing both interfaces are working.
