ESTONE
ESTONE BXS14IN1 14-in-1 USB-C Docking Station Silver
A 14-port USB-C hub adds dual 4K HDMI, VGA, Gigabit Ethernet, five USB 3.0 ports, SD/TF readers, 3.5 mm audio and 10 W wireless charging while passing 87 W power to the laptop
- ColorSilver
- CompatibilityComplitiblity List: MacBook Pro 16"/15"/13" 2020/2019/2018/2
- Thunderbolt 3Yes
- Ports Spec1 x USB 3.1
- Dimension8.23 x 3.82 x 1.06 inches
- Weight10 ounces
- Expand connectivity with 14 ports in one hub
- Drive two 4K displays at 30 Hz via dual HDMI
- Add wired 1000 Mbps Ethernet for stable networking
- Charge laptop up to 87 W while powering peripherals
- Wirelessly charge phone up to 10 W on built-in pad
14-in-1 USB-C Dock with Dual 4K HDMI

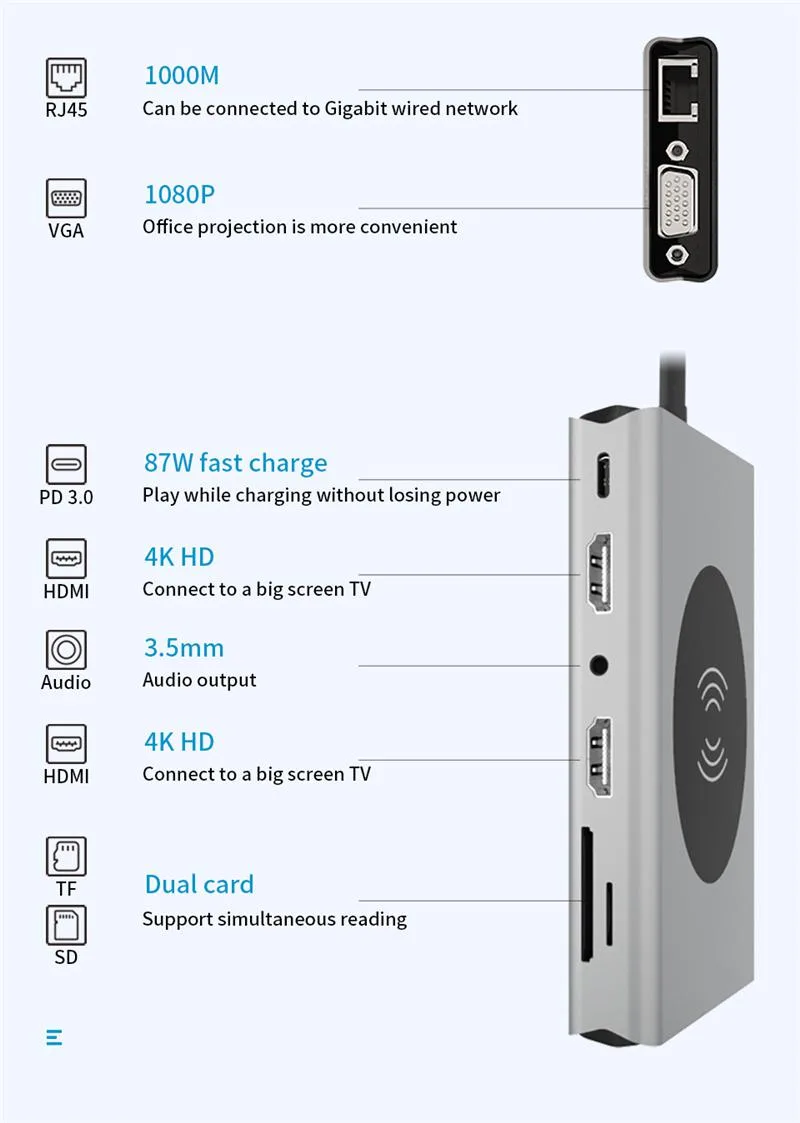

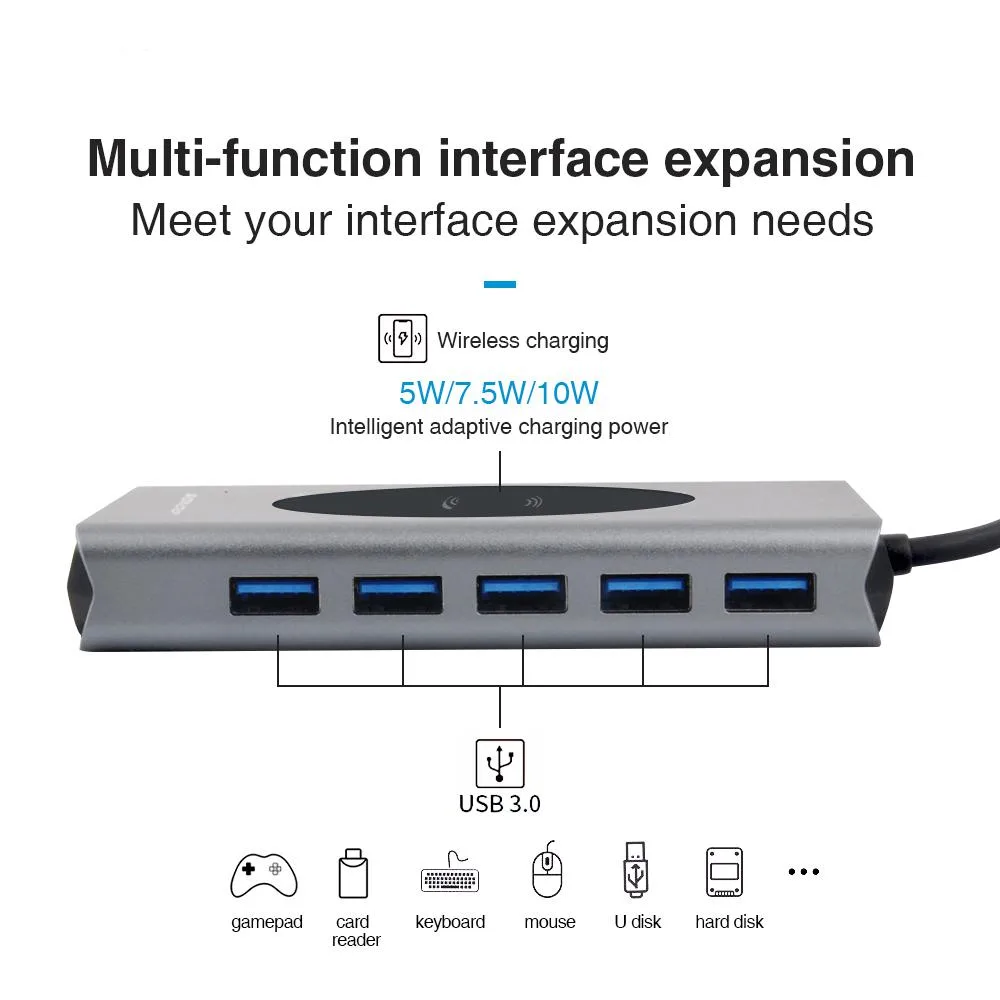

The ESTONE BXS14IN1 expands a single USB-C port into fourteen connections. It adds two HDMI outputs, one VGA port, five USB 3.0 Type-A sockets, a USB 3.1 Type-C PD input, Gigabit Ethernet, SD and microSD slots, a 3.5 mm audio jack and a 10 W wireless charging pad. The aluminium-and-ABS housing measures 8.23 x 3.82 x 1.06 inches and weighs 10 ounces. It targets MacBook Pro, MacBook Air, iMac, Surface and Chromebook users who need legacy video, wired networking and card-reader access in one compact hub.
Video and data limits of the USB-C interface
Each HDMI port delivers 3840 x 2160 at 30 Hz and is backward compatible with 1080p and 720p signals. The VGA output reaches 1080p at 60 Hz. USB 3.0 ports run at 5 Gbps and fall back to USB 2.0 at 480 Mbps. The RJ-45 jack negotiates 1000 Mbps Ethernet. Power Delivery accepts up to 100 W input but reserves 13 W for hub operation, so the host receives a maximum of 87 W. Wireless charging peaks at 10 W for Qi-compatible phones. SD and microSD cards can be read simultaneously, with throughput limited by the inserted media.
Plug-and-play setup with cable-length caution
The 15 cm tethered USB-C cable connects directly to the host; no driver installation is required on supported macOS, Windows or Chrome OS devices. Ensure the host port supplies enough current for 87 W pass-through, otherwise the laptop may not charge under load. The short cable can strain side-mounted ports on thicker laptops, so position the dock carefully. Wireless charging works only when the dock is powered and the phone aligns with the marked pad. Audio output switches automatically when a 3.5 mm plug is inserted.
Highlights
- Expand connectivity with 14 ports in one hub
- Drive two 4K displays at 30 Hz via dual HDMI
- Add wired 1000 Mbps Ethernet for stable networking
- Charge laptop up to 87 W while powering peripherals
- Wirelessly charge phone up to 10 W on built-in pad
Specifications
| Brand | ESTONE |
|---|---|
| Model | BXS14IN1 |
| Color | Silver |
| Compatibility | Complitiblity List: MacBook Pro 16"/15"/13" 2020/2019/2018/2017/2016; MacBook Air 13" 2019/2018; Macbook Retina 12" Laptop 2015/2016 iMac, iMac Pro 2019 2018 2017 Microsoft Surfacebook 2, Surface Go ; Google Chromebook Pixel; Dell XPS 13 15, Dell Precision. etc. HP Spectre X2, HP X360, HP Elite×2 1012, HP Elitebook Folio G1, HP ZBook 15 G3New Acer Switch Alpha 12, Acer Spin 7, Acer Chromebook R13,Acer Aspire V Nitro 15 Lenovo Yoga 900/ 910/920,Lenovo X1 Yoga (2nd Gen),13' Lenovo 720 laptop ,NUC Supported Systems: Windows 10, 8, 7, Vista, XP, Mac OS X 10.6 or later, Linux 2.6.14 or La |
| Thunderbolt 3 | Yes |
| Ports Spec | 1 x USB 3.1 |
| Dimension | 8.23 x 3.82 x 1.06 inches |
| Weight | 10 ounces |
| Features | 1.14-IN-1 USB C DOCKING STATION: USB C multiport adapter has everything you need to expand your Type C computer or device. Cast your screen with HD HDMI and VGA ports, import photos with SD/MicroSD card readers, listen to audio, connect to your network with Ethernet, and plug in up to 5 USB 3.0 devices and with Wireless Charging (5W / 7.5w/10w charging power). 2.MULTIPLE MONITOR SUPPORT AND WIRED ETHERNET: USB C adapter supports simultaneous HDMI and VGA display with a max resolution of 1080P. HDMI resolution is 4K×2K, 3840×2160 at 30hz, and 1080P at 60hz. Cast your screen, use it fo |
| Function | Notebook |
| Content | HDMI/DVI/VGA |
Questions about this item
How do I decide between the two 4K HDMI outputs and the single VGA port for my display setup?
The two HDMI ports each deliver 3840x2160 at 30 Hz, while the VGA port provides 1080p at 60 Hz; choose HDMI for higher resolution or VGA for a higher refresh rate on legacy monitors.
What does the 100 W PD rating mean for charging my laptop while the dock is in use?
The dock accepts up to 100 W input via USB-C PD 3.0 and passes up to 87 W to the connected laptop, leaving the remaining power for the hub’s own ports and wireless charger.
Which USB standard limits the five Type-A ports to 5 Gbps, and does the single Type-C port differ?
All five Type-A ports and the single Type-C port run at USB 3.1 Gen 1 speeds of 5 Gbps; no port on this dock exceeds that bandwidth.
