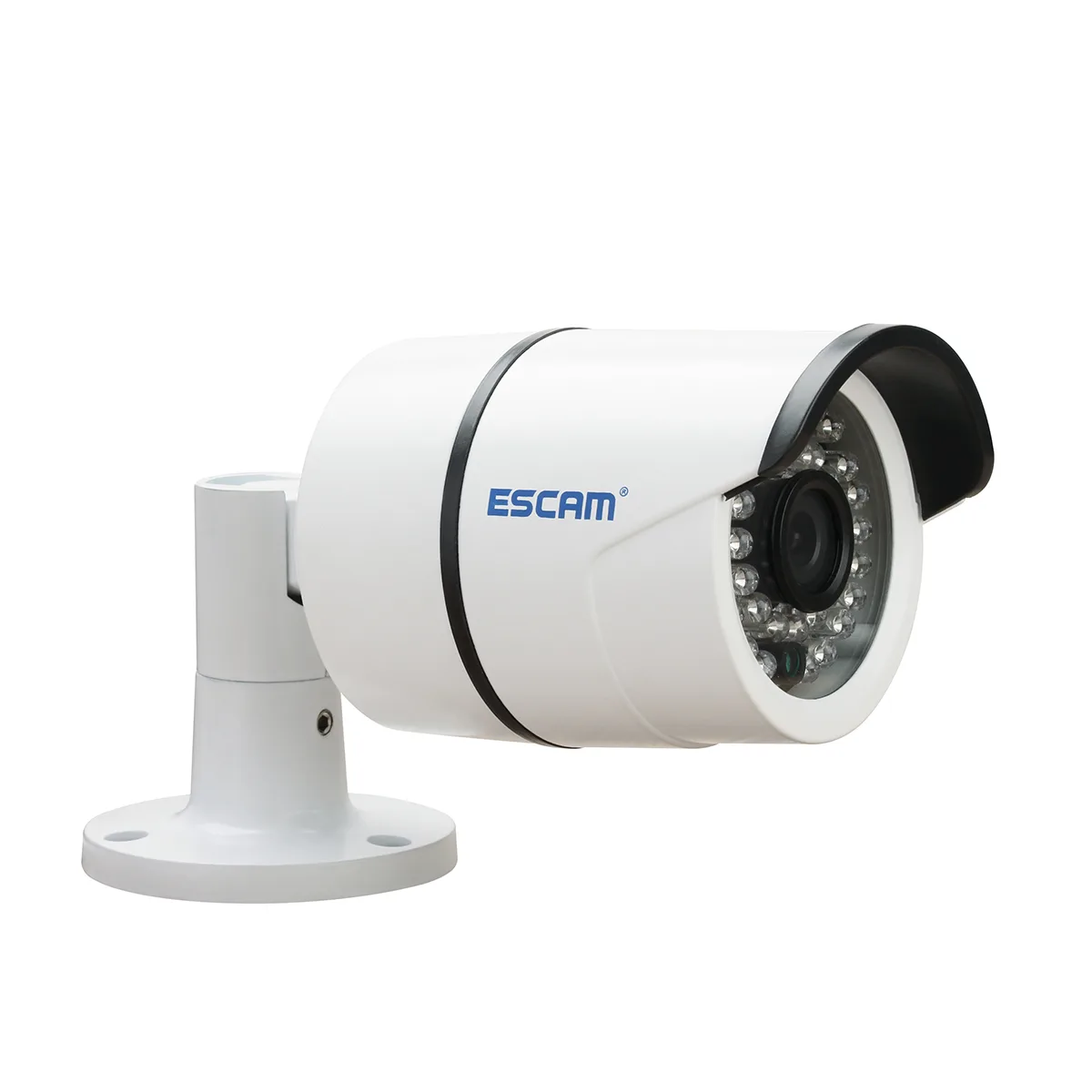

White cylindrical bullet camera with 36 IR LEDs, IP66 rated, 185 mm long, 65 mm diameter

ESCAM Technology Co., Ltd

ESCAM Technology Co., Ltd Bolt QD410 4MP network camera

SKU CH-R9ZW-1F78F

A 4 MP IP bullet camera with H.265 compression, IR night vision to 15 m and IP66 weather protection

  • Bundled Camera Number1 Camera
  • Camera Type4MP
  • Network CameraYes
  • Connection TypeRJ45
  • ColorWhite
  • Sensor & DetectorCMOS
  • Sharp 4MP detail at 2592×1520 resolution
  • Efficient H.265 compression cuts storage needs
  • Weatherproof IP66 rating withstands outdoor conditions
  • Night vision reaches 15 metres with 36 IR LEDs
  • ONVIF 2.0 ensures broad recorder compatibility

What the Bolt QD410 is and who it suits

The ESCAM Bolt QD410 is a 4MP IP bullet camera designed for outdoor surveillance. It delivers a main stream at 2592×1520 resolution and 18 fps using H.265 or H.264 compression. ONVIF 2.0 support allows integration with compatible NVRs and software platforms. The camera suits installers who need a single wired unit with infrared night vision up to 15 metres.

Build, connectors and daily mounting

A white aluminium housing rated IP66 protects the 1/3" CMOS sensor and 36 IR LEDs against dust and heavy rain across a -10°C to +60°C range. The fixed 3.6 mm lens with F1.6 aperture provides a 75.7° viewing angle. A single RJ45 port carries 10/100 Ethernet data, while a DC12V input powers the device. The compact 185×65×65 mm body weighs 0.36 kg for straightforward wall or bracket mounting.

Thermals, noise and power in normal use

Passive cooling keeps the unit completely silent during operation. Maximum power draw stays below 6 W, so a standard 12 V supply is sufficient. The camera operates reliably across the full -10°C to +60°C temperature band without active fans. Infrared illumination activates automatically in low light, maintaining surveillance capability through the night.

Highlights

  • Sharp 4MP detail at 2592×1520 resolution
  • Efficient H.265 compression cuts storage needs
  • Weatherproof IP66 rating withstands outdoor conditions
  • Night vision reaches 15 metres with 36 IR LEDs
  • ONVIF 2.0 ensures broad recorder compatibility

Specifications

Bundled Camera Number1 Camera
Camera Type4MP
Network CameraYes
Connection TypeRJ45
ColorWhite
Sensor & DetectorCMOS
Pixels4 MP
HD Resolution1080P

Questions about this item

What Ethernet speed does the RJ45 port support on the QD410?

The RJ45 port runs at 10/100Base-T, so the wired link caps at 100 Mbps.

What are the physical dimensions and mounting footprint of the QD410 bullet camera?

The camera body measures 185 mm × 65 mm × 65 mm and weighs 0.36 kg, fitting a standard bullet bracket.

How is the QD410 powered and what wiring mistake should I avoid?

It requires a DC12V supply drawing under 6 W; do not apply PoE voltage to the RJ45 port.
