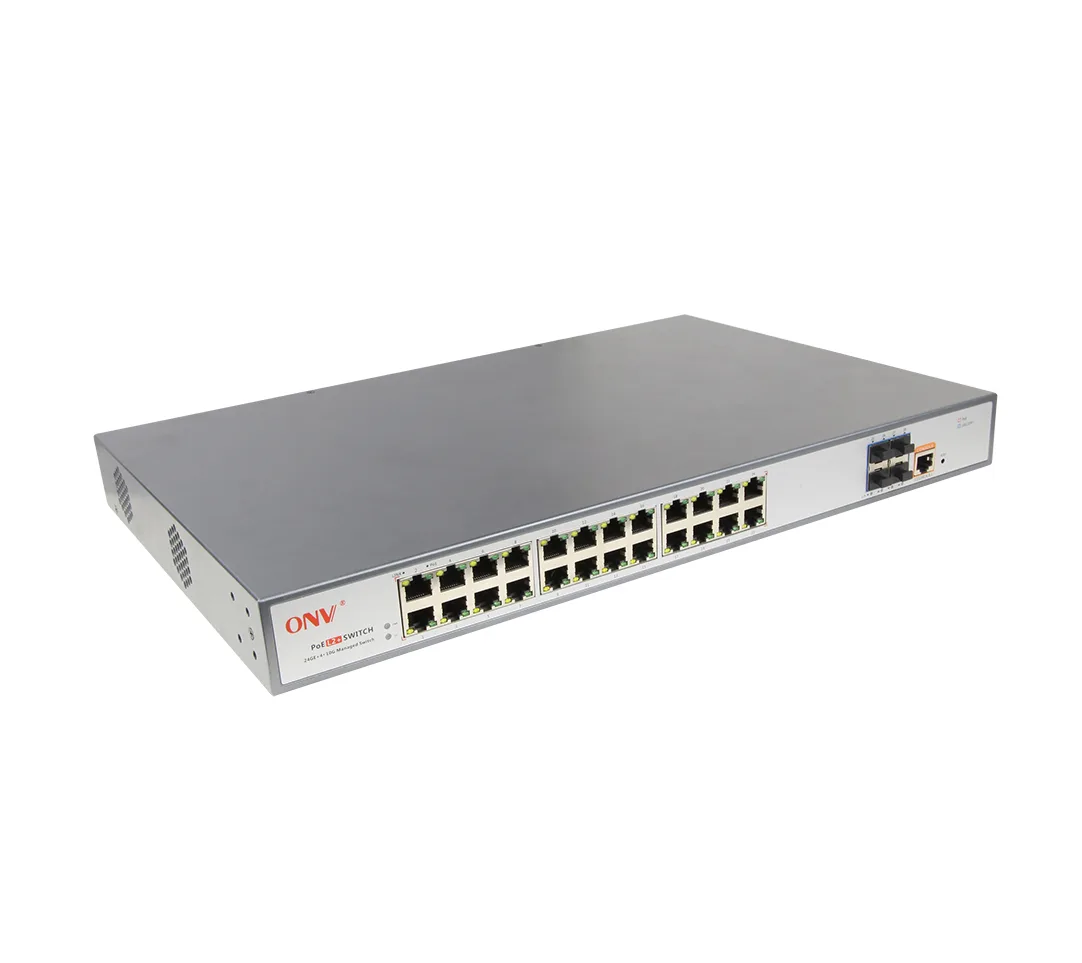

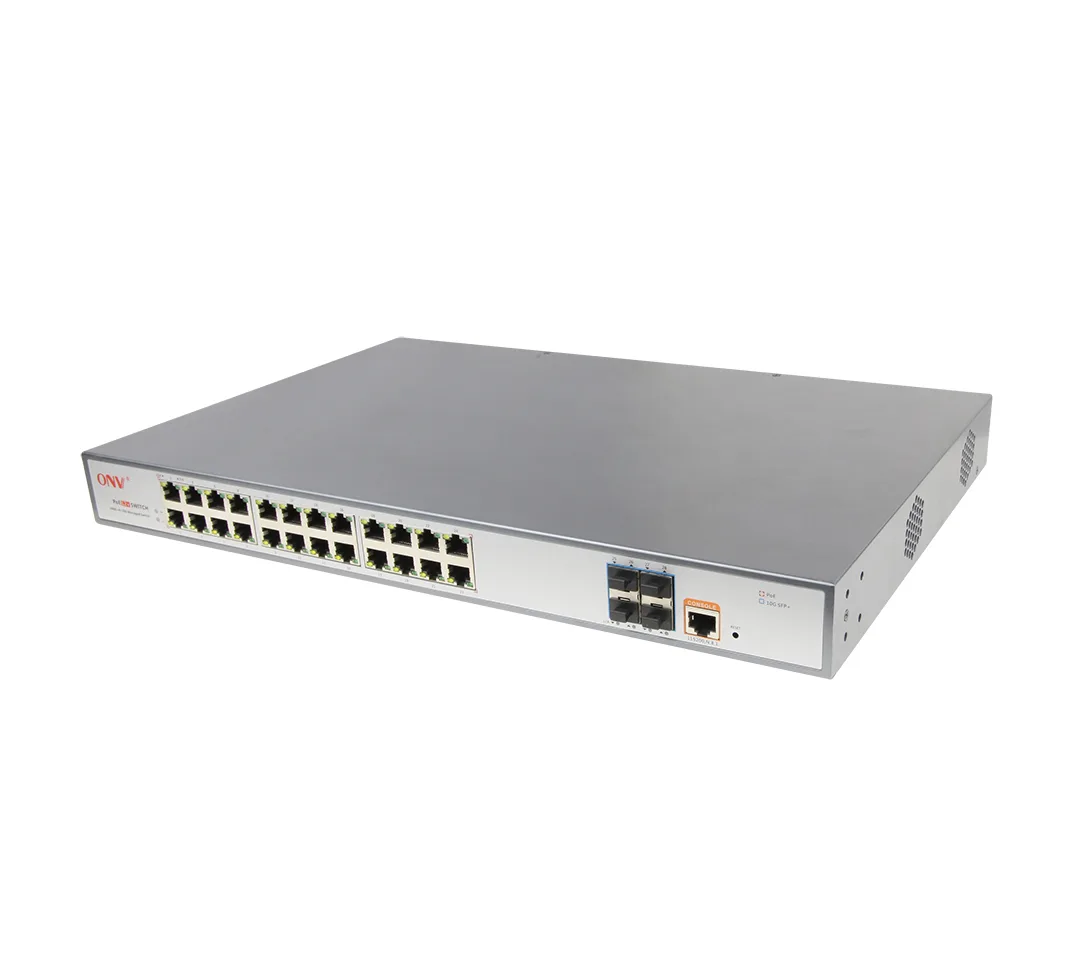

Silver rack-mount switch with 24 RJ45 ports and four SFP+ cages

ESCAM Technology Co., Ltd

ESCAM ONV-POE36028PFM 28-port 10G L2+ Managed PoE Switch

SKU CH-CEQF-819JK MPN ONV-POE36028PFM

A 28-port L2+ managed PoE switch with 24 gigabit RJ45 ports and four 10G SFP+ uplinks, delivering up to 30W per port within a 400W total budget

  • Switch TypePOE Switch
  • Package Contents1
  • 24 PoE ports power cameras and access points directly
  • 4 SFP+ uplinks provide 10 Gbps fibre links for core connectivity
  • 400 W total PoE budget feeds every port up to 30 W
  • L2+ management adds VLAN, QoS, ACL and storm control
  • Jumbo frames up to 9.6 KB boost throughput for large data flows

28-Port 10G L2+ Managed PoE Switch

This ESCAM ONV-POE36028PFM switch delivers twenty-four 10/100/1000M PoE RJ45 ports plus four 10G SFP+ uplinks. It complies with IEEE 802.3af/at standards and provides up to 30W per PoE port within a 400W total power budget. Layer 2+ management features include VLAN, QoS, ACLs, spanning tree, and jumbo frames up to 9.6K bytes. Administrators can configure and monitor the device via web, CLI, Telnet, or SNMP.

Network builds needing high-density PoE

The unit suits installations that power IP cameras, wireless access points, or VoIP phones while aggregating traffic over 10G fibre links. It is not designed for environments that require only non-PoE switching or that need Layer 3 routing capabilities. Buyers who do not need per-port power control or advanced L2+ features such as storm control and port isolation should consider simpler switches.

400W total PoE budget

The 400W power limit determines how many ports can simultaneously draw the maximum 30W. If every powered device requires full 30W, only thirteen ports can be fully loaded at once. Calculate the actual power draw of your endpoints before deployment to ensure the budget covers all connected devices.

Highlights

  • 24 PoE ports power cameras and access points directly
  • 4 SFP+ uplinks provide 10 Gbps fibre links for core connectivity
  • 400 W total PoE budget feeds every port up to 30 W
  • L2+ management adds VLAN, QoS, ACL and storm control
  • Jumbo frames up to 9.6 KB boost throughput for large data flows

Specifications

BrandONV
ModelONV-POE36028PFM
Switch TypePOE Switch
Package Contents1

Questions about this item

How can I verify the 28-port switch is passing traffic on all 24 PoE RJ45 and 4 SFP+ ports after setup?

Connect devices to each port and check the front-panel LEDs for link and PoE status; then log into the web, CLI, TELNET or SNMP interface to confirm port states, VLANs, and PoE power readings per port.

What ships with the ONV-POE36028PFM and what must I source separately?

The box contains the switch unit only; you must purchase SFP+ transceivers for the four 10G uplinks and Ethernet cables for the 24 RJ45 ports.

Should I choose a different model if I need more than 30 W per PoE port or a higher total power budget?

This model delivers up to 30 W per PoE port with a 400 W total budget; if your devices require more per-port power or a larger aggregate budget, select a switch with higher PoE specifications.
