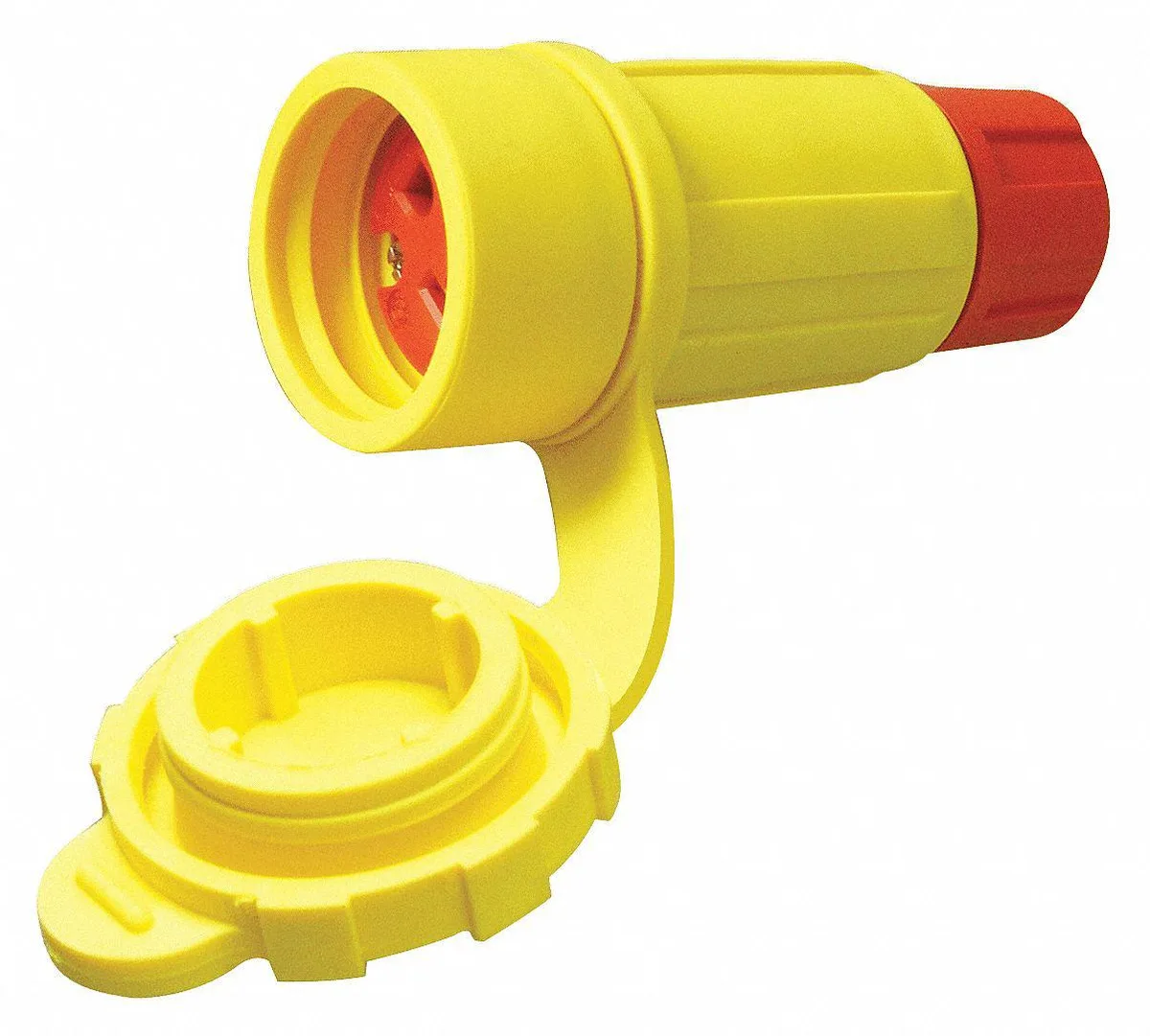

Yellow industrial locking connector with straight orientation and shrouded screw terminals

Ericson

Ericson 2624-CW6P-AM Locking Connector L16-30R 30A 480V Three Phase 3 Pole electrical box

SKU CH-Q64M-FWS61

A 30 A, 480 V three-phase locking connector with IP69K rating and antimicrobial housing for industrial use

  • TypeElectrical Connectors
  • IP69K rating protects against high-pressure washdown
  • Antimicrobial housing reduces surface contamination
  • L16-30R locking connector secures three-phase power
  • Screw terminals accept 0.64–0.93 in cable diameters
  • Yellow thermoplastic elastomer shell built for industrial use

Industrial Locking Connector

The Ericson 2624-CW6P-AM is a straight L16-30R locking connector rated for 30 A at 480V AC three-phase power. It suits industrial maintenance teams and panel builders who need a rugged, IP69K-sealed connection for high-voltage equipment.

Screw Terminals and Cable Range

Installation uses standard screw terminals inside a shrouded, antimicrobial thermoplastic elastomer housing. The connector accepts cables from .64 in to .93 in diameter; stripping outside this range or over-tightening the terminals are the most common fitting errors.

30 A 480 V Three-Phase Rating

The decisive specification is the 30 A, 480V AC, three-phase rating with a 3-pole, 4-wire NEMA L16-30R configuration. If your circuit demands a different voltage, phase count or amperage, this connector will not match.

Highlights

  • IP69K rating protects against high-pressure washdown
  • Antimicrobial housing reduces surface contamination
  • L16-30R locking connector secures three-phase power
  • Screw terminals accept 0.64–0.93 in cable diameters
  • Yellow thermoplastic elastomer shell built for industrial use

Specifications

BrandEricson
TypeElectrical Connectors

Questions about this item

How can I verify the 30 A 480V three-phase connection is working after wiring the screw terminals?

Confirm the yellow thermoplastic elastomer housing shows no damage, the IP69K seal is intact, and the L16-30R locking connector seats firmly with the shroud engaged; then measure 480 V AC across the three poles under load.

What comes in the box and what must I supply separately for the Ericson 2624-CW6P-AM?

The locking connector with antimicrobial housing and shrouded straight orientation is supplied; you must provide 4-conductor cable between 0.64 in and 0.93 in diameter and tools for the screw terminals.

Which NEMA configuration and current rating should I select for a 480 V three-phase 30 A circuit?

Choose the L16-30R version rated 30 A, 480 V AC, three-phase, 3-pole 4-wire with IP69K antimicrobial housing.
