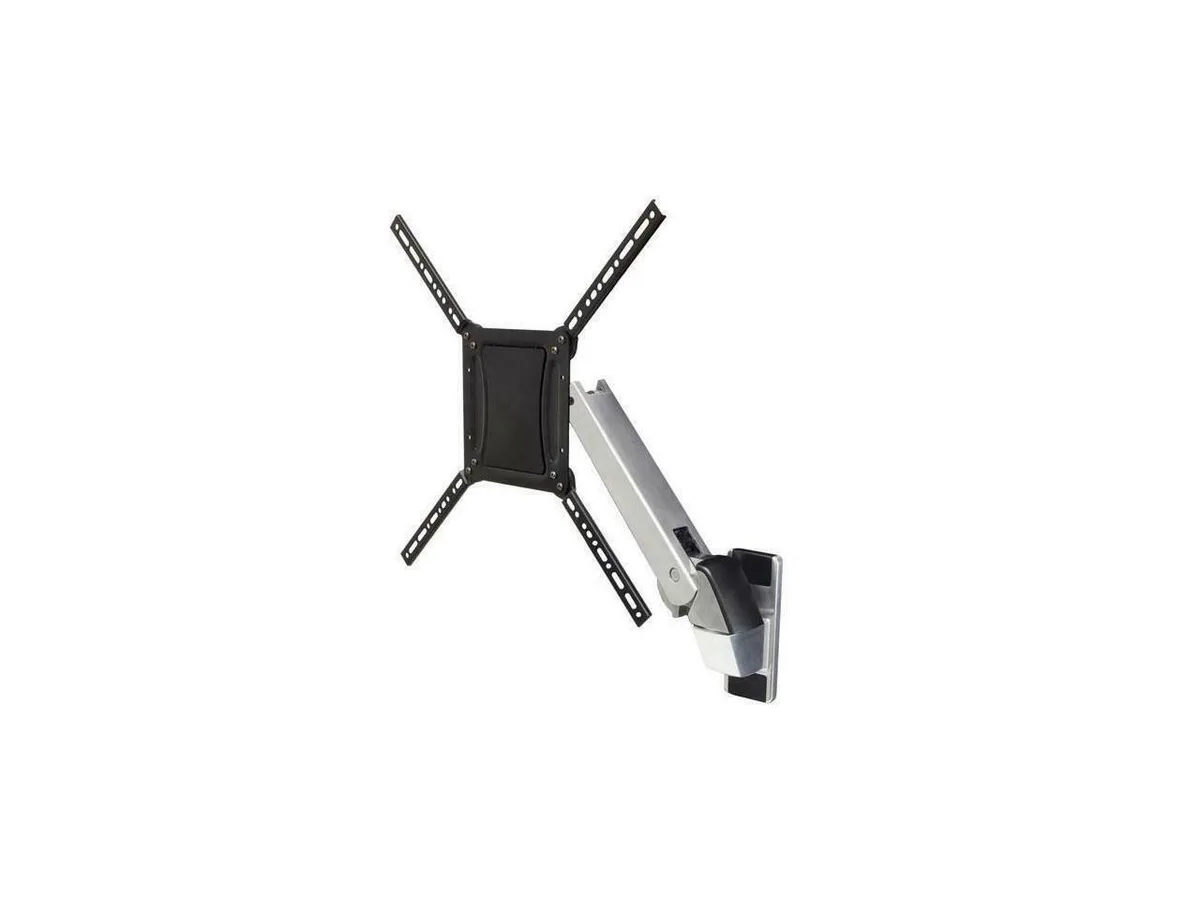

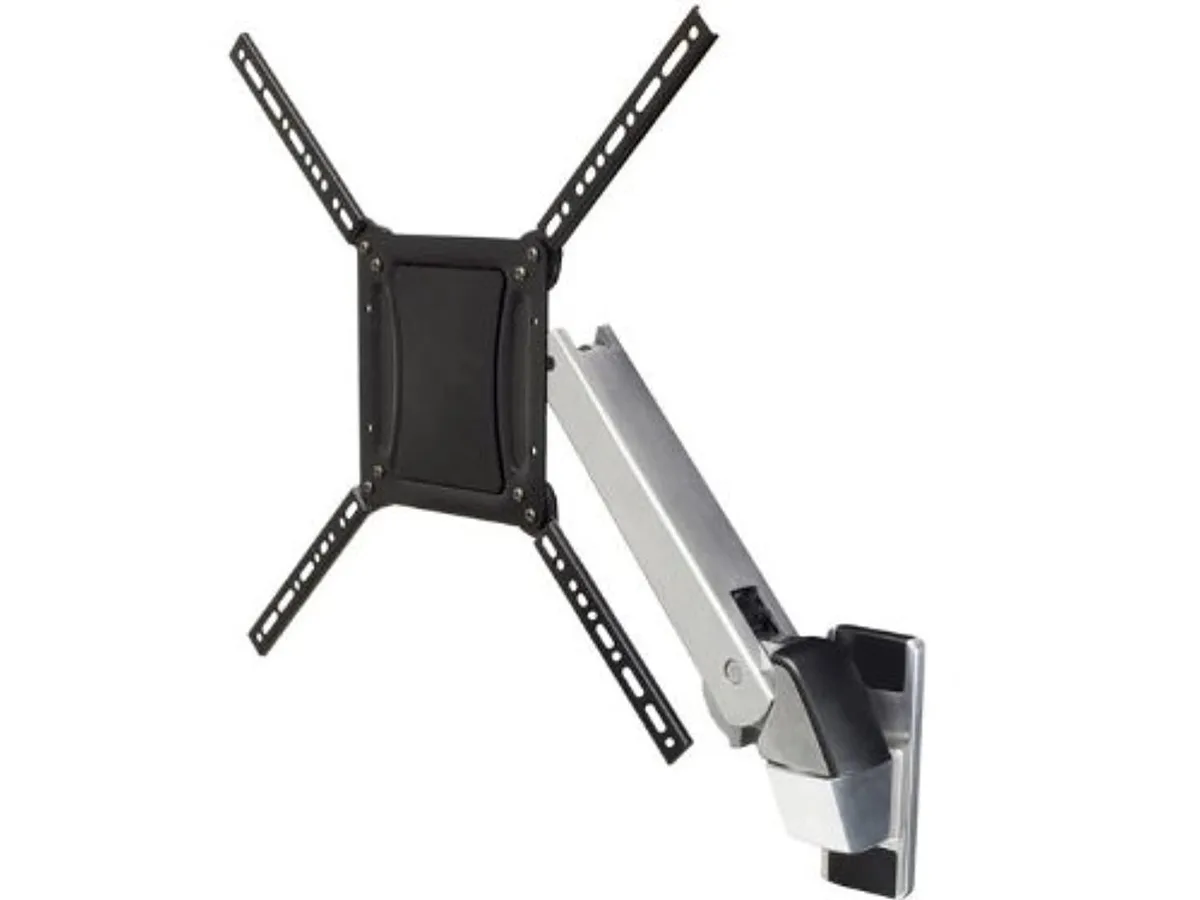

Polished aluminium and black articulating TV arm, extends 24 inches, retracts to 5.5 inches

Ergotron

Ergotron 45-296-026 HD Interactive Arm TV Mount 30-55" 40 lbs

SKU CH-NVQ3-HW42R MPN 45-296-026

A full-motion TV mount for 30 to 55 inch screens up to 40 lbs extends 24 inches and retracts to 5.5 inches with light-touch adjustments

  • NameInteractive Arm, HD
  • Mount StyleArticulating/Full Motion
  • ColorBlack
  • TV Size Capacity= 30"
  • TV Weight CapacityMax. load 40 lbs.
  • VESA CompatibleMIS-E/F*
  • Effortless screen repositioning with Patented Constant Force™ technology
  • Extends 24" from wall and retracts to 5.5" for space saving
  • 180° swivel and 25° tilt eliminate awkward viewing angles
  • Built-in cable management keeps connections tidy
  • Supports 30" to 55" displays up to 40 lbs

HD Interactive Arm for 30-55" Displays

The Ergotron 45-296-026 is a full-motion mounting arm designed for flat-panel displays measuring 30 to 55 inches. It supports a maximum load of 40 lbs and attaches to VESA MIS-E/F patterns including 200 x 400 mm. Patented Constant Force™ technology allows light-touch adjustments so the screen appears to float. The arm extends 24 inches from the wall and retracts to 5.5 inches.

Suited for Interactive Viewing Heights

This mount suits users who need frequent height changes between seated and standing positions, offering 20 inches of vertical travel and 17.5 inches of lateral motion. The 180-degree swivel and 25-degree tilt accommodate wide viewing angles in open-plan rooms. Buyers with screens heavier than 40 lbs or smaller than 30 inches should look at a different model. Installations requiring a fixed low-profile flush mount will not be satisfied.

40 lbs Maximum Load Capacity

The single specification that decides fit is the 40 lbs maximum load capacity combined with the 30-to-55-inch screen range. Verify the display weight and VESA hole pattern before purchase. The arm weighs 23 lbs and measures 7.5 by 12 by 26 inches, so ensure the wall structure can support the assembly. Cable management is integrated to keep routing tidy during articulation.

Highlights

  • Effortless screen repositioning with Patented Constant Force™ technology
  • Extends 24" from wall and retracts to 5.5" for space saving
  • 180° swivel and 25° tilt eliminate awkward viewing angles
  • Built-in cable management keeps connections tidy
  • Supports 30" to 55" displays up to 40 lbs

Specifications

BrandErgotron
Model45-296-026
NameInteractive Arm, HD
Mount StyleArticulating/Full Motion
ColorBlack
TV Size Capacity= 30"
TV Weight CapacityMax. load 40 lbs.
VESA CompatibleMIS-E/F*
Rotation Range10°‡
Swivel Range180°
Tilt Range25°†
Cable ManagementYes
FeaturePatented Constant Force™ technology enables light-touch adjustments
Extends 24" (61 cm) from wall when in use and can be fully retracted to 5.5" (14 cm) when not in use
The revolutionary design allows interaction with your TV by moving the screen to where you want it when watching movies, gaming, exercising and more
Provides smooth, continuous vertical and horizontal movement of the TV/display in all directions
Gravity pivot enables tilting capabilities without the need of knobs or levers
Improves ergonomic viewing for TVs/displays mounted high on the wall
Constructed from polished a
Height7.5"
Width12"
Depth26
Weight23 lbs
Shipping weight9.98 kg
Package size254 × 203 × 152 mm

Questions about this item

How do I mount the 45-296-026 to a wall stud and what step is often missed?

Attach the wall bracket to studs using the supplied hardware kit, then hang the 23 lb arm onto the bracket; the step often missed is confirming the bracket is level before tightening the lag bolts.

What maintenance will the Constant Force™ mechanism need over time?

The gas-spring Constant Force™ mechanism is sealed and requires no lubrication or periodic adjustment; only check that the VESA adapter brackets remain snug on the display.

At what extension does the arm reach its 40 lb load limit?

The 40 lb maximum load applies at any position from the fully retracted 5.5" depth out to the full 24" extension; exceeding 40 lbs is the first limit encountered under sustained use.
