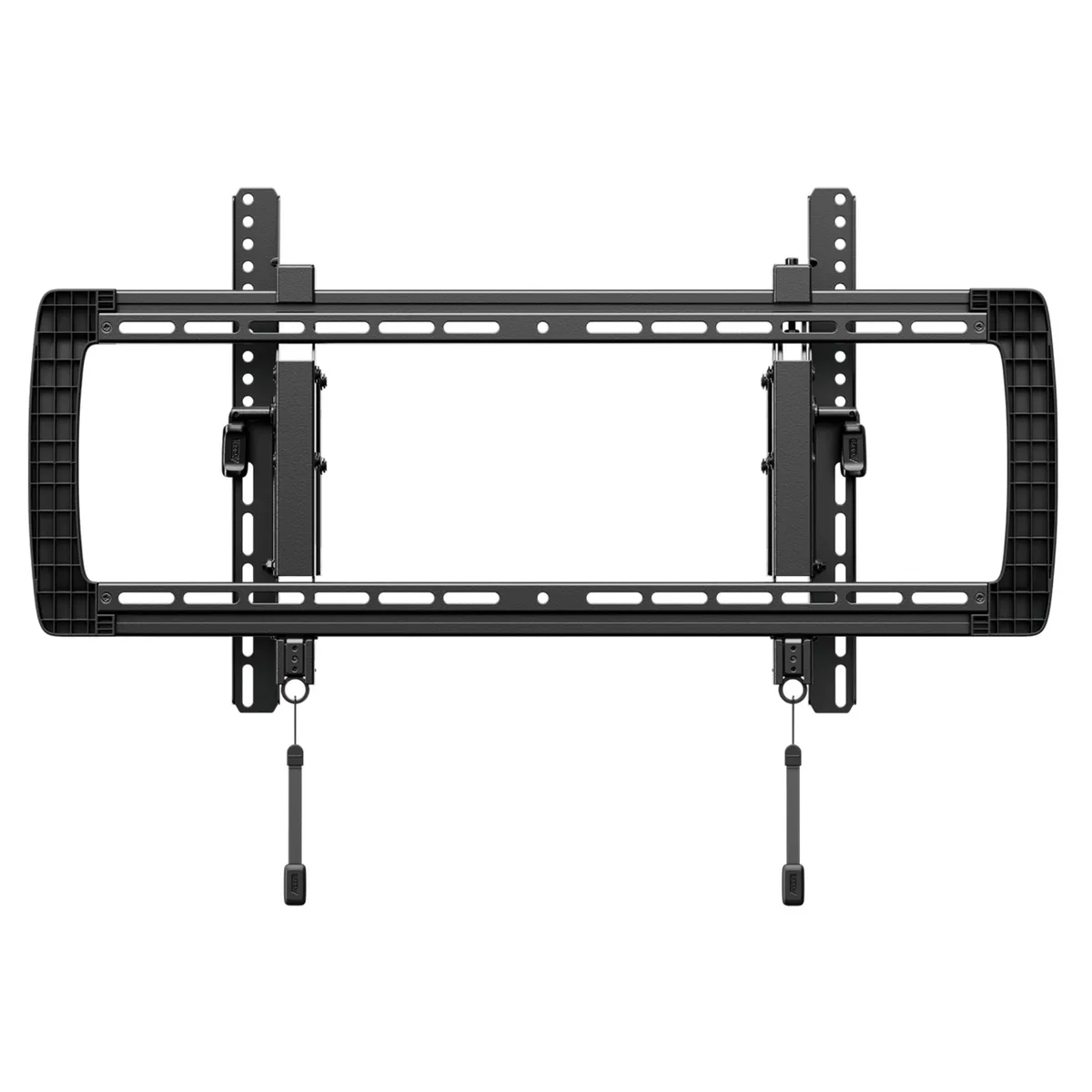

Black steel wall mount with extendable arms and tilt mechanism for large flat-screen TVs

ErgoAV

ErgoAV ERMTL7-01B Extend Tilt TV Mount 42-98" 150 lbs

SKU CH-S4A5-5B4JY

A steel wall mount holds 42 to 98 inch TVs up to 150 lbs with extend, tilt, swivel, horizontal shift, level adjustment and a secure latching mechanism

  • Install LocationWall
  • Mount StyleWall Mount
  • MaterialSteel
  • ColorBlack
  • MovableSwivel, tilt, and horizontal shift
  • TV Weight CapacityMax. load 150 lbs.
  • Extension boosts tilt range and simplifies cable access
  • ±2° level adjustment fine-tunes viewing after install
  • Unique latch secures and releases TV quickly
  • Horizontal shift centres the screen on the wall
  • Open wall plate fits outlets and low‑voltage pass‑through

Mount fits 42-98 inch TVs up to 150 lbs

This steel wall mount supports televisions from 42 to 98 inches with a maximum load of 150 lbs. It offers swivel, tilt, and horizontal shift for flexible positioning. The unique latching mechanism lets you attach or remove the TV quickly and securely. UL certification confirms the mount meets recognised safety standards.

Steel build with open wall plate and level adjust

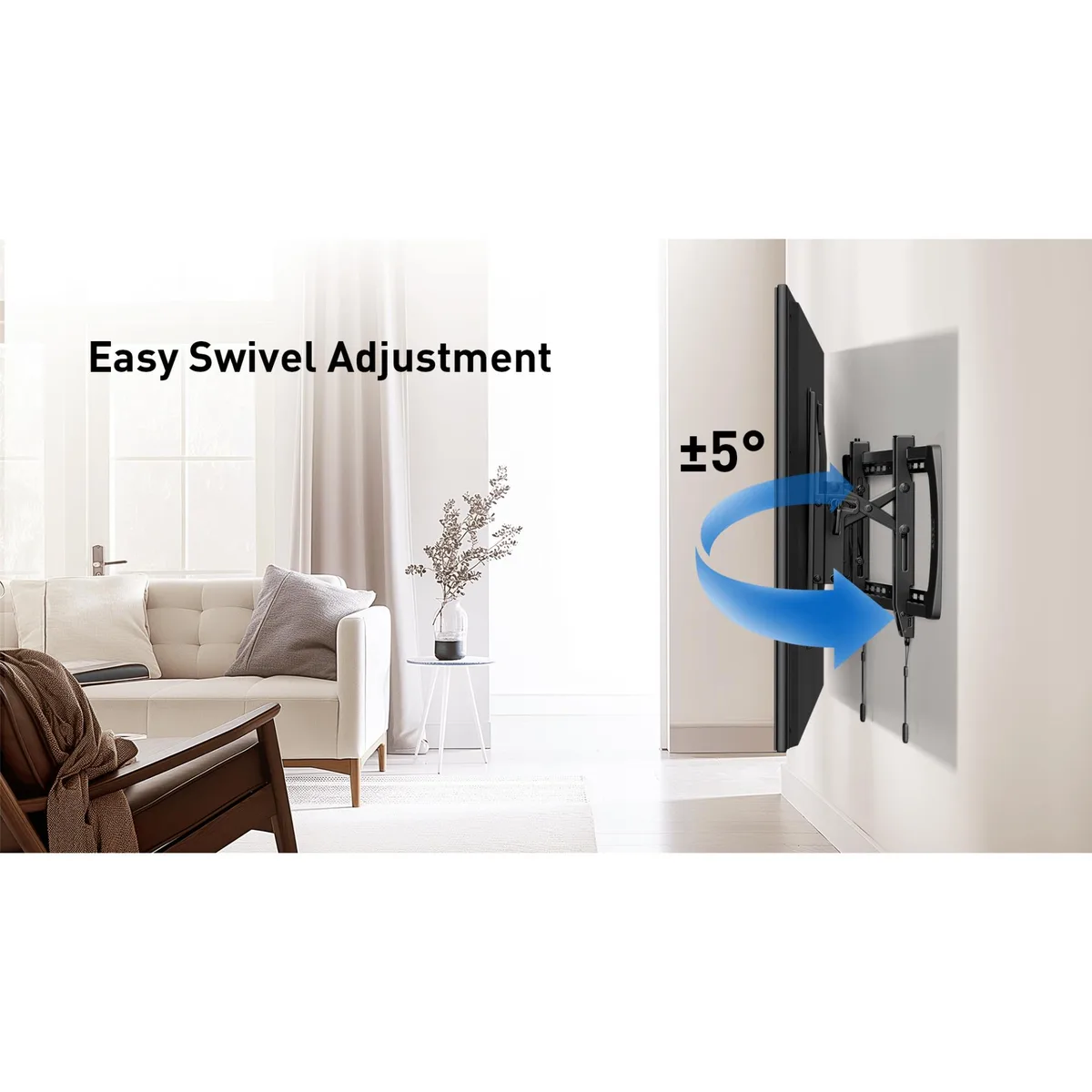

The black steel construction provides a rigid platform measuring 17 inches high, 31 inches wide, and 3 inches deep at a weight of 9.6 lbs. An open wall plate design accommodates outlets and low-voltage pass-through behind the screen. A ±2° level adjustment allows fine-tuning after installation without remounting. Swivel range is ±5° and tilt range is +5° to -15° for glare reduction.

Upgrades fixed or non-extending mounts for cable

This mount replaces fixed brackets that limit tilt range and make rear connections difficult. The extension function increases the tilting angle and gives clear access to cables and ports. Horizontal shift lets you centre the screen on the wall plate after the bracket is mounted. It is not suited for installations that require full-motion articulation beyond the stated swivel and tilt limits.

Highlights

  • Extension boosts tilt range and simplifies cable access
  • ±2° level adjustment fine-tunes viewing after install
  • Unique latch secures and releases TV quickly
  • Horizontal shift centres the screen on the wall
  • Open wall plate fits outlets and low‑voltage pass‑through

Specifications

BrandErgoAV
Part NumberERMTL7-01B
Install LocationWall
Mount StyleWall Mount
MaterialSteel
ColorBlack
MovableSwivel, tilt, and horizontal shift
TV Weight CapacityMax. load 150 lbs.
VESA CompatibleYes
Swivel Range±5°
Tilt Range+5°~ -15°
UL CertifiedYes
FeatureA unique latching mechanism allows the TV to be securely attached
Height17 In
Width31 In
Depth3 In
Weight9.6lbs

Questions about this item

What VESA standard does the ERMTL7-01B support, and what is the maximum TV weight it can hold?

The mount is VESA compatible and rated for a maximum load of 150 lbs.

What are the wall-plate dimensions and weight of the ERMTL7-01B, and does the open plate clear outlets?

The wall plate measures 17 in high by 31 in wide by 3 in deep, weighs 9.6 lbs, and its open design accommodates outlets and low-voltage pass-through.

How is the ERMTL7-01B attached to the TV, and which step is commonly missed?

A unique latching mechanism secures the TV to the wall plate; the step often missed is fully engaging the latch until it clicks to confirm the TV is locked in place.
