Black steel TV wall mount with extendable tilt arm and open wall plate, 34 by 17 inches

ErgoAV

ErgoAV ERMTL3-01B TV Mount 46-100" 160 lbs

SKU CH-6MST-ZR7B7

Wall mount holds 46-100" TVs up to 160 lbs with tilt, horizontal shift and ±3° level adjustment

  • Install LocationWall
  • Mount StyleWall Mount
  • MaterialSteel
  • ColorBlack
  • MovableTilt and horizontal shift
  • TV Weight CapacityMax. load 160 lbs.
  • Fits TVs from 46" to 100" up to 160 lbs
  • Extends 6.5" for cable access then retracts to 2.94
  • Tilts +3°/-15° to reduce glare and optimise viewing
  • ±3° level adjustment aligns the screen perfectly after installation
  • UL certified steel construction with pull-cord lock for secure mounting

ErgoAV ERMTL3-01B for 46-100 inch TVs

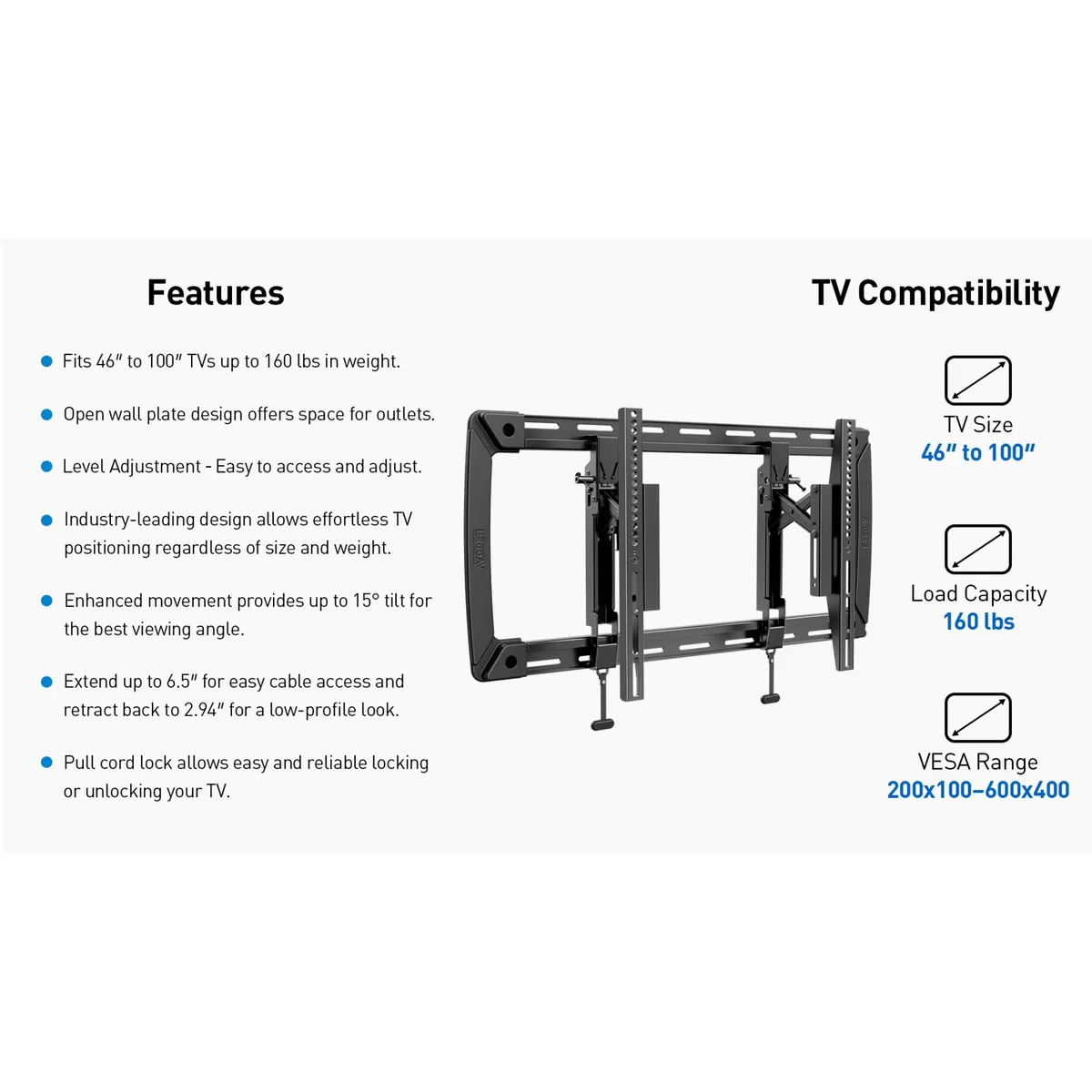

The ErgoAV ERMTL3-01B is a steel wall mount built for flat-panel TVs from 46 to 100 inches weighing up to 160 lbs. It suits living rooms, conference rooms or any space where a large display needs secure, adjustable positioning. The UL certified construction provides confidence for permanent installations.

Steel build with open wall plate and pull cord lock

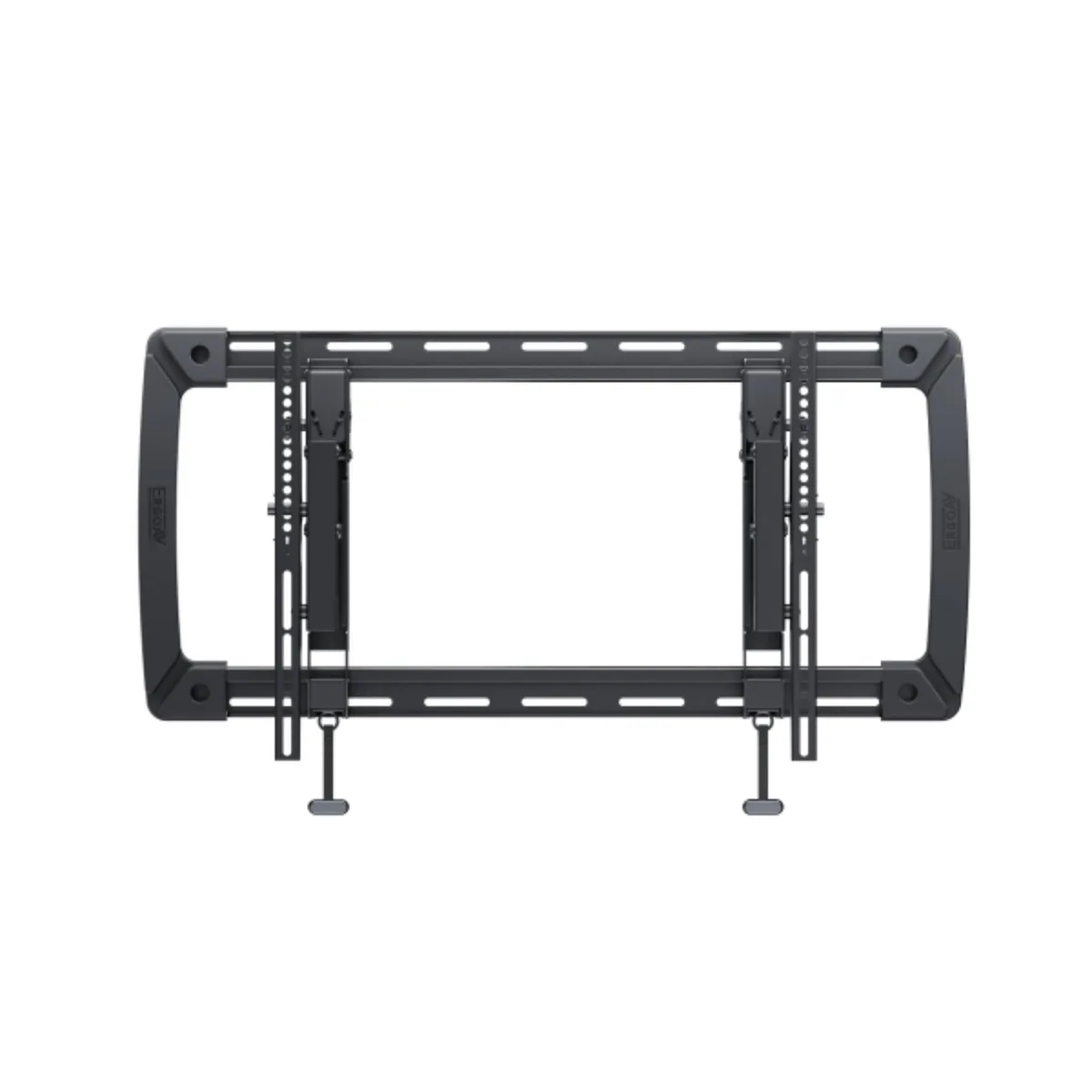

The black steel frame measures 34 inches high by 17 inches wide with a 3 inch depth and weighs 13.6 lbs. An open wall plate design leaves room for outlets and low-voltage pass-through behind the screen. A pull cord lock enables quick, reliable locking or unlocking of the TV without tools.

Extends 6.5 inches with tilt and horizontal shift

The mount extends up to 6.5 inches for cable access and retracts to 2.94 inches for a low-profile look. Tilt adjustment ranges from +3 to -15 degrees to reduce glare, while level adjustment of ±3 degrees and horizontal shift allow precise post-install alignment. This replaces fixed or limited-motion brackets when full articulation and easy servicing are required.

Highlights

  • Fits TVs from 46" to 100" up to 160 lbs
  • Extends 6.5" for cable access then retracts to 2.94
  • Tilts +3°/-15° to reduce glare and optimise viewing
  • ±3° level adjustment aligns the screen perfectly after installation
  • UL certified steel construction with pull-cord lock for secure mounting

Specifications

BrandErgoAV
Part NumberERMTL3-01B
Install LocationWall
Mount StyleWall Mount
MaterialSteel
ColorBlack
MovableTilt and horizontal shift
TV Weight CapacityMax. load 160 lbs.
Tilt Range+3 °/-15°
UL CertifiedYes
FeaturePull cord lock allows easy and reliable locking or unlocking of your TV
Height34 In
Width17 In
Depth3 In
Weight13.6lbs

Questions about this item

What is the tilt range of the ErgoAV ERMTL3-01B and what viewing angle does it cap at?

The mount tilts from +3° to -15°, letting you angle the screen downward up to 15 degrees to reduce glare or raise it slightly for a higher sight line.

What wall space and stud pattern does the 34-inch by 17-inch steel wall plate need for a secure install?

The 34-inch high by 17-inch wide steel plate spans multiple studs; its open design also clears outlets and low-voltage pass-through behind the TV.

How do you level the TV after hanging it, and which step do installers often skip?

Use the ±3° level-adjustment knob on the mount arms after the TV is hooked on; skipping this final tweak leaves the screen slightly crooked.
