ENVEL 16-Port HDMI USB KVM Switch 4K@30Hz IP54
Controls 16 computers from one keyboard and mouse with 4K@30Hz HDMI and USB 2.0, push-button or hot-key switching, and IP54-rated metal housing
- TypeKVM Switch
- Control 16 computers from one console with USB 2.0 keyboard and mouse
- Switch instantly via push buttons or keyboard hotkeys without software
- Rugged metal chassis rated IP54 resists dust and water splashes
- Auto-scan cycles through connected systems at preset intervals automatically
- Supports 3840×2160 resolution at 30 Hz over HDMI for sharp video
16-Port KVM for Rack Environments

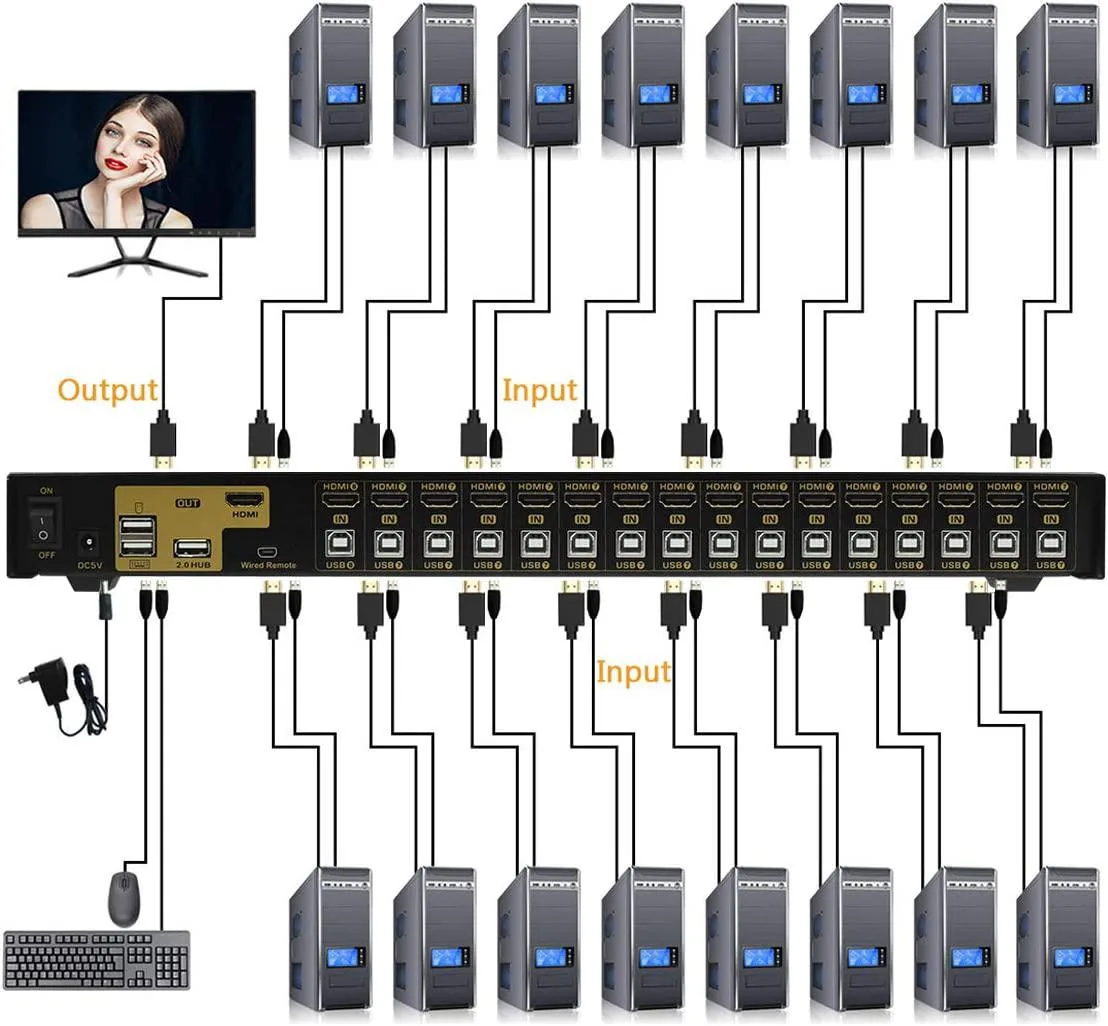

The ENVEL 16-port HDMI USB KVM switch lets administrators control up to 16 computers from a single keyboard, mouse and monitor console. It is built for server rooms and industrial settings where space is limited and multiple systems must be managed locally.
IP54-Rated Metal Chassis
A sealed metal enclosure rated IP54 protects internal circuitry from dust ingress and water splashes, a requirement in harsh equipment rooms or factory floors where standard plastic switches would fail. This physical rating is the decisive factor for deployment in those environments.

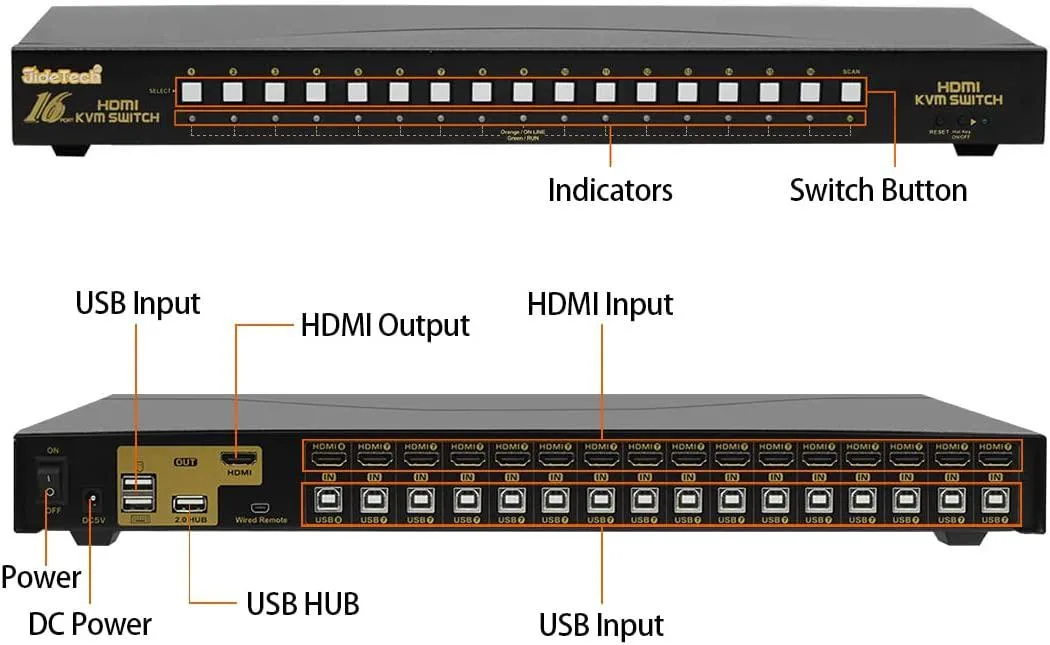

Hot-Key and Push-Button Switching
Operators can change the active port instantly using front-panel push buttons or programmable keyboard hot-keys without interrupting running workloads. An auto-scan mode cycles through connected systems at preset intervals for unattended monitoring.
Highlights
- Control 16 computers from one console with USB 2.0 keyboard and mouse
- Switch instantly via push buttons or keyboard hotkeys without software
- Rugged metal chassis rated IP54 resists dust and water splashes
- Auto-scan cycles through connected systems at preset intervals automatically
- Supports 3840×2160 resolution at 30 Hz over HDMI for sharp video
Specifications
| Type | KVM Switch |
|---|
Questions about this item
What does 4K@30Hz mean for the display connected to this KVM?
The switch passes video up to 3840x2160 resolution at 30 Hz, so a 4K monitor will show a full desktop at that refresh rate when any of the 16 sources is selected.
Which USB standard limits the keyboard and mouse hub on this unit?
The integrated hub follows the USB 1.1 and 2.0 specification, so keyboards and mice run at low or full speed; higher-speed USB 3.x peripherals will fall back to 2.0 rates.
How much depth does the 17.3 x 1.6 x 5.9 inch metal chassis need on a shelf or rack tray?
The unit is 17.3 inches deep, 1.6 inches high and 5.9 inches wide, so allow at least 17.3 inches of clear depth plus cable bend radius behind the HDMI and USB ports.
