Compact DIN-rail DMX gateway, matte grey enclosure, dual Ethernet ports, terminal blocks, status LEDs

ENTTEC

ENTTEC DIN Ethergate Mk2 POE 71031 2 Universe DMX Converter

SKU CH-JMWH-MJB6A

Ethernet-to-DMX gateway with two bi-directional universes, PoE power, DMX500K Overdrive Mode, and DIN-rail mounting

  • Web-based configuration simplifies commissioning from any networked computer
  • PoE or 12-24v DC power input offers flexible installation options

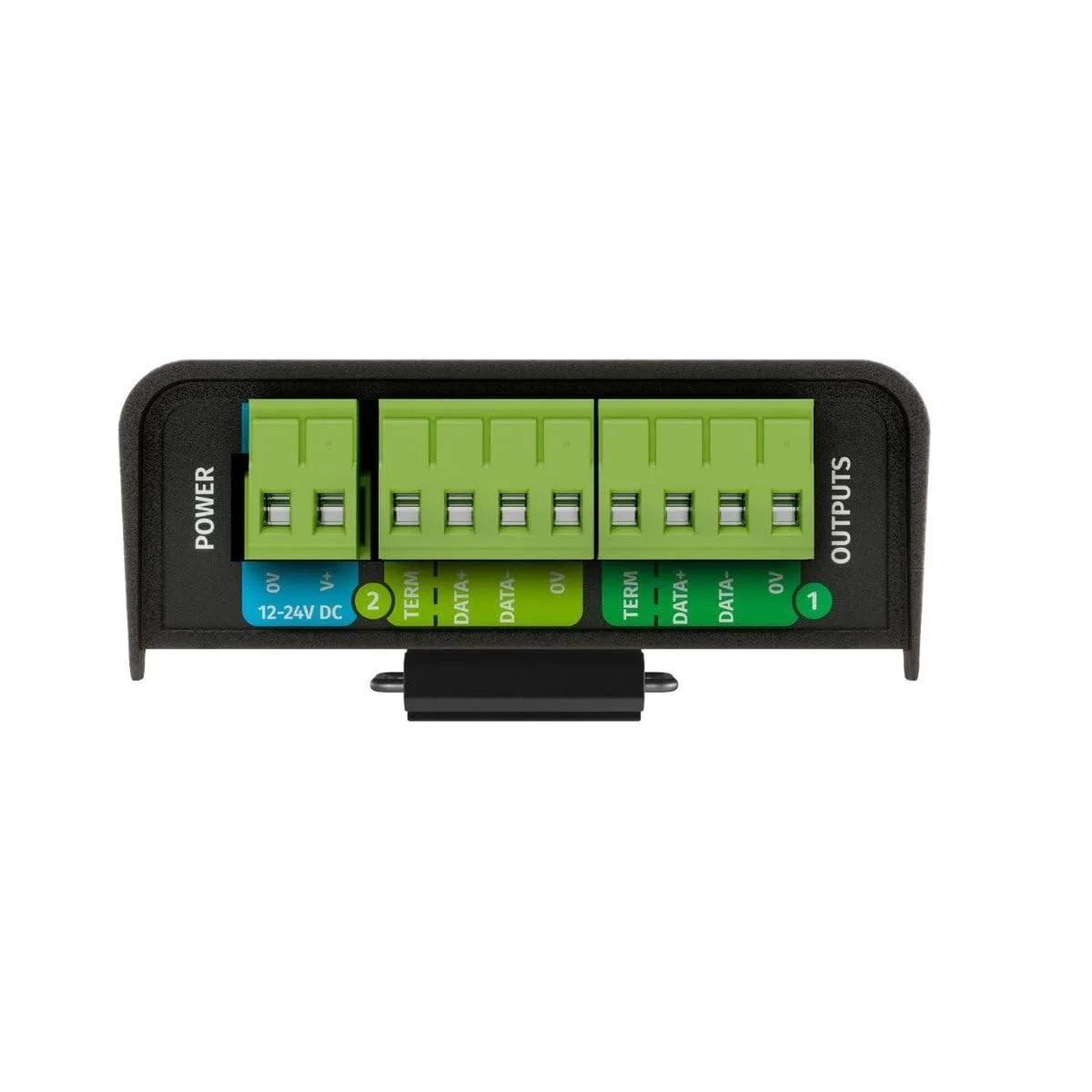

  • Pluggable terminals and built-in termination reduce wiring time on site

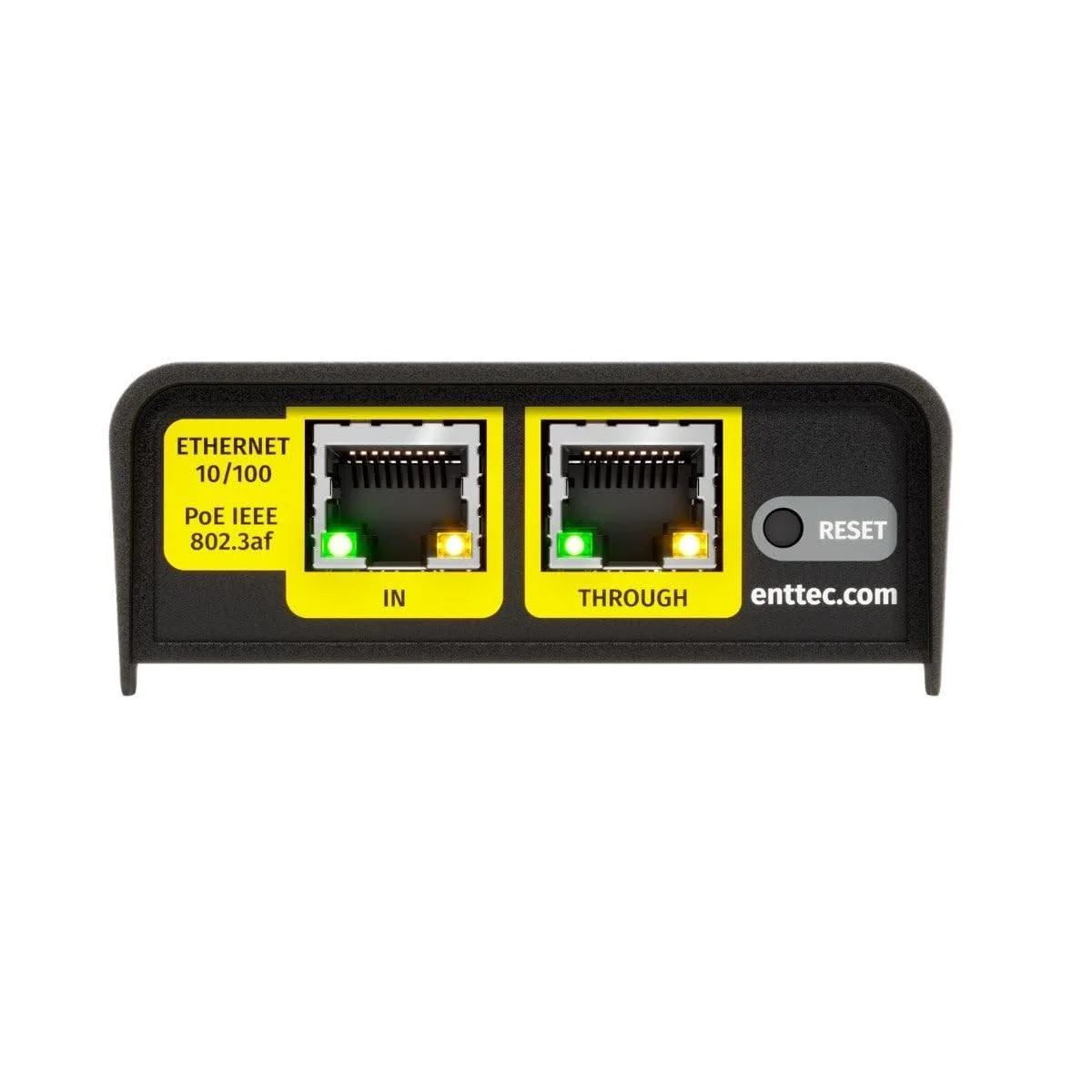

  • Dual Ethernet ports enable daisy-chaining for scalable network layouts
  • Overdrive mode supports 500Kbps data rate for up to 1024 channels per port

Product Identity

The ENTTEC DIN Ethergate Mk2 POE 71031 is a bi-directional Ethernet to dual DMX RDM converter designed for architectural, commercial and entertainment installations. It provides two universes of DMX512-A conversion with ArtRDM support for connecting physical fixtures to network infrastructure.

Bundled Impact

The unit includes pluggable terminal connectors and inbuilt DMX termination to simplify wiring tasks on site. Configuration and firmware updates are handled through a localhost web interface accessible from any networked computer, while a Current Port Buffer allows live DMX values to be viewed for troubleshooting.

Build and Connectivity

A slim 4 DIN-module electrically insulated housing supports TS35 DIN rail mounting for secure cabinet installation. Dual Ethernet ports enable daisy-chaining, with one port providing IEEE 802.3af PoE; subsequent daisy-chained devices require individual injectors. Power can also be supplied via DC 12-24v input.

Highlights

  • Web-based configuration simplifies commissioning from any networked computer
  • PoE or 12-24v DC power input offers flexible installation options
  • Pluggable terminals and built-in termination reduce wiring time on site
  • Dual Ethernet ports enable daisy-chaining for scalable network layouts
  • Overdrive mode supports 500Kbps data rate for up to 1024 channels per port

Specifications

No published specifications for this item yet.

Questions about this item

What power supply will the Ethergate Mk2 need after the PoE injector is installed?

The unit accepts DC 12-24 V input when PoE is not available, so a 12 V or 24 V supply on the terminal block is the only later replacement item.

How many DMX channels can each port handle before the 512-channel limit is reached?

In standard mode each port carries one universe of 512 channels; enabling Overdrive Mode with DMX500K fixtures raises the per-port capacity to 1 024 channels at 500 Kbps.

Does the DIN-rail housing get hot when the converter runs continuously on PoE?

The slim 35 mm DIN module is electrically insulated and designed for installation-grade use, so it dissipates heat passively without a fan during all-day operation.
