Black rectangular PoE injector with three ports and IEC power socket

EnGenius Technologies

EnGenius Technologies EPA5006GP 54V Gigabit PoE Adapter

SKU CH-Z3P5-RHVGB MPN EPA5006GP

A passive 54 V Gigabit PoE injector delivering up to 32.8 W over 100 m with wall-mount hardware included

  • TypePoE Injector
  • ColorBlack
  • SpecificationsStandards 802.3 10BaseT 802.3u 100BaseT 802.3ab Gigabit Ethe
  • FeaturesPassive 54V Gigabit Compatible Scalable installation by powe
  • Powers devices up to 100 metres away with a single cable
  • Delivers 54 V passive PoE at up to 32.8 W for compatible equipment
  • Gigabit Ethernet ports maintain full network speed while supplying power
  • Accepts 100 to 240 VAC input for worldwide use without a converter
  • Compact 1.30 x 3.90 x 2.27 inch enclosure mounts on walls with included hardware

Single-Port Gigabit PoE Injector

The EnGenius EPA5006GP is a passive 54 V injector that delivers data and power over one Gigabit Ethernet cable. It suits installers who need to place wireless access points or IP cameras up to 100 meters from a mains outlet without running separate power lines. The compact black housing mounts on a wall with included anchors and screws.

Passive 54 V output on pins 4, 5 and 7, 8

This adapter supplies a fixed 54 V on the spare pairs, providing up to 32.8 W to compatible devices. It accepts 100 to 240 VAC at 47 to 63 Hz with a maximum input current of .8 A at 100 VAC. Only equipment designed for proprietary passive PoE at this voltage should be connected.

Sustained operation in 0 to 40 °C ambient

The unit is rated for continuous use at temperatures up to 40 °C with 5 to 90 % non-condensing humidity. A single green LED confirms power status. No internal fan is present, so heat dissipates through the enclosure during long-term deployment.

Highlights

  • Powers devices up to 100 metres away with a single cable
  • Delivers 54 V passive PoE at up to 32.8 W for compatible equipment
  • Gigabit Ethernet ports maintain full network speed while supplying power
  • Accepts 100 to 240 VAC input for worldwide use without a converter
  • Compact 1.30 x 3.90 x 2.27 inch enclosure mounts on walls with included hardware

Specifications

BrandEnGenius
ModelEPA5006GP
TypePoE Injector
ColorBlack
SpecificationsStandards
802.3 10BaseT
802.3u 100BaseT
802.3ab Gigabit Ethernet
Proprietary PoE
Physical Interface
1) Gigabit Data Port
(1) Gigabit Data & Power Output Port

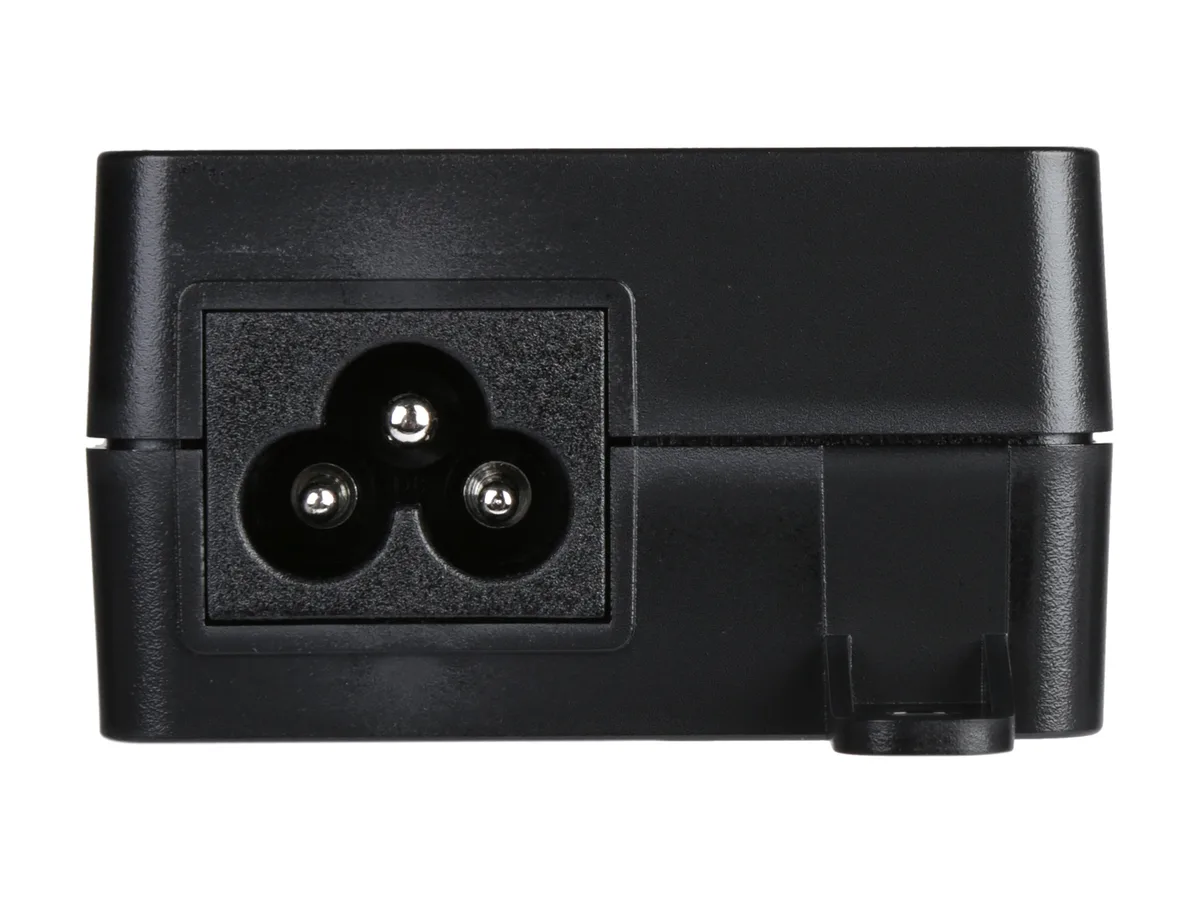

(1) IEC-320 C6 AC Connector
Power
Input voltage : 100 to 240 VAC
Input current: 0.8A maximum for 100 VAC
AC input Frequency: 47-63Hz
Maximum output power: 32.8W
Pin4, 5:54V; Pin7, 8: Return
Temperature Range
Operating: 32 degree F to 104 degree F (0 degree C to 40 degree C)
Storage: -22 degree F to 176 degree F (-30 degree C to 80 degree C)
Humidity (non-condensing)
Operating: 5 to 90% or less
Storage: 5 to 90% or less
LED Indic
FeaturesPassive 54V
Gigabit Compatible
Scalable installation by powering devices from up to
100 meter (328 feet) away
Eliminate the installing cost and time easily
Shipping weight0.23 kg
Package size137 × 124 × 51 mm

Questions about this item

What does the 32.8 W output mean for a device connected to this adapter?

It supplies up to 32.8 W at 54 V over the data cable, so a single PoE device such as an access point or camera can run without a local power outlet.

Which Ethernet standard limits the data speed on the Gigabit ports?

The ports follow 802.3ab Gigabit Ethernet, capping the link at 1 Gbps in each direction.

How much clearance is needed to wall-mount the unit with the included anchors and screws?

The housing measures 1.30" high, 3.90" wide and 2.27" deep, so allow at least that footprint plus cable bend radius.
