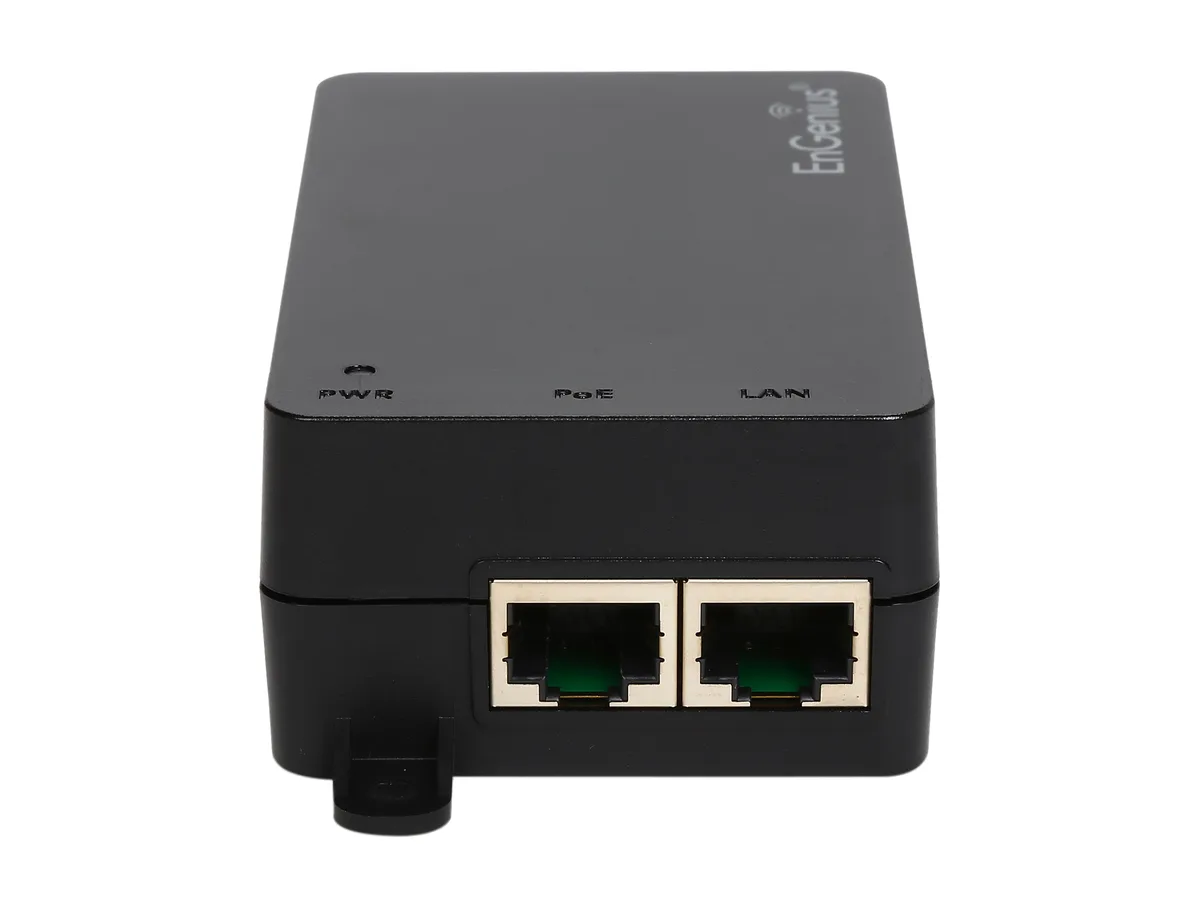

Black rectangular PoE injector with two RJ45 ports and C6 power inlet

EnGenius Technologies

EnGenius Technologies EPA5006GAT 30W Gigabit PoE Injector

SKU CH-VB1C-78F2H MPN EPA5006GAT

Delivers up to 30W of power and data over a single Gigabit Ethernet cable to compatible devices up to 100 meters away

  • TypePoE Injector
  • ColorBlack
  • SpecificationsStandards 802.3 10BaseT 802.3u 100BaseT 802.3ab Gigabit Ethe
  • FeaturesFully 802.3at / af Compliant Gigabit Compatible Scalable ins
  • Powers devices up to 100 metres away with 30W PoE+
  • Gigabit data and power through a single RJ-45 port
  • Works worldwide on 100–240 VAC input

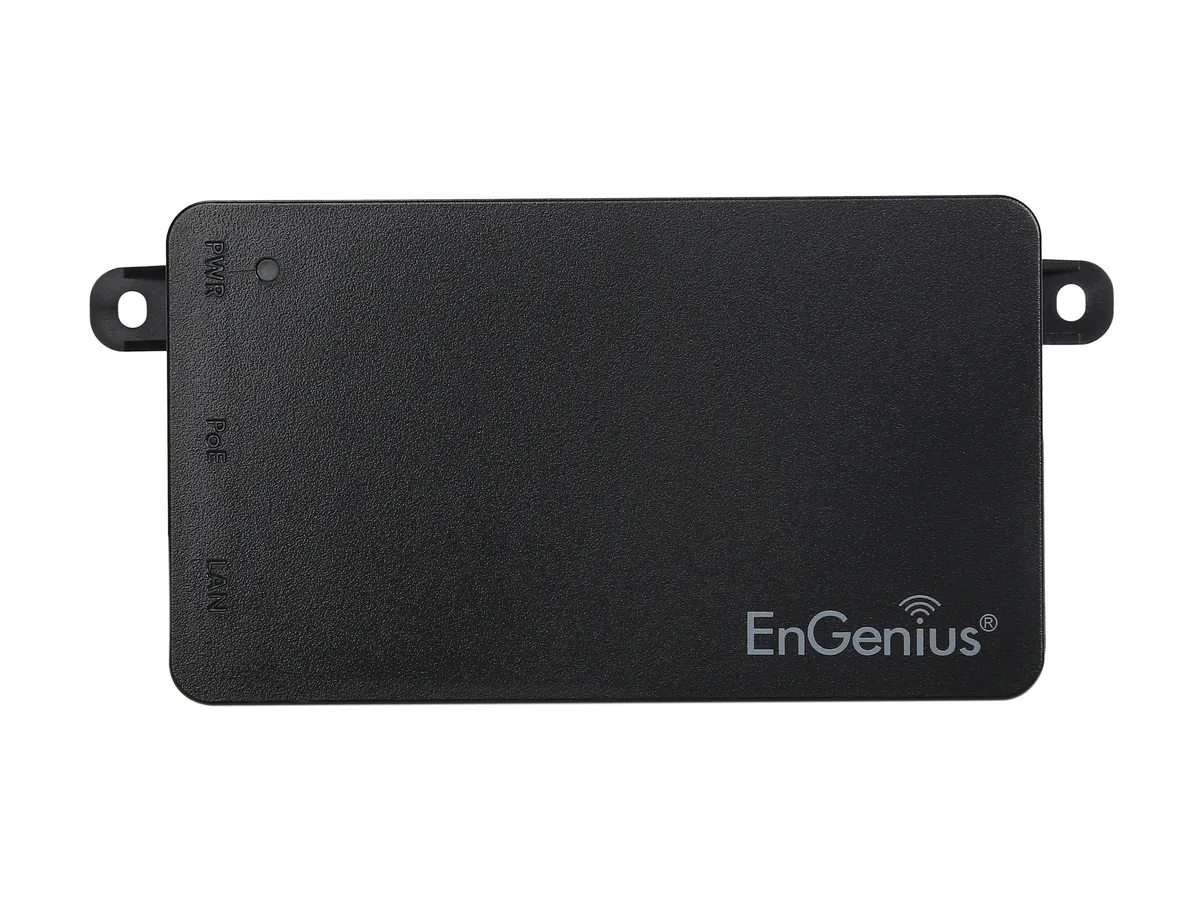

  • Compact wall-mount design with included anchors and screws
  • IEEE 802.3at/af compliant for broad device compatibility

Single-port 30 W PoE injector

The EnGenius EPA5006GAT supplies up to 30 W of power over a single Gigabit Ethernet cable. It accepts 100 to 240 VAC at 47-63 Hz and delivers 54 V on pins 4, 5 with return on pins 7, 8. The unit measures 1.30" x 3.90" x 2.27" and includes wall-mount anchors and screws.

Installers needing one powered drop

This injector suits projects that require a single 802.3at or 802.3af device up to 100 meter (328 feet) from the power source. It is not for deployments that need multiple powered ports, managed PoE switching, or power budgets above 30 W per port.

Steady output within rated thermal limits

Continuous operation is specified from 0 degree C to 40 degree C with humidity up to 90 % non-condensing. The green power LED confirms the injector remains active while supplying a connected access point, camera or VoIP phone at full 30 W load.

Highlights

  • Powers devices up to 100 metres away with 30W PoE+
  • Gigabit data and power through a single RJ-45 port
  • Works worldwide on 100–240 VAC input
  • Compact wall-mount design with included anchors and screws
  • IEEE 802.3at/af compliant for broad device compatibility

Specifications

BrandEnGenius
ModelEPA5006GAT
TypePoE Injector
ColorBlack
SpecificationsStandards
802.3 10BaseT
802.3u 100BaseT
802.3ab Gigabit Ethernet
802.3at / af Power-over-Ethernet
Physical Interface
(1) Gigabit Data Port
(1) Gigabit Data & Power Output Port

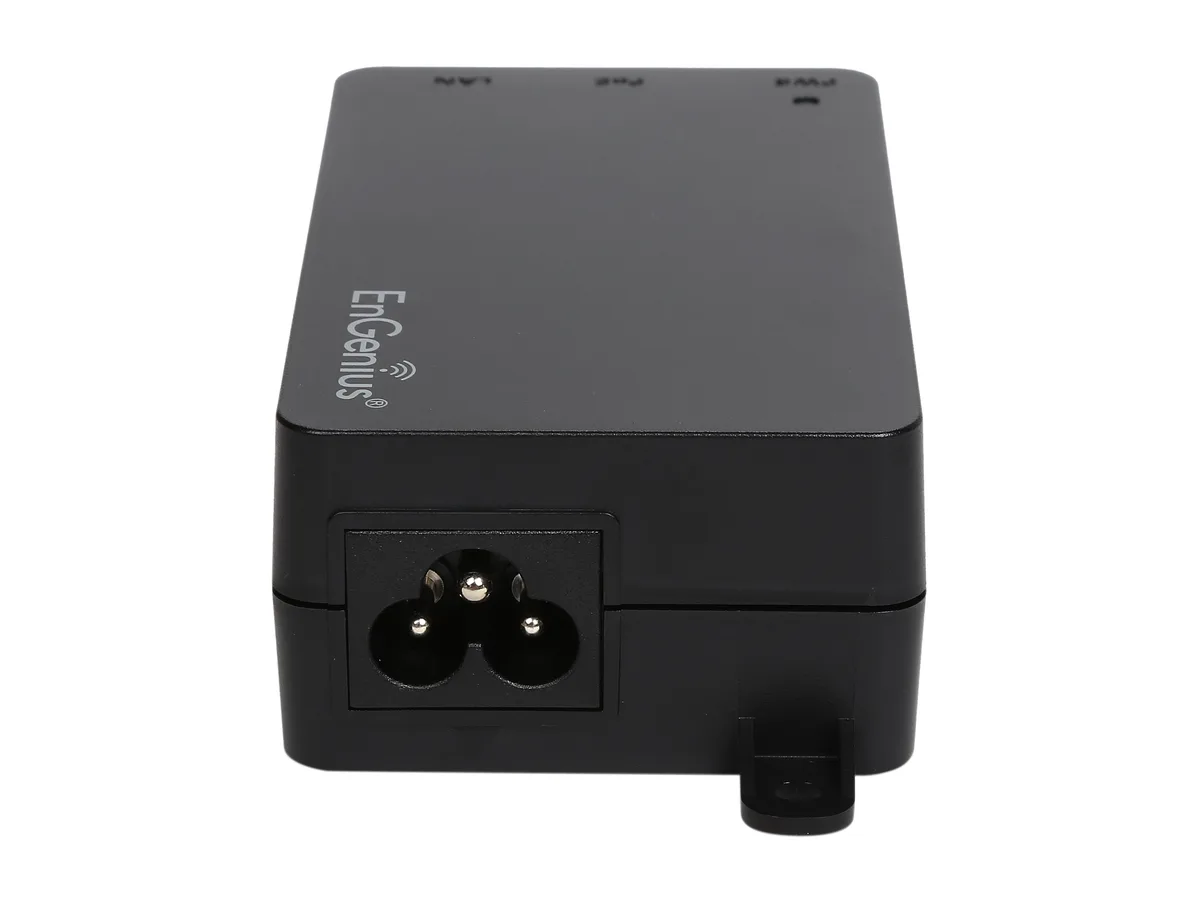

(1) IEC-320 C6 AC Connector
Power
Input voltage : 100 to 240 VAC
Input current: 0.8A maximum for 100 VAC
AC input Frequency: 47-63Hz
Maximum output power: 30W
Pin4, 5:54V; Pin7, 8: Return
Temperature Range
Operating: 32 degree F to 104 degree F (0 degree C to 40 degree C)
Storage: -22 degree F to 176 degree F (-30 degree C to 80 degree C)
Humidity (non-condensing)
Operating: 5 to 90% or less
Storage: 5 to 90% o
FeaturesFully 802.3at / af Compliant
Gigabit Compatible
Scalable installation by powering devices from up to 100 meter (328 feet) away
Eliminate the installing cost and time easily
Shipping weight0.27 kg
Package size152 × 124 × 51 mm

Questions about this item

What type of AC plug does the EPA5006GAT require for mains power?

It uses an IEC-320 C6 connector, so you need a matching C5 cable or adapter to connect it to a wall outlet.

Will the injector pass data to a 100BaseT access point without forcing Gigabit speeds?

Yes, it supports 802.3u 100BaseT and 802.3 10BaseT, so older devices negotiate their native speed while still receiving power.

Which LED confirms the injector is delivering PoE to a connected device?

The single green Power LED lights when the unit is on, indicating that voltage is present on the Data & Power Output Port.
