Enerlites HET01-C 120V 15A 18-setting digital timer switch 2-pack
A 120 V, 15 A digital timer switch with 18 programmable on/off settings for lights, fans, motors and sprinklers, supplied as a two-pack
- TypeWall Mount, Wire Leads, Without Backlight
- Voltage12
- Amps15
- Compatibility/Fitmentlights, fans, motors, sprinklers
- Pole ConfigurationThrough Hole
- Horsepower1800 watts
- 18 on/off schedules automate lights, fans and motors
- Ni-MH backup battery keeps programs during power cuts
- Random mode simulates occupancy for security while away
- Fits standard 1-gang box with neutral wire required
- UL/CUL listed for 15 A, 1800 W resistive loads

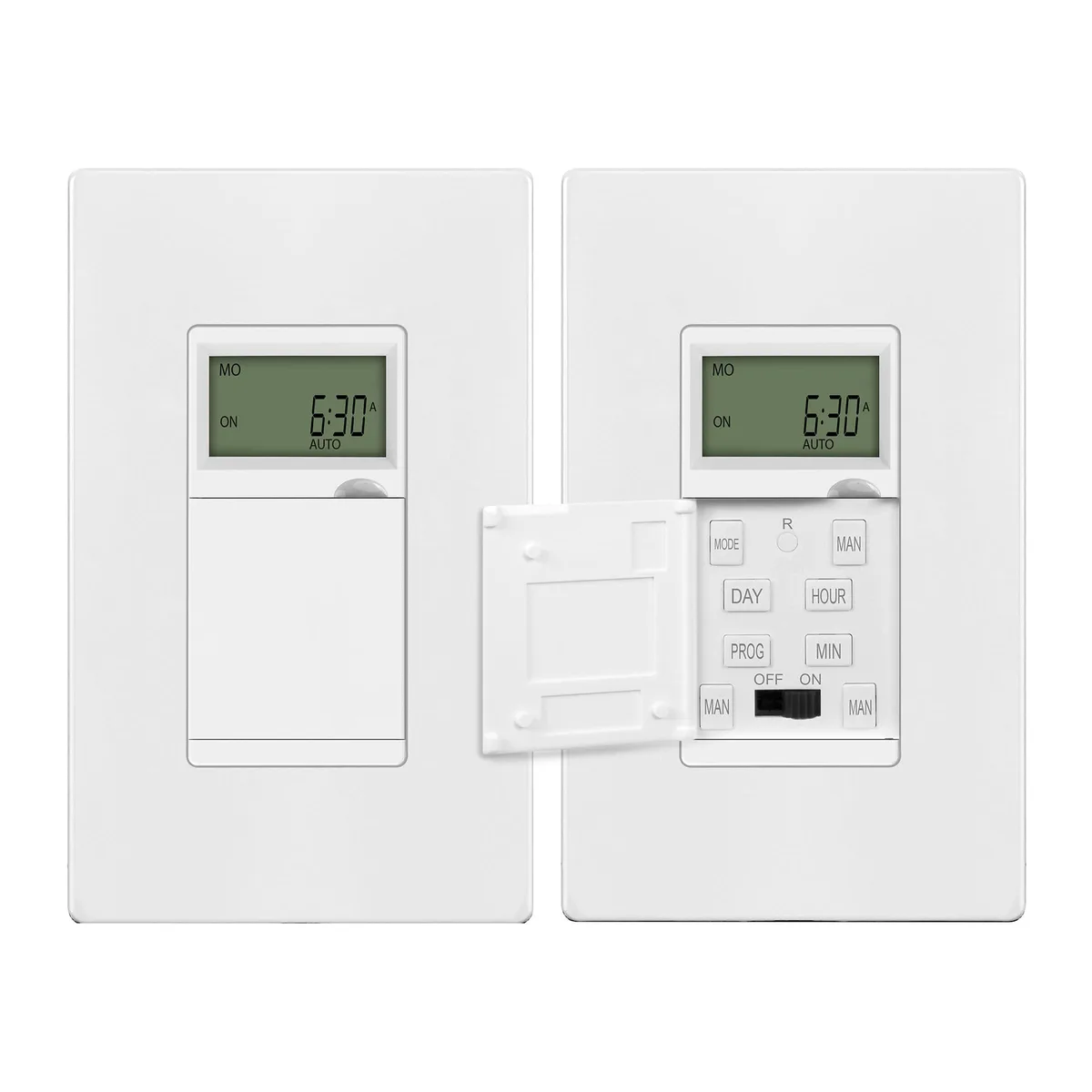

2-Pack Digital Timer Switch for Lights and Motors
This two-pack provides programmable wall-mounted timer switches rated at 120 volts and 15 amps. Each unit handles resistive loads up to 1800 watts and motor loads up to 1/2 HP. They are designed for single-pole circuits controlling indoor or outdoor lighting, fans, sprinklers, and small motors. The switches carry UL and CUL listings for safety compliance.
Check for Neutral Wire and Single-Pole Wiring

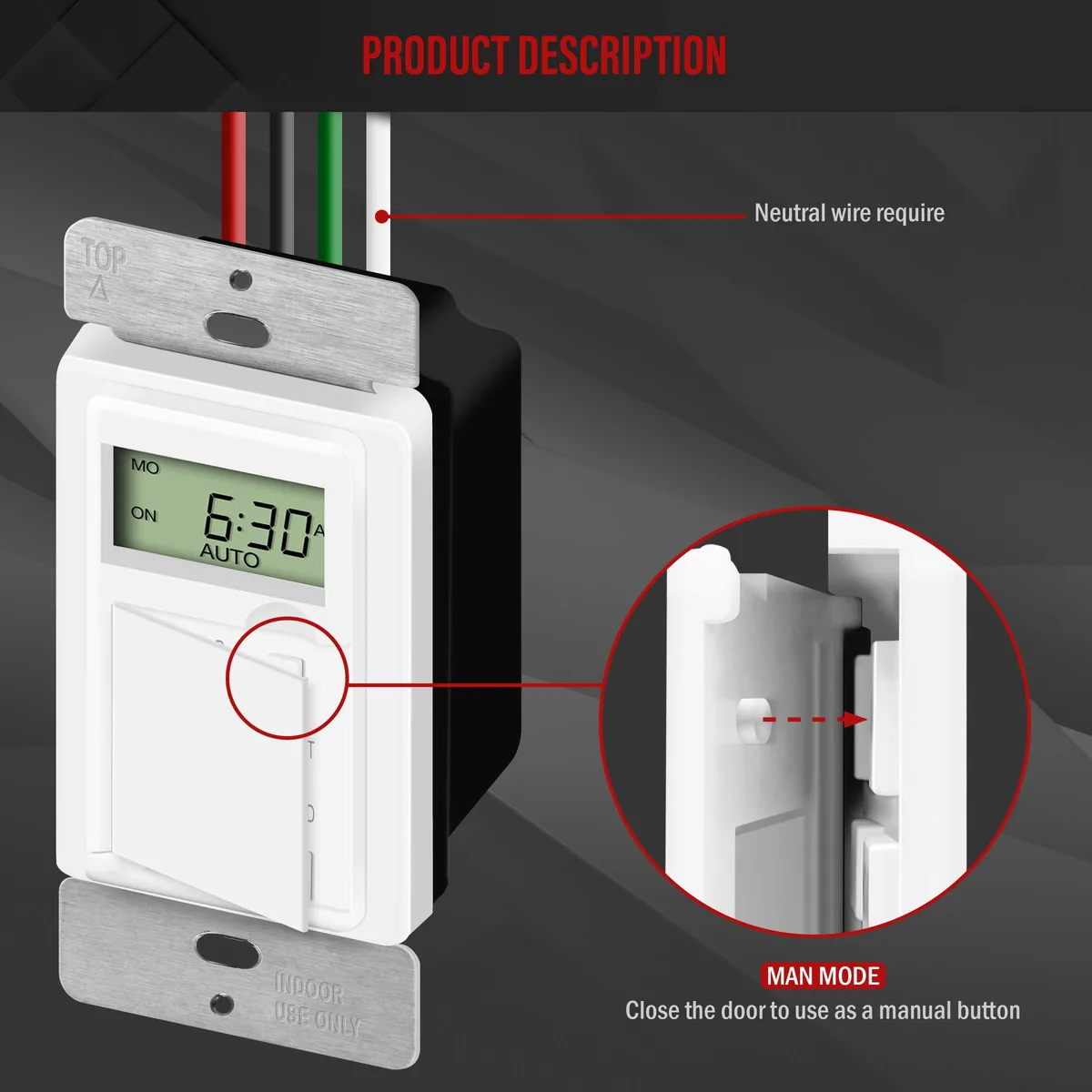

Installation requires a neutral wire in the wall box and a single-pole circuit configuration. Verify that your existing wiring includes a neutral conductor before ordering, as the switch will not function without it. The device fits a standard 1-gang electrical box and operates on 60 Hz AC power. It is rated for an operating temperature range of 32 to 131 degrees Fahrenheit.
18 On/Off Settings with Battery Backup

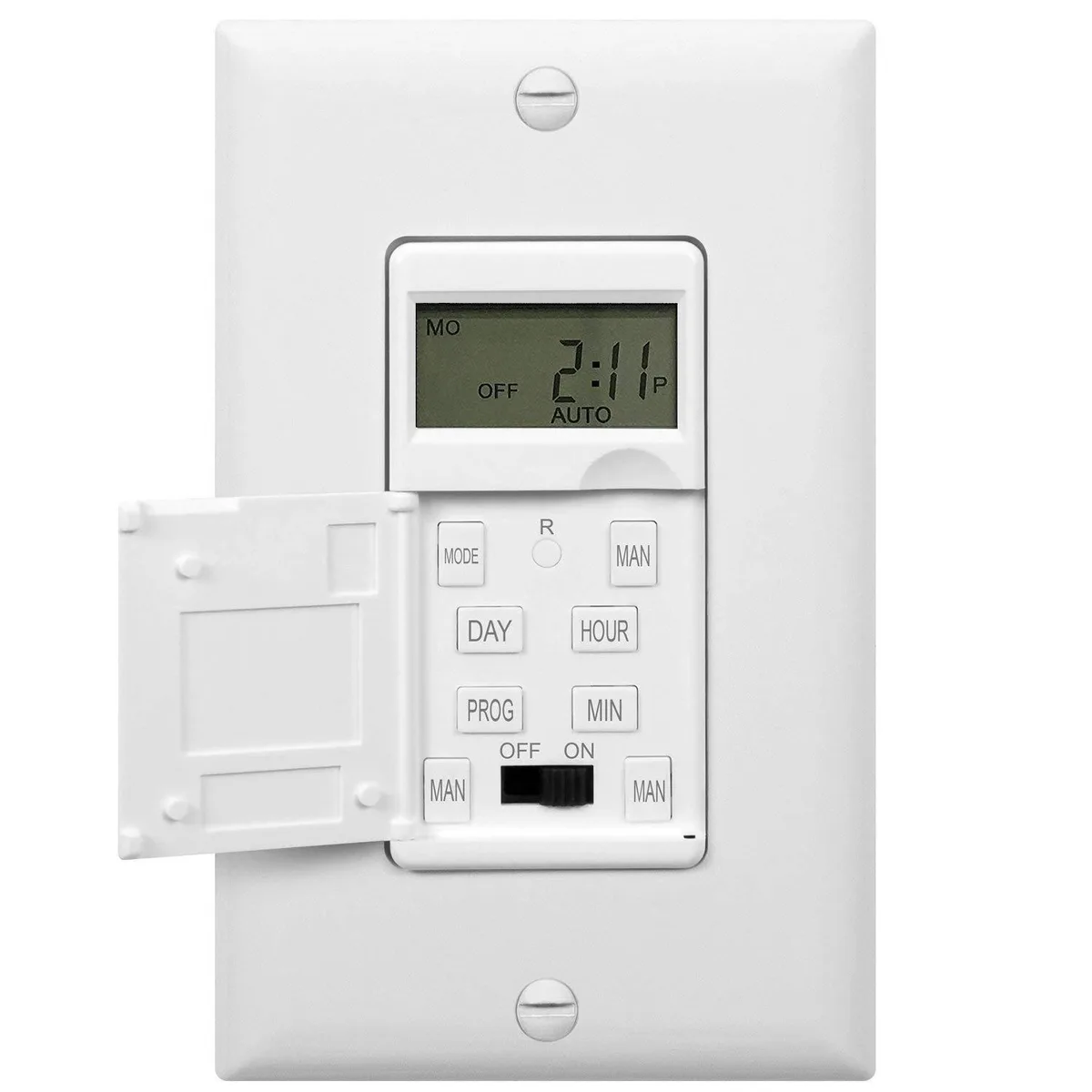

Each switch allows up to 18 separate on/off programs across a seven-day schedule. A built-in Ni-MH battery preserves programmed settings during power outages, and an RCL function recalls the last configuration. The timer cover acts as a manual override button, and a random mode varies switching times to simulate occupancy while away. A wall plate is included in the package.
Highlights
- 18 on/off schedules automate lights, fans and motors
- Ni-MH backup battery keeps programs during power cuts
- Random mode simulates occupancy for security while away
- Fits standard 1-gang box with neutral wire required
- UL/CUL listed for 15 A, 1800 W resistive loads
Specifications
| Type | Wall Mount, Wire Leads, Without Backlight |
|---|---|
| Voltage | 12 |
| Amps | 15 |
| Compatibility/Fitment | lights, fans, motors, sprinklers |
| Pole Configuration | Through Hole |
| Horsepower | 1800 watts |
| Watts | 1800 watts |
| Number of Receptacles | Without Backlight, HET01-C |
| Receptacle Type | 15 amps, 120 volts_of_alternating_current |
| Size/Dimensions | 1.7 in x 1.47 in x 2.75 in |
| Color/Finish | White |
| Style | Wire Leads |
| Switch Type | Toggle |
| Number of Poles | 1-way |
| Contact Form | 1-way |
| Enclosure Type | IP65, Wall Mount |
| Input Voltage | 120 volts_of_alternating_current |
| Mounting | Wall Mount |
| Operating Temperature Range | 32 degrees_fahrenheit to 131 degrees_fahrenheit |
| Features | lights, fans, motors, sprinklers |
| Brand | ENERLITES |
| Model | HET01-C |
| Item Count | 12 pack |
| Selling Unit | Without Backlight |
| Commercial/Residential | lights, fans, motors, sprinklers |
| Parts | 3-year manufacturer. |
| Labor | 3-year manufacturer. |
| Part Number | HET01-C-2PCS |
Questions about this item
Does the 2-pack include a wall plate or do I need to buy one separately?
Each timer switch comes with a wall plate included in the box. No separate purchase is required for installation.
The listing shows 18 on/off settings — is that total or per day?
The HET01-C provides 18 programmable on/off settings across the full 7-day schedule, not per day.
What does the 1800-watt rating mean for my LED lights and bathroom fan?
The 1800 W resistive rating covers most LED lighting circuits; the motor rating is 1/2 HP at 120 VAC for fans and similar loads.
