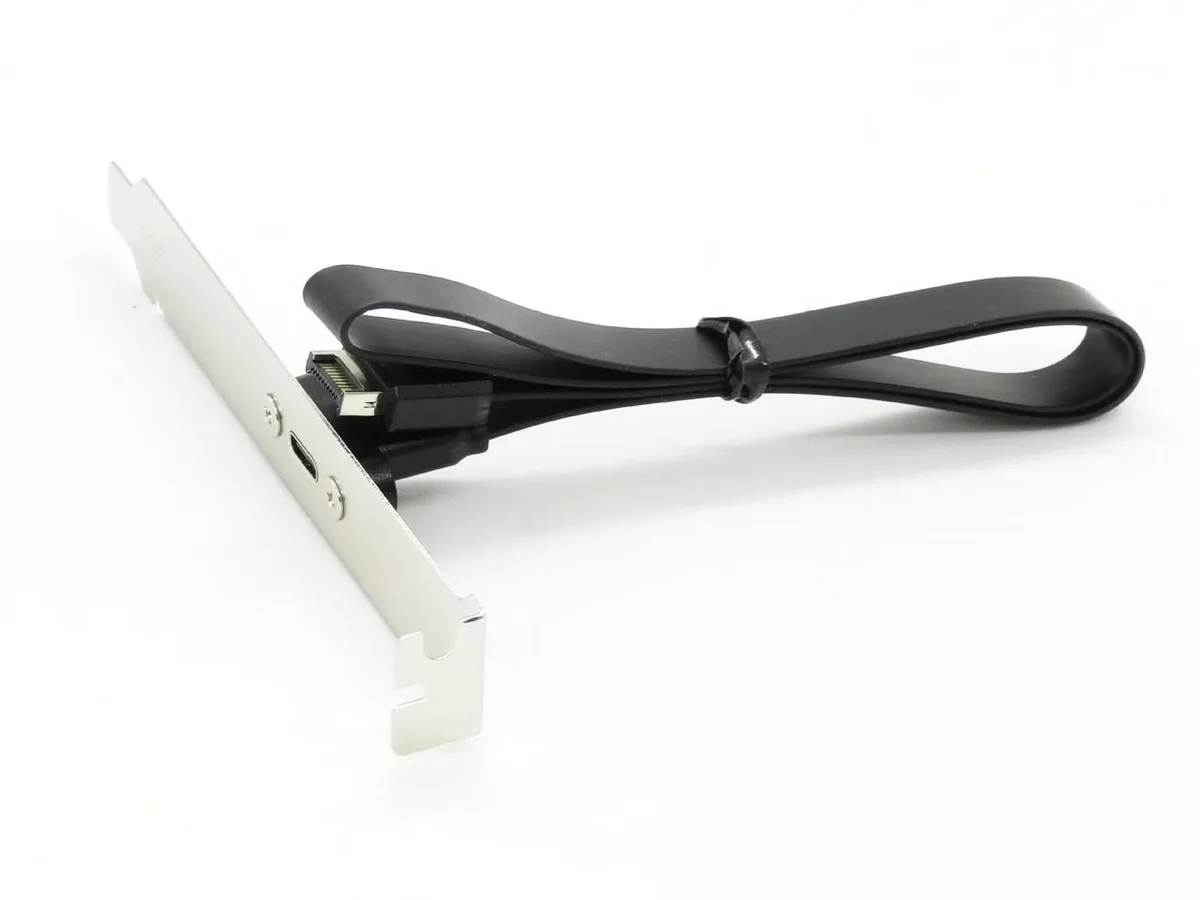

Black flat cable with USB-C female port on metal PCIe bracket, 1.64FT

EN-Labs

EN-Labs 20Gbps USB 3.2 Gen 2x2 Type-E to USB-C Flat Cable with PCIe Bracket 1.64FT

SKU CH-7MJA-8BE7P

Adds a front-panel USB-C port at 20 Gbps using an internal Type-E header and PCIe bracket

  • ColorBlack
  • TypeUSB
  • StandardsUSB 3.2
  • Ports1
  • Transfer Rate20 Gbps
  • Adds a front-panel USB-C port via internal Type-E header
  • 20 Gbps data transfer with USB 3.2 Gen 2x2 standard
  • Works with existing 10 Gbps and 5 Gbps USB devices
  • Delivers up to 5V/3A power for charging phones or drives
  • Installs cleanly using the included full-profile PCIe bracket

Internal USB 3.2 Type-E to USB-C adapter

This flat cable converts a motherboard internal USB 3.2 Type-E 20-pin header to an external USB-C female port. It is built for PC builders who want a front-panel or rear-bracket USB-C connection without replacing the motherboard. The assembly includes a full-profile PCIe bracket cover for standard case mounting. Data transfer reaches 20 Gbps under USB 3.2 Gen 2x2.

Installation notes and common issues

The cable plugs directly into the Key-A 20-pin header and secures with the supplied bracket screws; no drivers are required. Builders must verify the motherboard actually provides a USB 3.2 Type-E header, otherwise the connector will not fit. The flat cable measures 1.64FT, so routing space inside compact chassis should be checked before starting.

Deciding specification — 20 Gbps USB 3.2 Gen 2x2

The single figure that determines suitability is the 20 Gbps transfer rate delivered by USB 3.2 Gen 2x2. The link drops to 10 Gbps or 5 Gbps when connected to slower hosts or devices. It supplies up to 5V/3A for charging but does not carry DisplayPort Alt Mode or Thunderbolt video signals. Buyers needing video output or Thunderbolt connectivity should choose a different adapter.

Highlights

  • Adds a front-panel USB-C port via internal Type-E header
  • 20 Gbps data transfer with USB 3.2 Gen 2x2 standard
  • Works with existing 10 Gbps and 5 Gbps USB devices
  • Delivers up to 5V/3A power for charging phones or drives
  • Installs cleanly using the included full-profile PCIe bracket

Specifications

ColorBlack
TypeUSB
StandardsUSB 3.2
Ports1
Transfer Rate20 Gbps

Questions about this item

How can I verify the cable is delivering 20 Gbps after connecting it to my motherboard's Type-E header?

Connect a USB 3.2 Gen 2x2 storage device and check that your operating system reports a 20 Gbps link speed; the cable is backward-compatible with 10 Gbps and 5 Gbps devices, so slower negotiation means the device or port is limiting the rate.

What comes in the box and do I need any extra parts to mount the bracket?

The package includes the 1.64 ft flat cable with a panel-mounted USB-C female connector and a full-profile PCIe bracket cover; no additional screws or adapters are required for standard case installation.

Should I choose this 20 Gbps model or a 10 Gbps version for my USB 3.2 Gen 2x2 motherboard header?

Select this 20 Gbps cable to match the Gen 2x2 header; it will also work with Gen 2 10 Gbps and Gen 1 5 Gbps headers, but a 10 Gbps cable would cap the faster header at half speed.
