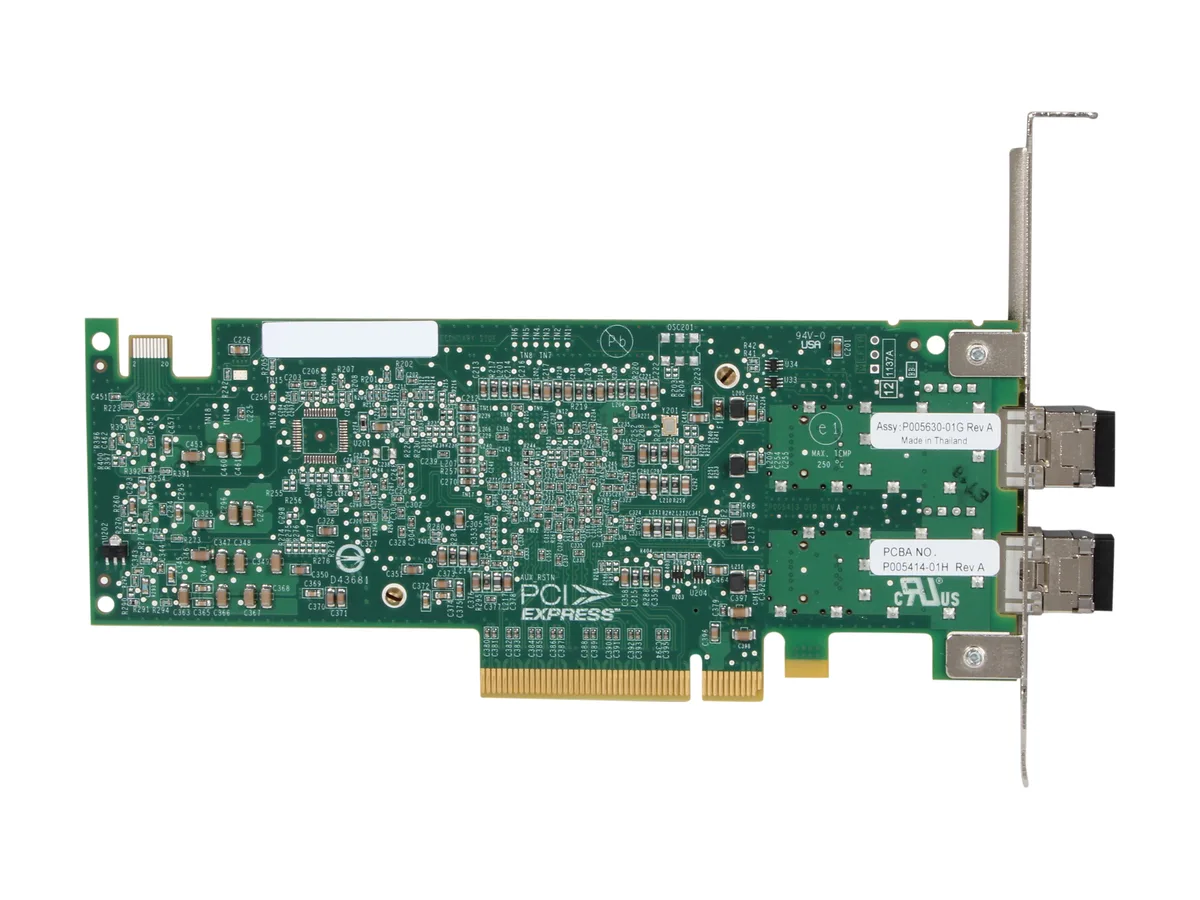

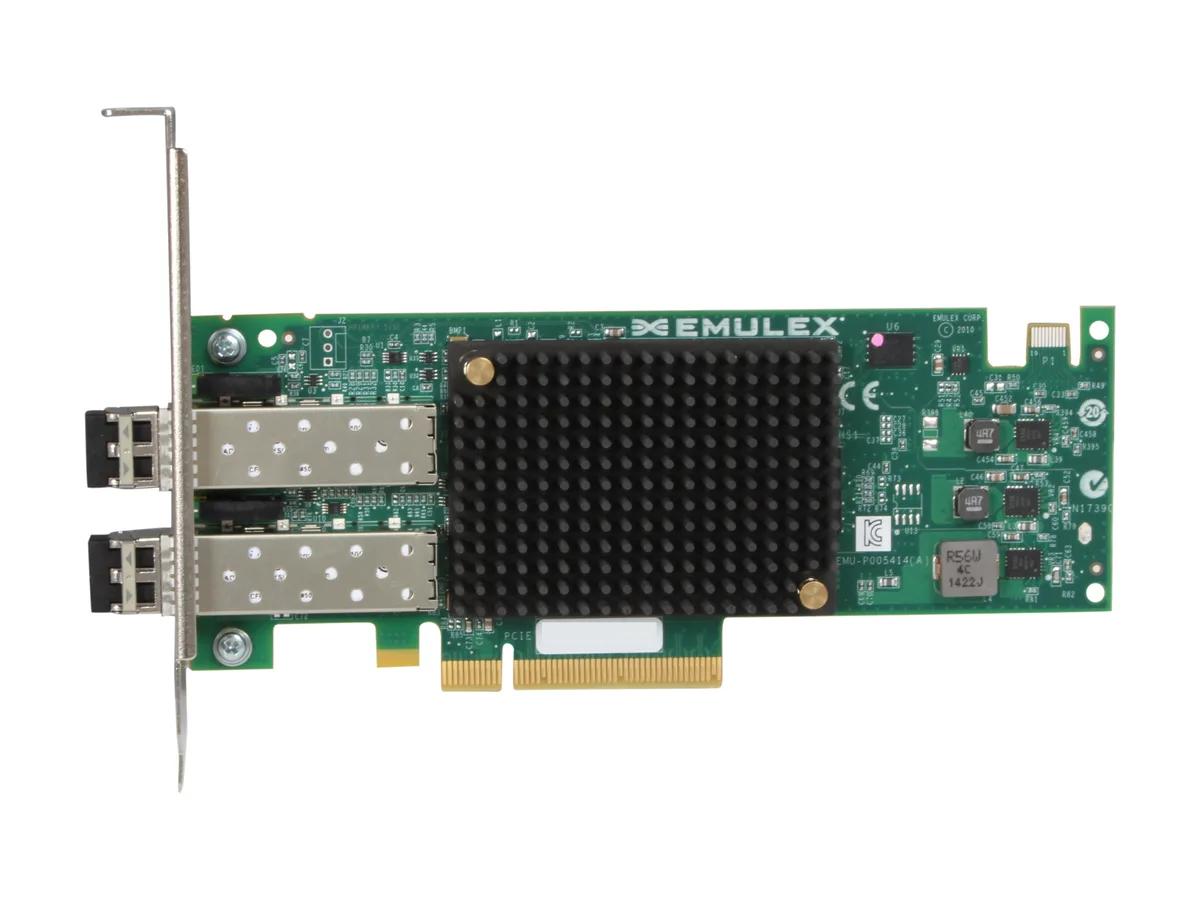

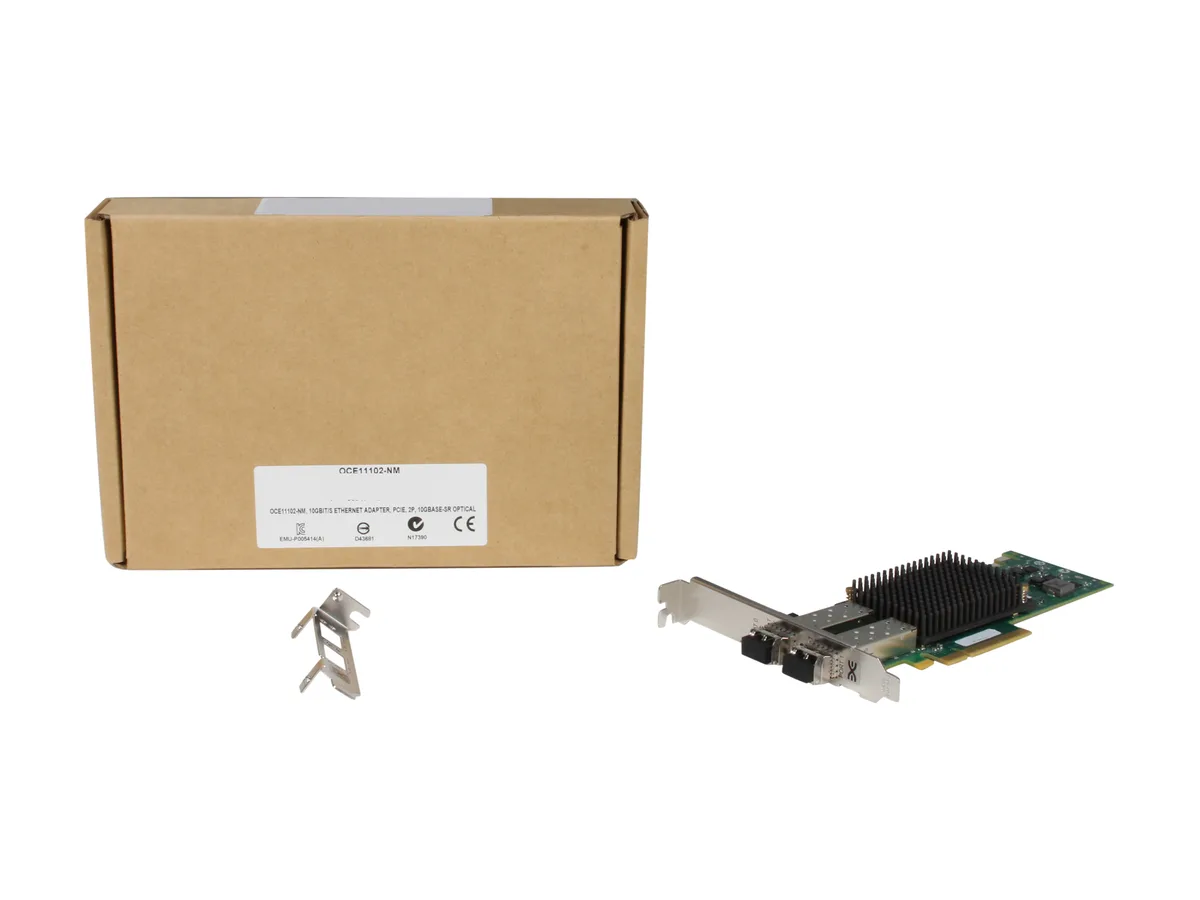

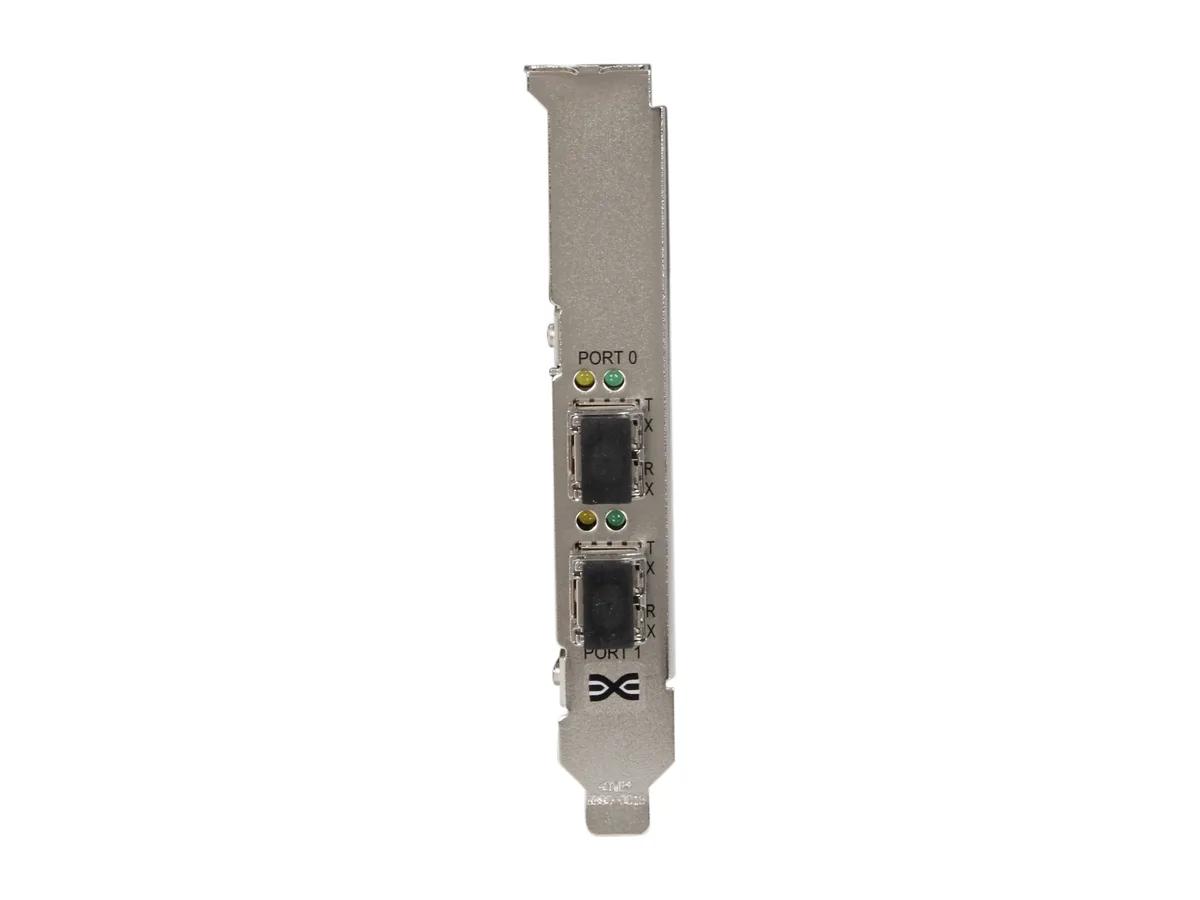

Emulex OCe11102-NM dual-port 10Gbps network card, low-profile PCIe x8, two LC optical ports

Emulex

Emulex OCe11102-NM dual-port 10Gbps network card

SKU CH-G3P0-WWN7V MPN OCe11102-NM

A dual-port 10Gbps network adapter with PCIe 2.0 x8 interface and LC optical connectors for short-reach fibre links

  • StandardsPCI Express base spec 2.0, PCI Bus Power Management Interfac
  • Speed10Gbps
  • Connectors10GBASE-SR short wave lasers with LC type connector
  • InterfacePCIe Express 2.0 x8
  • Temperature0°C ~ 55°C
  • Humidity5 % ~ 95 % (Non-condensing)
  • Dual 10Gbps ports deliver high-throughput connectivity
  • PCIe 2.0 x8 interface provides ample bandwidth headroom
  • 10GBASE-SR LC optics enable short-reach fibre links
  • TCP/IP and Chimney offloads reduce CPU utilisation
  • SR-IOV and NetQueue support accelerate virtualised workloads

Dual-port 10GbE server adapter

The Emulex OCe11102-NM is a dual-port 10Gbps Ethernet network adapter built for rack-mount servers that need fibre connectivity. It installs in a PCIe 2.0 x8 slot and presents two LC connectors for 10GBASE-SR short-reach optics. The low-profile form factor fits standard or low-profile brackets.

Sustained throughput with CPU offload

Stateless TCP/IP and TCP Chimney offload move checksum, segmentation and receive scaling onto the BE3 controller, keeping host CPU utilisation low during continuous 10Gbps traffic. Jumbo frames up to 9000 bytes reduce per-packet overhead. The card operates from 0°C to 55°C at 5–95 % non-condensing humidity.

Replaces single-port or copper 10GbE NICs

This adapter upgrades servers limited to a single 10GbE port or to copper SFP+ modules that cannot reach the required distance. It is not for desktop workstations lacking a PCIe 2.0 x8 slot or for environments that need long-reach single-mode fibre instead of short-reach multimode.

Highlights

  • Dual 10Gbps ports deliver high-throughput connectivity
  • PCIe 2.0 x8 interface provides ample bandwidth headroom
  • 10GBASE-SR LC optics enable short-reach fibre links
  • TCP/IP and Chimney offloads reduce CPU utilisation
  • SR-IOV and NetQueue support accelerate virtualised workloads

Specifications

BrandEmulex
ModelOCe11102-NM
StandardsPCI Express base spec 2.0, PCI Bus Power Management Interface, rev. 1.2, Advanced Error Reporting (AER)
IEEE 802.3ae (10Gb/s Ethernet)
IEEE 802.1q (VLAN)
IEEE 802.1p (QoS/CoS)
IEEE 802.3ad (Link Aggregation)
IEEE 802.3x (Flow Control)
PHP hot plug-hot swap
Enhanced Error Handing (EEH)
Speed10Gbps
Connectors10GBASE-SR short wave lasers with LC type connector
InterfacePCIe Express 2.0 x8
Temperature0°C ~ 55°C
Humidity5 % ~ 95 % (Non-condensing)
FeaturesEthernet Features:
IPv4/IPv6 TCP, UDP checksum offload; Large Send Offload (LSO); Large Receive Offload; Receive Side Scaling (RSS); IPv4 TCP Chimney Offload
VLAN insertion and extraction
Jumbo frames up to 9000 Bytes
Priority Flow Control for Ethernet traffic
Preboot eXecution Environment (PXE) 2.0 network boot support
Interrupt coalescing
Load balancing and failover support including adapter fault tolerance (AFT), switch fault tolerance (SFT), adaptive load balancing (ALB), teaming support, VMW NetQueue v2 and IEEE 802.3ad, VT-d / IOMMU support
I/O Virtualization:
PCI-SIG SR-IOV co
Dimensions6.60" x 2.71"
Short, low-profile form factor card
Standard bracket (low profile available)
Shipping weight0.34 kg
Package size241 × 159 × 44 mm

Questions about this item

How much power and heat does the OCe11102-NM produce when running continuously?

The card operates within a 0 °C to 55 °C temperature range and up to 95 % non-condensing humidity, with power management under the PCI Bus Power Management Interface rev. 1.2.

What cabling and switch ports are required for the dual LC connectors?

Each port uses 10GBASE-SR short-wave optics with LC connectors; you need multimode fibre patch cords and switch ports that support 10GBASE-SR.

Will the PCIe 2.0 x8 interface limit throughput on an older server that only has PCIe 1.1 slots?

The adapter complies with the PCI Express base spec 2.0 and fits an x8 slot; on a 1.1 system it will negotiate down to the lower link speed.
