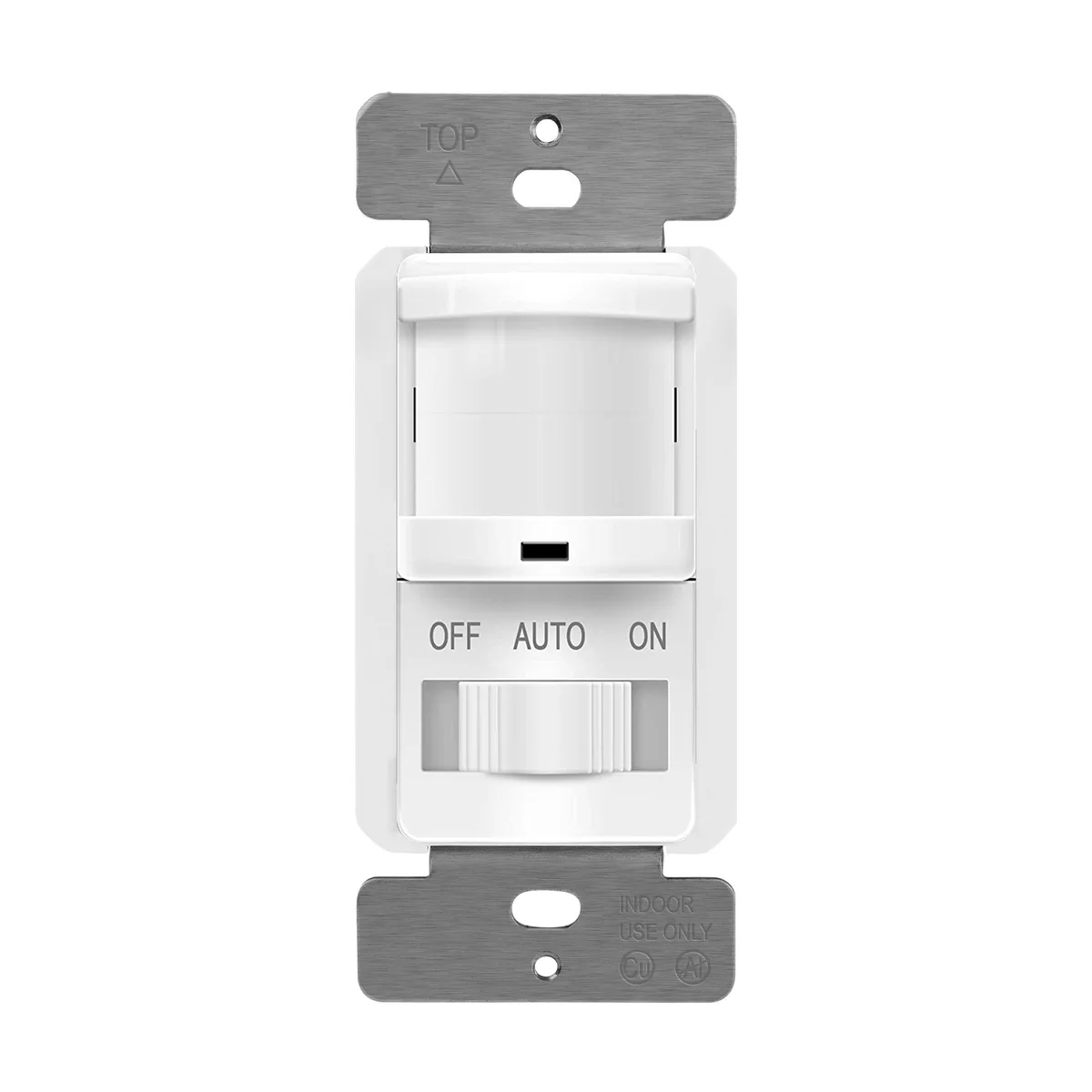

White rectangular in-wall PIR motion sensor switch with toggle override button

Emerson TSOS5-W PIR Motion Sensor Switch White

SKU CH-40CM-RJQWT

An in-wall PIR occupancy sensor that automatically switches lights, fans or motors on and off across 980 square feet with adjustable sensitivity and four time-delay settings from 15 seconds to 30

  • ColorWhite
  • ProtocolWireless
  • Specifications5.1 L x 3 W x 2.2 H inches, 0.141 kilograms, 980 feet, Embed
  • FeaturesEmbedded, 980 feet, false
  • Dimensions14.33in W x 12.83in H x 9.06in D
  • Weight0.141 kilograms
  • Automates lighting based on occupancy detection
  • Adjustable sensitivity from 30 to 100 percent
  • Variable time delay options from 15 seconds to 30 minutes
  • Covers up to 980 square feet with 180-degree field of view

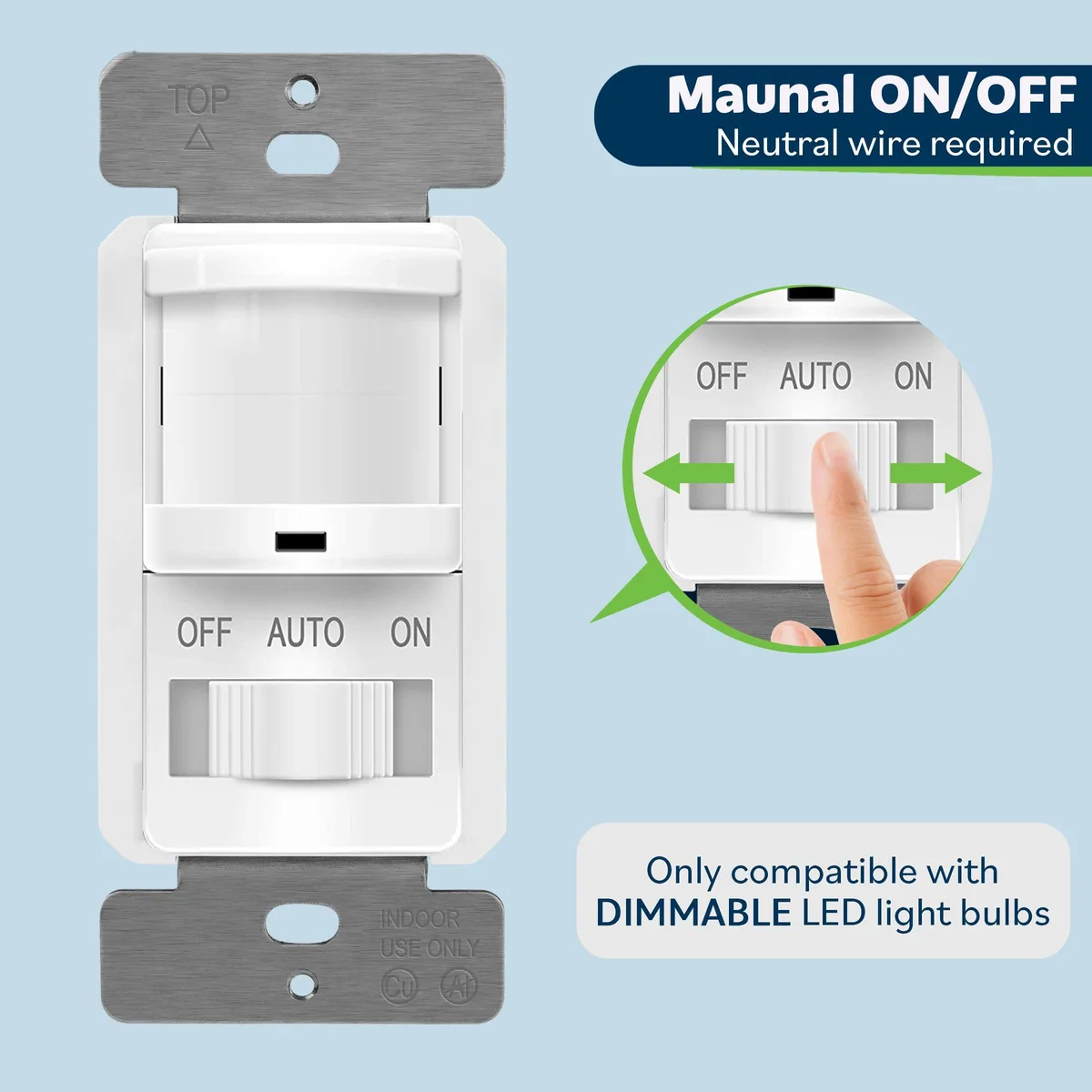

  • Manual on/off override modes for direct control

In-Wall PIR Motion Sensor Switch

The Emerson TSOS5-W is a single-pole occupancy sensor that automatically controls lights, fans or small motors by detecting infrared heat from human movement. It requires a neutral wire and fits a standard wall box, making it suitable for residential rooms such as garages, closets or utility spaces where hands-free operation is wanted.

Sustained Operation Behaviour

The sensor covers up to 980 square feet with a 180-degree field of view and offers adjustable sensitivity from 30 to 100 percent. Time-delay settings of 10, 20 or 30 minutes keep the load on during continuous occupancy, while a 15-second test mode helps verify coverage during installation. Auto, always-on and always-off modes are selectable at the switch.

Upgrade Context

This unit replaces a standard single-pole toggle where automatic on/off control is desired and a neutral conductor is present. It is not suitable for three-way or multi-location circuits, nor for loads exceeding 500 watts incandescent, 150 watts LED or CFL, 500 VA fluorescent or 1/8 HP motor. A wall plate is sold separately.

Highlights

  • Automates lighting based on occupancy detection
  • Adjustable sensitivity from 30 to 100 percent
  • Variable time delay options from 15 seconds to 30 minutes
  • Covers up to 980 square feet with 180-degree field of view
  • Manual on/off override modes for direct control

Specifications

BrandEmerson
ModelTSOS5-W
ColorWhite
ProtocolWireless
Part NumberTSOS5-W
Specifications5.1 L x 3 W x 2.2 H inches, 0.141 kilograms, 980 feet, Embedded, Standard AC Electrical Connectivity / Wiring: Hot, Ground, Load, Neutral, Battery not included, plastic, Light, Fan, Motor, Heater, Switch, Wire nuts, Instruction, TSOS5-W, TSOS5-W-STICKERED, Top Greener Inc, TOPGREENER
FeaturesEmbedded, 980 feet, false
Dimensions14.33in W x 12.83in H x 9.06in D
Weight0.141 kilograms
Contains Embedded BatteryNo

Questions about this item

How much power does the Emerson TSOS5-W draw while it is running all day?

The switch itself consumes very little power; it is rated for a maximum connected load of 150 W for CFL or LED lighting, 500 W for incandescent or halogen, 500 VA for fluorescent, or 1/8 HP for motors at 120 VAC.

What wiring must already be present in the wall box for the TSOS5-W to operate?

A neutral wire is required in addition to hot, ground and load conductors; the device is single-pole only and will not work in a three-way or multi-way circuit.

Will the TSOS5-W control an older fluorescent ballast that I want to keep?

Yes, it supports fluorescent loads up to 500 VA, so a compatible legacy ballast can be switched as long as the total load stays within that rating.
