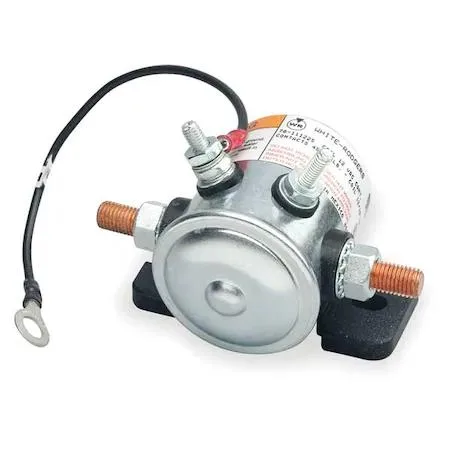

Small transparent rectangular solenoid with threaded terminals and metal base

Emerson Climate Technologies

Emerson Climate Technologies WHITE-RODGERS 70-111225S1 12V 80A Solenoid

SKU CH-CFMA-JAQFA

A 12 V DC solenoid rated for 80 A continuous duty with SPST-NO contacts and 5/16 in thread terminations

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Continuous 12 V DC operation with 80 A current rating
  • SPST-NO contact form provides reliable on/off switching
  • 16 ohm coil resistance ensures efficient power consumption
  • 100,000 electrical cycles deliver long operational durability
  • 500 V dielectric strength supports safe high-voltage isolation

DC Power Solenoid for 12 V systems

The WHITE-RODGERS 70-111225S1 is a continuous-duty solenoid rated at 80 A with a 12 V DC coil. It uses SPST-NO contact form and copper contacts suited for industrial electrical controls and automation tasks requiring reliable switching.

Threaded terminations simplify wiring

Contact termination uses a 5/16 in-24 UNF-2A thread while the grounded coil terminates on a #10-32 UNF-2A thread. The coil resistance is 16 ohm. Ensure threads are clean and torque is appropriate to avoid high resistance or mechanical stress on the 2.47 in long body.

Verify voltage duty and temperature limits

Confirm the supply is 12 V DC and the application runs within the 122 Degrees F maximum operating temperature. The unit offers 100,000 electrical and 250,000 mechanical cycles at 500 V dielectric strength. It is not for buyers who need a different coil voltage or higher current capacity.

Highlights

  • Continuous 12 V DC operation with 80 A current rating
  • SPST-NO contact form provides reliable on/off switching
  • 16 ohm coil resistance ensures efficient power consumption
  • 100,000 electrical cycles deliver long operational durability
  • 500 V dielectric strength supports safe high-voltage isolation

Specifications

BrandWhite-Rodgers
Model70-111225-5
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

How can I confirm the solenoid is energising correctly after installation?

Apply 12 V DC to the coil and measure 16 ohm resistance; the SPST-NO contacts should close and pass up to 80 A continuously.

What comes in the box and what must be sourced separately?

The unit includes only the solenoid; mating connectors for the 5/16 in-24 UNF-2A contact studs and #10-32 UNF-2A coil terminals are not supplied.

Which coil voltage and current rating should I select for a 12 V system needing 80 A switching?

Choose the 12 V DC, 80 A version (series 70) — it is the only variant listed with those exact coil voltage and contact ratings.
