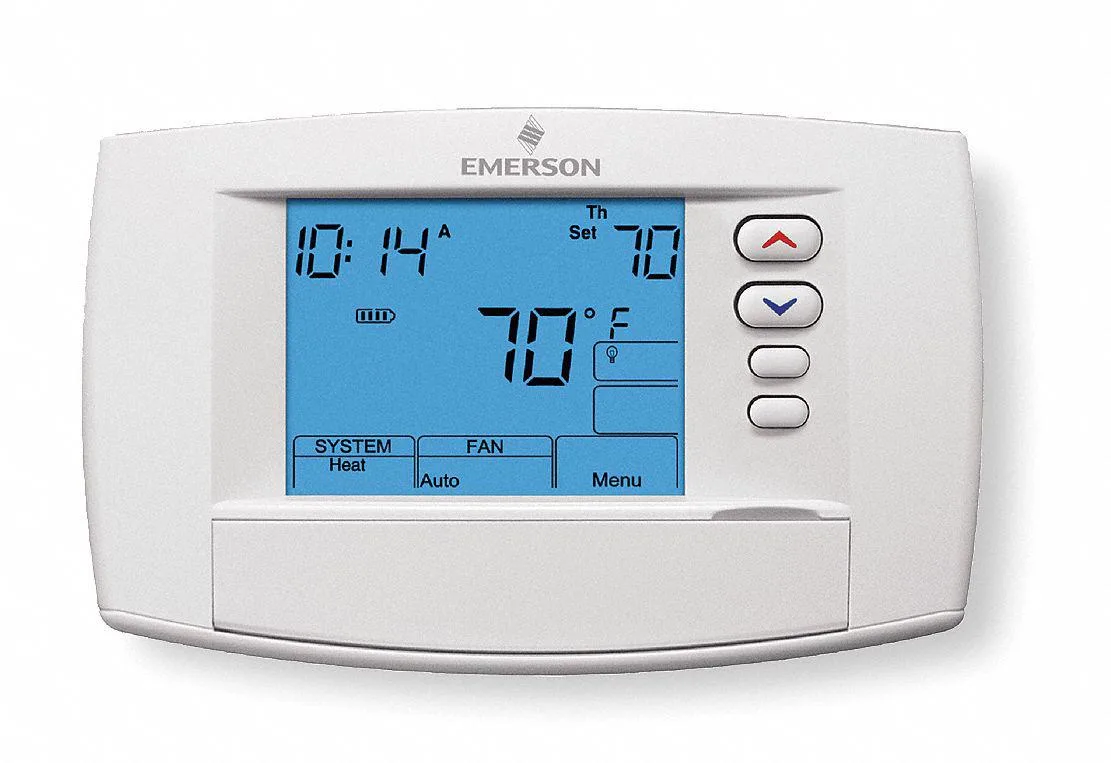

White rectangular wall thermostat with blue touchscreen display

Emerson Climate Technologies

Emerson Climate Technologies 1F95-0680 hvac control

SKU CH-7NPH-6N0SK MPN 1F95-0680

A wall-mounted thermostat offering up to four heat and two cool stages with 7-day, 5-1-1 or non-programmable scheduling

  • TypeThermostats
  • ColorWhite
  • Mount TypeWall
  • Blue backlit 6 sq in display for clear reading
  • 7-day, 5-1-1 or non-programmable scheduling options
  • Controls up to 4 heat and 2 cool stages
  • Keypad lockout prevents unauthorised changes
  • Remote sensor compatible for flexible placement

Programmable Touchscreen Thermostat

The Emerson 1F95-0680 is a low-voltage thermostat with a 6-square-inch blue touchscreen display. It supports up to four heat stages and two cool stages with automatic changeover between heating and cooling. The unit offers 7-day, 5-1-1-day or non-programmable scheduling options with zero, two or four temperature settings per day. A keypad lockout prevents unauthorised adjustments.

Multi-Stage Systems With Remote Sensors

This thermostat suits installations that require multi-stage heating and cooling control plus remote temperature sensing. The terminal block includes connections for humidification, ventilation and equipment monitoring. Buyers needing built-in Wi-Fi connectivity or humidification control should consider other models. The lack of wireless capability means it cannot integrate with smart-home platforms.

Four Heat Stages And Two Cool Stages

The defining specification is the four heat stages and two cool stages supported by the terminal designations. This staging capacity determines whether the thermostat can drive the heating and cooling equipment in the system. Systems with fewer stages will work but will not use all available terminals. Systems requiring more stages cannot be controlled by this unit.

Highlights

  • Blue backlit 6 sq in display for clear reading
  • 7-day, 5-1-1 or non-programmable scheduling options
  • Controls up to 4 heat and 2 cool stages
  • Keypad lockout prevents unauthorised changes
  • Remote sensor compatible for flexible placement

Specifications

TypeThermostats
BrandEMERSON
Model1F95-0680
ColorWhite
Mount TypeWall

Questions about this item

How can I confirm the 1F95-0680 thermostat is operating correctly after installation?

Verify the blue touchscreen displays the current temperature and system mode, test heating and cooling stages through the Auto-Heat-Cool-Off-Emergency switch, and check that the filter indicator and keypad lockout respond as expected.

What terminals and accessories are included with the 1F95-0680, and what must be purchased separately?

The thermostat provides RH, RC, C, Y, Y2, W/E, W2, G, O/B, 6, L, A1, +, S, - terminals for low-voltage wiring; wire, wall anchors and batteries are not included and must be sourced separately.

Which programming option suits my schedule: 7-day, 5-1-1 or non-programmable?

Choose 7-day for a unique schedule each day, 5-1-1 for identical weekday timing with separate weekend schedules, or non-programmable if you prefer manual temperature control only.
