White-Rodgers DC power solenoid, rectangular transparent housing, four terminals

Emerson Climate Technologies

Emerson Climate Technologies 124 117111S1 DC Power Solenoid 36V 100A

SKU CH-6ABH-X0MSS

A 36 V DC power solenoid rated for 100 A continuous duty with silver-alloy contacts and standard bracket mounting

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Reliable switching with 150 A current rating
  • Efficient operation at 36 V DC coil voltage
  • Durable silver alloy contacts resist wear
  • Wide temperature range from -40 to 149 °F
  • Compact design fits standard bracket mounting

Solenoid for 36V DC Control Circuits

This WHITE-RODGERS 124-series solenoid switches DC power in industrial electrical controls and automation systems. It operates on a 36V DC coil with a 120-ohm resistance and continuous duty cycle. The unit uses SPST-NO contact form with silver alloy contacts rated for 150A current.

Suits Panels Needing Standard Bracket Mount

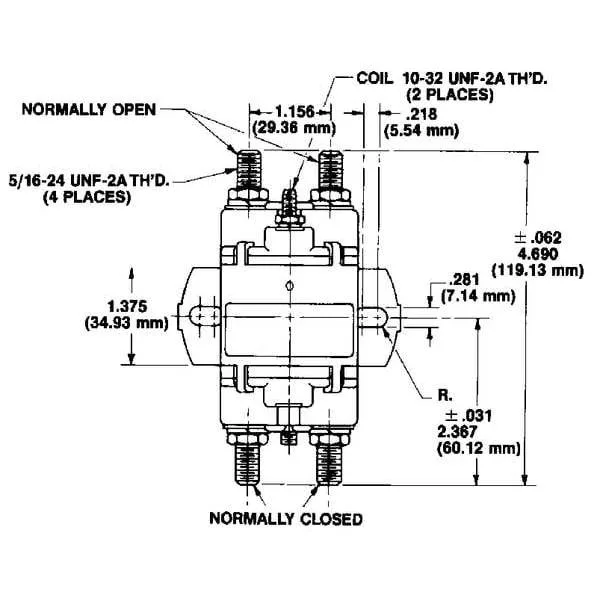

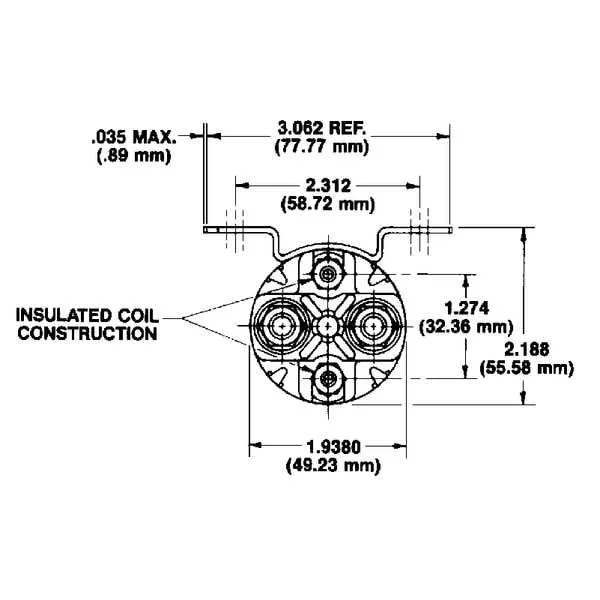

Installers who require a base-mounted solenoid with 5/16-24 UNF contact terminals and #10-32 UNF coil terminals will find the hardware matches. The four-terminal isolated coil design fits standard bracket layouts. Buyers needing a different mounting style, contact form, or coil voltage should look at other models.

150A Contact Rating at 36V DC Coil

The silver alloy contacts carry a 150A continuous rating while the coil draws power at 36V DC with 120-ohm resistance. This current-and-voltage combination determines whether the solenoid matches the load and control circuit. Verify both values against the application requirements before purchase.

Highlights

  • Reliable switching with 150 A current rating
  • Efficient operation at 36 V DC coil voltage
  • Durable silver alloy contacts resist wear
  • Wide temperature range from -40 to 149 °F
  • Compact design fits standard bracket mounting

Specifications

BrandWHITE-RODGERS
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

How hot does the 124 117111S1 get when running continuously at 100 A?

The solenoid is rated for continuous duty up to 149 °F ambient; the coil draws 36 V at 120 Ω so steady-state heat is determined by that power level.

What wiring and mounting hardware must I already have to install this 36 V DC solenoid?

You need 5/16-24 UNF-2A lugs for the power terminals, #10-32 UNF-2A hardware for the coil leads, and a standard bracket for the base.

Will the 124 117111S1 share a 36 V bus with older 124-series contactors that use the same thread sizes?

Yes — identical 5/16-24 power threads and #10-32 coil threads let it bolt onto existing bus bars and terminal strips without adapters.
