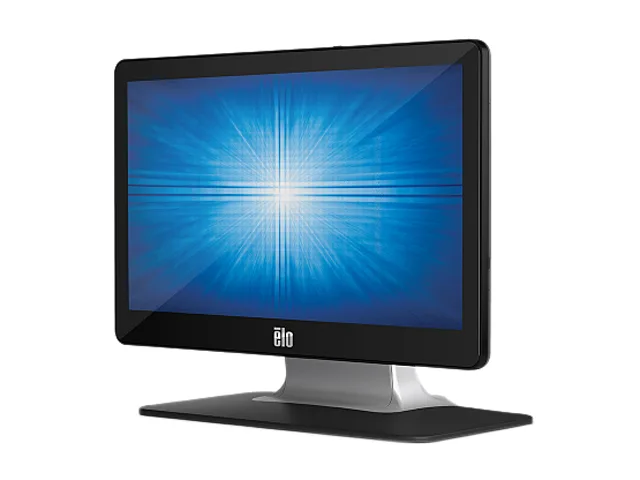

Black 13.3 inch touchscreen monitor with stand, zero bezel glass front, USB Type-C port visible

Elo Touch Solutions

Elo Touch Solutions E683204 13.3" 1920x1080 PCAP 10 Touch point of sale monitor

SKU CH-9FXR-XRGVV MPN E683204

A 13.3 inch Full HD projected capacitive touchscreen with ten-touch support, USB Type-C video and power, plus VGA and HDMI inputs, built for point-of-sale and self-service use

  • Cabinet ColorBlack
  • Touchscreen TypePCAP (Projected Capacitive) - 10 Touch
  • Screen Size13.3"
  • Display TypeDiagonal, Active matrix TFT LCD
  • Aspect Ratio16:9
  • Maximum ResolutionOther Supported Resolutions 640 x 480 60Hz 800 x 600 60Hz 10
  • Accurate interaction with 10 simultaneous touch points via PCAP technology
  • Crisp Full HD detail on a 13.3 inch 1920 x 1080 display
  • Flexible installation for countertop or customer-facing point of interaction use
  • Single-cable USB Type-C connectivity delivering video, touch and power
  • Wide 170 degree viewing angles ensure clear visibility from any position

Compact 13.3-inch POS touchscreen

The Elo E683204 is a 13.3-inch Full HD point-of-sale monitor with projected capacitive technology supporting up to ten simultaneous touch points. It ships new with an integrated stand and a black cabinet designed for countertop or customer-facing deployment.

Retail, hospitality and self-service operators

This unit suits businesses that need a small-footprint interactive display with flexible connectivity including USB Type-C for video, touch and power, plus HDMI, VGA and four micro-USB ports for Elo Edge Connect peripherals. It is not intended for buyers who require a larger screen diagonal, higher panel brightness than 270 nits, or a faster response time than 25 ms.

USB Type-C single-cable interface

The monitor accepts 12 V DC input and includes a 100-240 V AC adapter, while the USB Type-C port carries video, touch data and power delivery in one connection. This specification determines whether the host system can drive the display without separate video and touch cables.

Highlights

  • Accurate interaction with 10 simultaneous touch points via PCAP technology
  • Crisp Full HD detail on a 13.3 inch 1920 x 1080 display
  • Flexible installation for countertop or customer-facing point of interaction use
  • Single-cable USB Type-C connectivity delivering video, touch and power
  • Wide 170 degree viewing angles ensure clear visibility from any position

Specifications

BrandElo Touch Solutions
ModelE683204
Cabinet ColorBlack
Touchscreen TypePCAP (Projected Capacitive) - 10 Touch
Screen Size13.3"
Display TypeDiagonal, Active matrix TFT LCD
Aspect Ratio16:9
Maximum ResolutionOther Supported Resolutions
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 720 60Hz
1280 x 800 60Hz, 60Hz RB
1280 x 960 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 60Hz
Resolution1920 x 1080
Viewing AngleHorizontal: +/- 85 degree or 170 degree total
Vertical: +/- 85 degree or 170 degree total
Display Colors16.7 Million
BrightnessPanel: 300 nits
TouchPro PCAP: 270 nits
Contrast Ratio800:1
Response Time25ms
Touchscreen InterfaceUSB
Input Video CompatibilityInput Video Frequency
Horizontal: 30 - 75K KHz
Vertical: 60 Hz
Connectors1 x USB Type-C
1 x Audio jack (Line-in)
1 x VGA
1 x HDMI
1 x 12V D/C input
4 x Micro-USB ports (Top, Bottom, Left, Right) for Elo Edge Connect peripherals
D-Sub1
VideoHDMI V1.3 Type A receptacle for HDMI input
Analog VGA
USB Type-C
Power SupplyMonitor input voltage range: 12V DC +/- 5%
Adapter input voltage range: 100-240V AC
Input frequency: 50-60 Hz
Power ConsumptionMonitor + adapter
ON: 9.8W
SLEEP: 1.39W
OFF: 0.18W
Regulatory ApprovalsAustralia RCM
Canada cUL, IC
China CCC
Europe CE
Japan VCCI
Korea KCC
Mexico NOM
Taiwan BSMI
United States UL, FCC
International CB
RoHS, China RoHS, WEEE, REACH
Built-in SpeakersSpeakers: 2 x 1W
VESA Compatibility - MountableMounting Options: VESA 75.00 mm x 75.00 mm (4-hole)
Dimensions10.22" x 12.84" x 5.91" (With Stand)
Weight5.11 lbs. (With Stand)
Humidity RangeOperating: 20% to 80%
Storage: 10% to 95% (38.7 degrees C max wet bulb temperature)
Temperature RangeOperating: 0 to 40 degrees C / 32 to 104 degrees F
Storag: -20 to 60 degrees C / -4 to 140 degrees F
Package ContentsTouchmonitor
HDMI cable
Touch USB Cable (USB Type-A to Type-C)
Quick Install Guide
EEI Label
Power brick
NA Power cable
EU Power cable
3x Tie wraps
2x screws for cable cover(s)
Shipping weight5.78 kg
Package size411 × 333 × 218 mm

Questions about this item

Does the 13.3" panel run silently and how much power does the 12 V DC input draw?

The monitor has no fan so it operates silently; it accepts 12 V DC ±5 % from the supplied 100–240 V AC adapter.

Which video cables and host ports are needed to get touch, video and power over the single USB Type-C link?

A host with a USB Type-C port that supports DisplayPort Alt Mode and Power Delivery is required; otherwise use the HDMI or VGA inputs plus the USB touch cable.

Will the 170° viewing angles and 10-touch PCAP layer still work when the monitor is driven from an older PC over VGA at 1024×768?

Yes — VGA at 1024×768 60 Hz is a listed supported resolution and the touch interface remains active over USB regardless of the video source.
