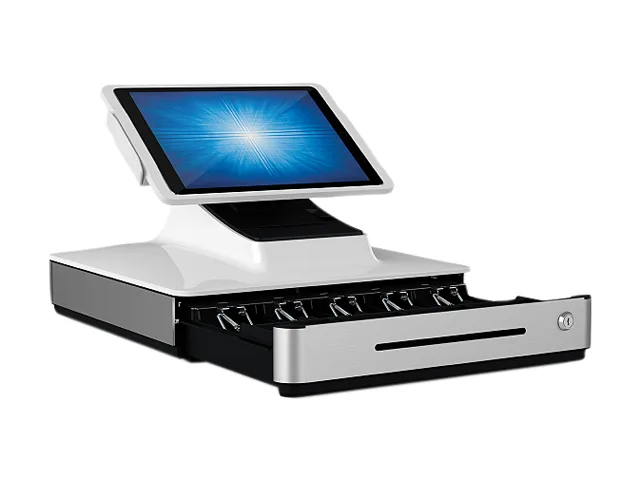

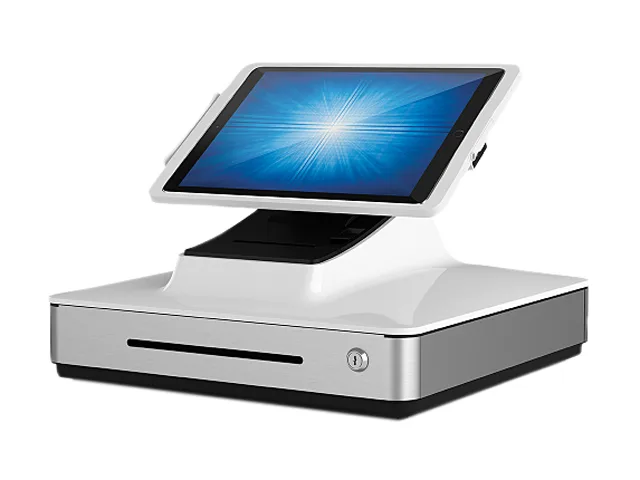

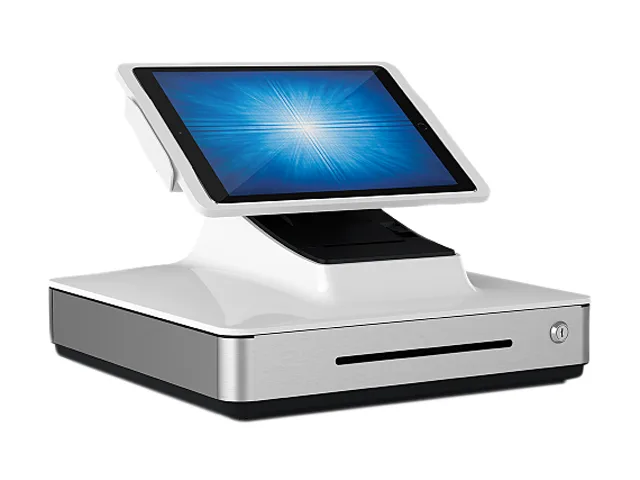

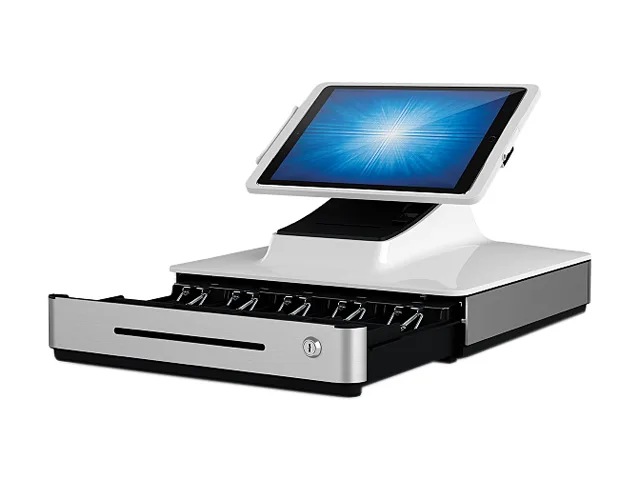

White all-in-one POS stand with iPad cradle, built-in receipt printer, barcode scanner, cash drawer and customer display

Elo Touch Solutions

Elo Touch Solutions E475092 PayPoint Plus POS System for 9.7" iPad, White

SKU CH-YE8D-997CA MPN E475092

All-in-one POS stand for 9.7" iPad with integrated barcode scanner, receipt printer, cash drawer, MSR and customer display

  • Screen SizeFor 9.7" iPads
  • Resolution(Barcode Reader) CMOS sensor with 640 x 480 pixel resolution
  • Construction3 position lock 5 bill, 6 coin built in cash drawer Cash Dra
  • Media SlotsMedia slot for checks
  • TillRemovable till insert
  • ColorWhite
  • Integrated Honeywell N3680 1D/2D barcode scanner speeds checkout
  • Star TSP100iii 80 mm printer with auto-cutter prints at 230 mm/sec
  • Full-size cash drawer with 3-position lock holds 5 bills and 6 coins
  • Built-in 2 x 16 character customer display meets regulatory requirements
  • Supports iPad Pro 9.7", iPad Air 2, iPad Air and iPad 4

All-in-one POS for 9.7" iPad

The Elo PayPoint Plus E475092 integrates a receipt printer, barcode scanner, cash drawer, MSR and customer-facing display into a single white countertop unit. It accepts a compatible iPad to create a complete checkout station for retail, hospitality or entertainment venues. The system ships new with a power cable, paper roll, drawer keys and a quick installation guide.

Honeywell N3680 1D/2D barcode engine

The integrated scanner uses a CMOS sensor with 640 x 480 pixel resolution for omnidirectional reading of 1D and 2D codes. Optional plugins such as EasyDL add the ability to read government-issued identification cards in the US and Canada. This scanner specification determines whether the unit meets your barcode-capture requirements.

28 W typical draw, fanless operation

The power supply accepts 100-240 VAC at 50-60 Hz and consumes 28 W in typical use with no moving cooling parts, so acoustic output is negligible. Operating temperature range is 0 to 35 °C at 20-80 % humidity, while storage tolerates -20 to 60 °C at 5-95 % humidity. The three-position lock on the cash drawer secures contents without adding noise.

Highlights

  • Integrated Honeywell N3680 1D/2D barcode scanner speeds checkout
  • Star TSP100iii 80 mm printer with auto-cutter prints at 230 mm/sec
  • Full-size cash drawer with 3-position lock holds 5 bills and 6 coins
  • Built-in 2 x 16 character customer display meets regulatory requirements
  • Supports iPad Pro 9.7", iPad Air 2, iPad Air and iPad 4

Specifications

BrandElo Touch Solutions
SeriesPayPoint
Part NumberE475092
Screen SizeFor 9.7" iPads
Resolution(Barcode Reader) CMOS sensor with 640 x 480 pixel resolution
Construction3 position lock
5 bill, 6 coin built in cash drawer
Cash Drawer Inside Dimensions:
Bill: 6.61" x 2.80" x 2.00" / 168.00 mm x 71.00 mm x 51.00 mm
Coin: 3.39" x 2.28" x 2.00" / 86.00 mm x 58.00 mm x 51.00 mm
Media SlotsMedia slot for checks
TillRemovable till insert
ColorWhite
Number of Characters2 x 16 character display
USB1 x Type A USB (for Charging)
1 x Mini USB (for Charging)
Serial2 x RJ45 Serial Ports
Other Ports1 x RJ12 cash drawer port
PowerAC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Power Consumption (Typical): 28W
TemperatureOperating: 0 to 35 degrees C / 32 to 95 degrees F
Storage: -20 to 60 degrees C / -4 to 140 degrees F
HumidityOperating: 20% to 80%
Storage: 5% to 95%
Dimensions16.20" x 12.60" x 16.20"
Weight18.29 lbs.
FeaturesOS: SDK support for iOS 10 and later
Regulatory approvals and declarations: UL/cUL, CE, CB, CCC, SRRC, VCCI, MIC, RCM
iPad Compatibility: iPad Pro 9.7", iPad (2017 model), iPad 4, iPad Air, iPad Air 2
Printer
The Star TSP100iii is a standard 3.00" (80.00 mm) printer with auto-cutter and print speed of 230 mm/sec.
Barcode Scanner
The Honeywell N3680 is an omnidirectional 1D/2D engine with optional capability to add plugins. For example - EasyDL enables users to read government-issued identification cards in US and Canada.
CMOS sensor with 640 x 480 pixel resolution
Supported symbologi
Package IncludesPayPoint Plus for iPad
Power cable
1 x receipt paper roll
2 x cash drawer keys
Quick Installation Guide
RJ45 to DB9 serial cable
Shipping weight12.70 kg
Package size533 × 521 × 343 mm

Questions about this item

What does the 230 mm/s print speed mean for checkout throughput?

The Star TSP100iii printer produces receipts at 230 mm per second with an auto-cutter, reducing customer wait time at the register.

How does the RJ12 cash drawer port limit adding a second drawer?

The single RJ12 port supports one additional industry-standard cash drawer; a second drawer connects directly through this I/O port.

What counter space does the 16.20 x 12.60 x 16.20 inch footprint require?

The all-in-one unit occupies a 16.20-inch square base and stands 16.20 inches tall, so allow at least that much flat surface plus cable clearance.
