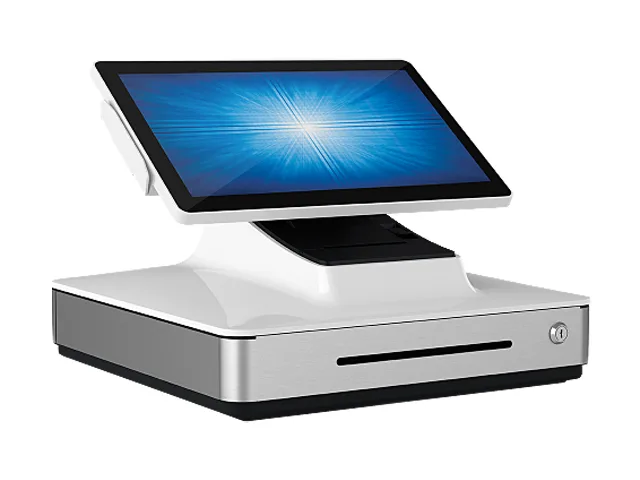

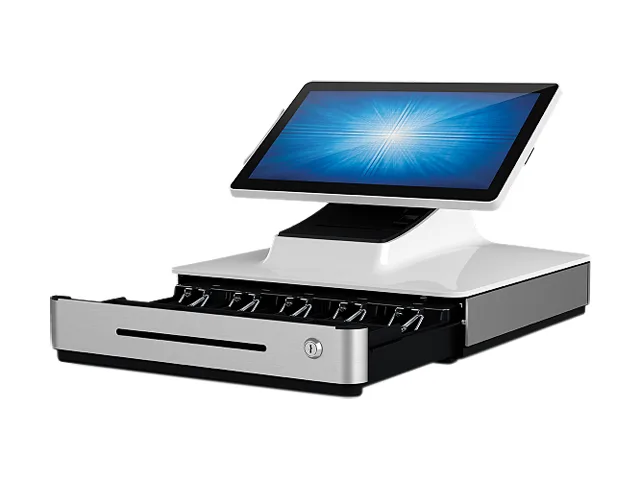

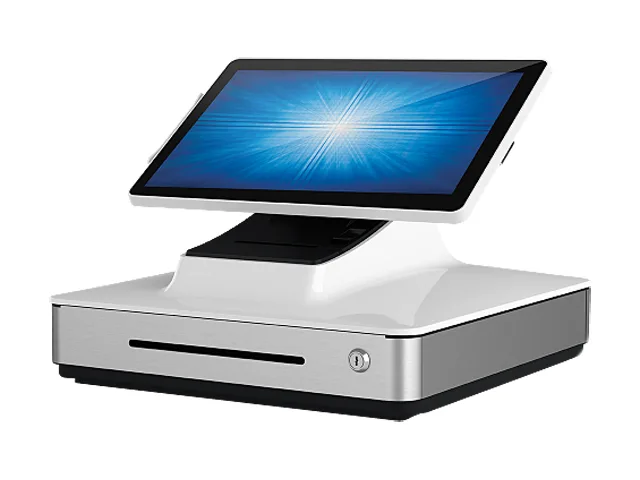

White all-in-one POS terminal with 15.6-inch touchscreen, integrated printer, scanner, cash drawer and customer display

Elo Touch Solutions

Elo Touch Solutions E347513 PayPoint Plus POS System 15.6" 2.0GHz 3 GB 32 GB Android 7.1

SKU CH-X7E8-FE2Q1 MPN E347513

All-in-one Android POS with 15.6" touchscreen, integrated scanner, printer, cash drawer and customer display

  • CPUQualcomm Snapdragon 2.0GHz Octa-Core
  • Memory3 GB RAM
  • Hard Drive32 GB SSD
  • Operating SystemAndroid 7.1
  • Screen Size15.6'' diagonal, Active matrix TFT LCD (LED)
  • Resolution1920 x 1080
  • Full HD 15.6" touchscreen for clear visuals with 1920 x 1080 resolution
  • Rotating display head enables customer interaction and signature capture
  • Integrated Star printer with auto-cutter prints at 230 mm/s speed
  • Honeywell 2D barcode scanner and Magtek encryptable MSR built in
  • Qualcomm Snapdragon 2.0GHz octa-core with 3 GB RAM runs Android 7.1

All-in-One mPOS for Retail and Hospitality

The Elo PayPoint Plus E347513 is a complete Android 7.1 point-of-sale system built around a 15.6 inch full HD PCAP touchscreen. It integrates a Star TSP100iii 80 mm printer, Honeywell N3680 2D scanner, Magtek encryptable MSR and a full-size cash drawer in a single white countertop unit.

Countertop Footprint with Peripheral Expansion

The rotating display head lets customers face the screen for signatures and loyalty enrolment while the merchant retains control. Four USB 2.0 Type A ports, one mini USB 2.0, one 12 V powered USB, two RJ45 serial ports, Gigabit LAN, micro HDMI, Bluetooth 4.1 and 802.11b/g/n/ac Wi-Fi provide connectivity for additional scanners, scales or kitchen displays.

Replaces Separate Terminal, Printer.

Consolidating four devices into one reduces cabling, saves counter space and simplifies end-of-day reconciliation. The jump is worth it when a business wants a single vendor for hardware, firmware updates and support rather than managing multiple suppliers for each peripheral.

Highlights

  • Full HD 15.6" touchscreen for clear visuals with 1920 x 1080 resolution
  • Rotating display head enables customer interaction and signature capture
  • Integrated Star printer with auto-cutter prints at 230 mm/s speed
  • Honeywell 2D barcode scanner and Magtek encryptable MSR built in
  • Qualcomm Snapdragon 2.0GHz octa-core with 3 GB RAM runs Android 7.1

Specifications

BrandElo Touch Solutions
SeriesPayPoint
Part NumberE347513
CPUQualcomm Snapdragon 2.0GHz Octa-Core
Memory3 GB RAM
Hard Drive32 GB SSD
Operating SystemAndroid 7.1
Screen Size15.6'' diagonal, Active matrix TFT LCD (LED)
Resolution1920 x 1080
Interface1 x RJ12
ColorWhite
USB4 x Type A USB 2.0
1 x mini USB 2.0
1 x 12V powered USB port
Serial2 x RJ45
LAN1 x LAN (Gigabit)
Other Ports1 x micro HDMI port
1 x 1W internal speaker
802.11b/g/n/ac
Bluetooth 4.1
PowerAC input voltage: 100 - 240 VAC
Input frequency: 50 - 60 Hz
Dimensions16.20" x 12.60" x 16.20"
Weight19.84 lbs.
FeaturesTouch Technology & Capacity: PCAP (Projected Capacitive) - up to 5 touches
Shipping weight12.16 kg
Package size536 × 521 × 384 mm

Questions about this item

How long can the Star TSP100iii printer run at 230 mm/s before the auto-cutter or thermal head becomes the limiting factor?

The integrated Star TSP100iii prints at 230 mm/s with an auto-cutter; sustained high-volume printing will hit thermal limits on the print head before the cutter wears out.

What are the typical noise and heat levels when the system runs all day with the printer, scanner and display active?

The fanless Qualcomm Snapdragon 2.0 GHz board stays cool and silent; only the Star printer produces audible sound and local heat during receipt printing.

Which peripherals must I already own to operate the cash drawer, customer display and MSR out of the box?

All three — full-size 5 bill/6 coin cash drawer, customer-facing display and Magtek encryptable MSR — are built in, so no extra hardware is required.
