Black 15-inch open-frame touch display with narrow bezel

Elo Touch Solutions

Elo Touch Solutions E326738 1590L 15" 1024 x 768 interactive digital signage

SKU CH-717T-XTXCQ MPN E326738

A 15-inch open-frame touch display with 1024 x 768 resolution, 250 cd/m² brightness and IntelliTouch surface acoustic wave technology for kiosk and self-service integration

  • Cabinet ColorBlack
  • Screen Size15"
  • Resolution1024 x 768
  • Display Colors16.2 Million
  • Brightness250 cd/m2
  • Contrast Ratio700:1
  • 15-inch open-frame touch display fits tight kiosk spaces
  • 1024 x 768 resolution delivers clear visuals for interactive signage
  • 250 cd/m² brightness ensures readable content in indoor environments
  • LED backlight cuts power use to 12.5 W while reducing heat output
  • Sealed touchscreen resists dust and liquids for reliable integration

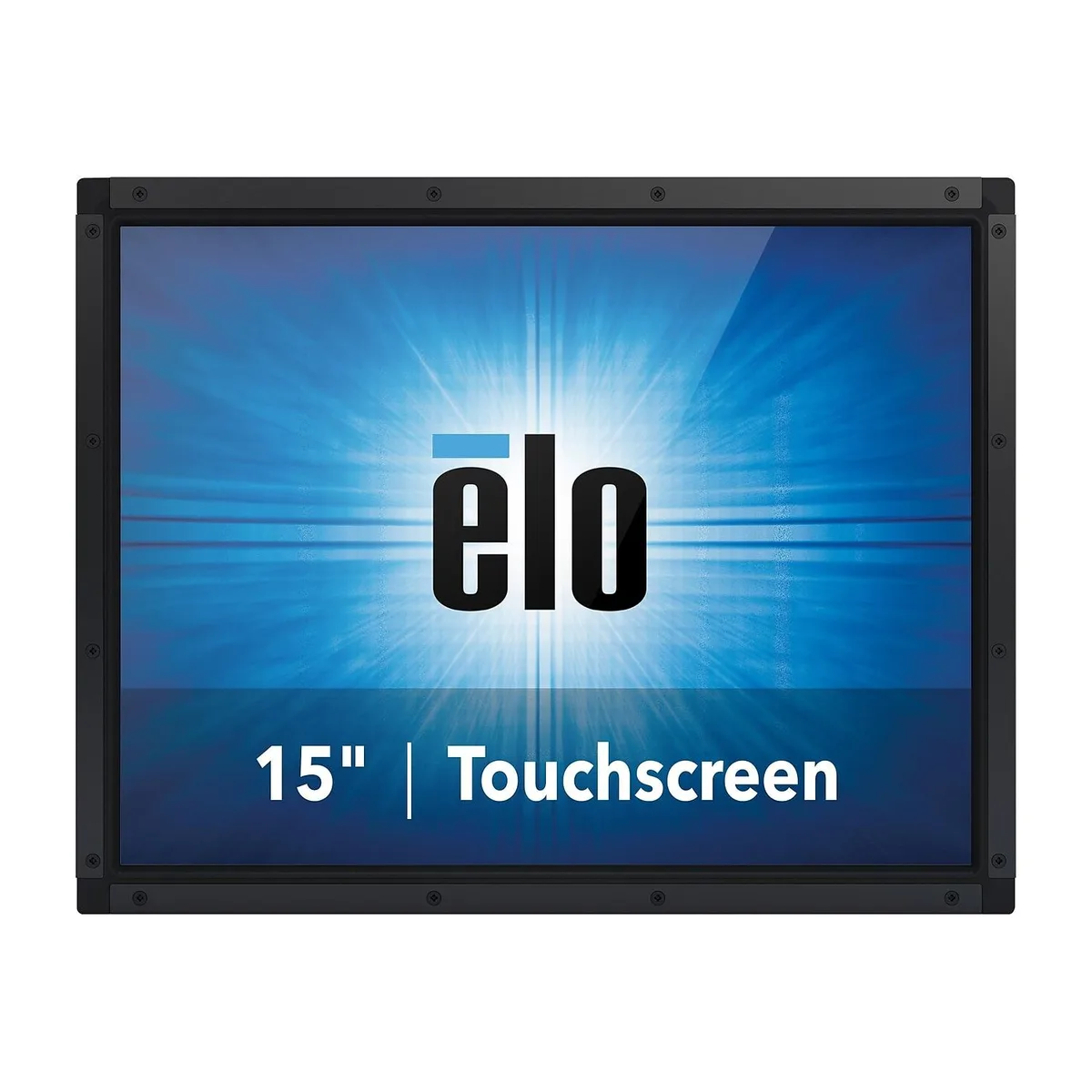

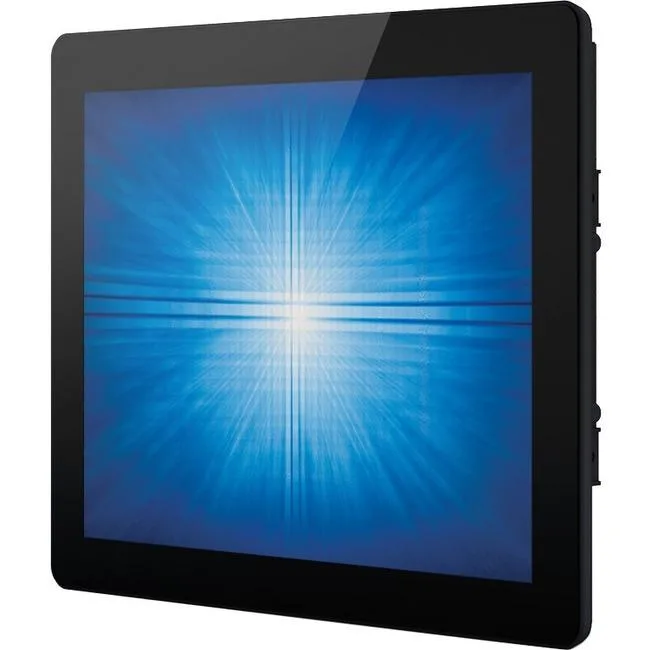

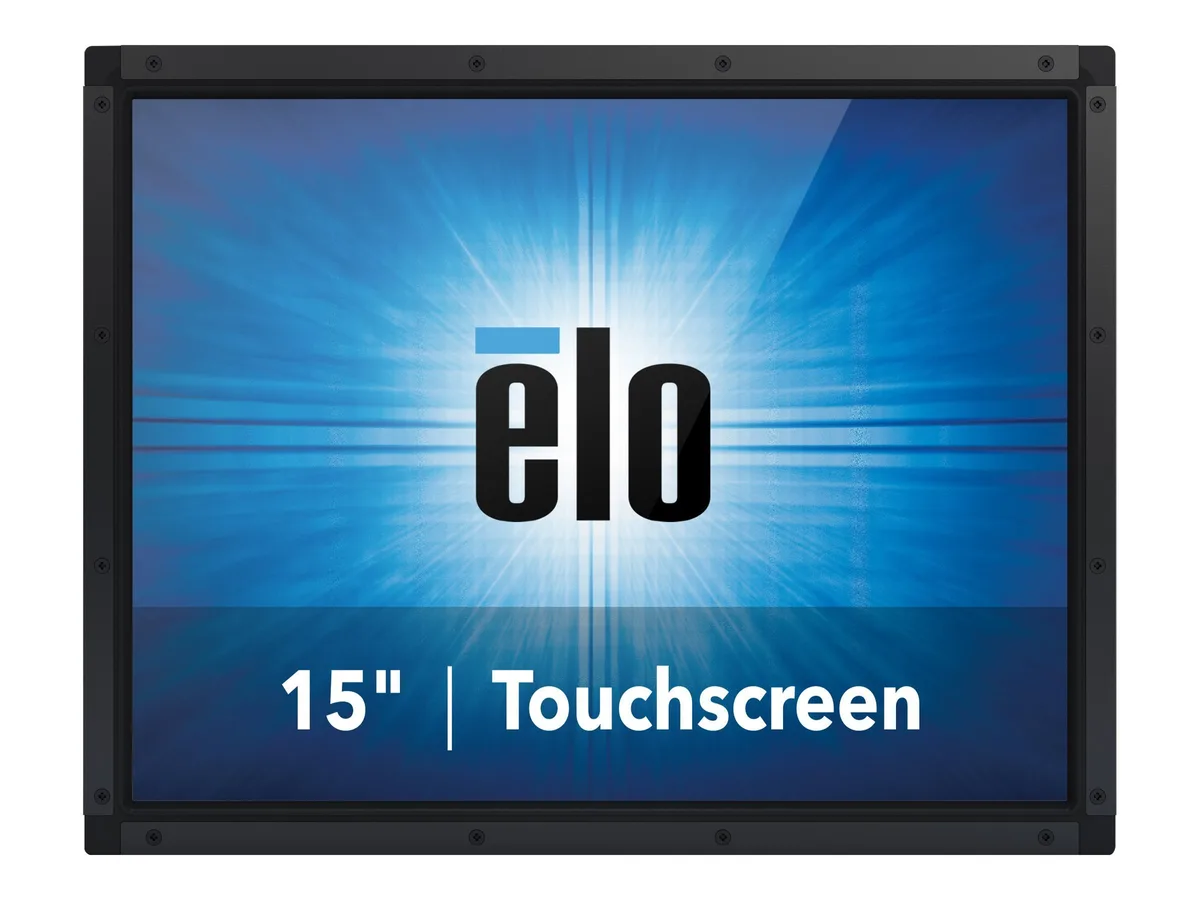

15-inch open-frame touch display

The Elo 1590L is a 15-inch open-frame LCD touch display with a 1024 x 768 resolution and 250 cd/m² brightness. It uses LED backlight technology and offers a 700:1 contrast ratio with a 16ms response time. The unit is designed for integration into kiosks, retail self-service, casino, amusement and industrial automation environments.

Sealed touchscreen with multiple video inputs

The touchscreen is sealed against dirt, dust and liquids to simplify integration into a final enclosure. Connectivity includes DisplayPort, HDMI and VGA inputs for flexible signal routing. Wide viewing angles of 160 degrees horizontal and 140 degrees vertical maintain image clarity from various positions. Power consumption is 12.5 W on, 1.5 W sleep and 0.5 W off using a 12 VDC supply.

IntelliTouch SAW technology with mounting brackets

The model E326738 employs IntelliTouch Surface Acoustic Wave technology for single-touch operation with drift-free performance. Included accessories are an HDMI cable, VGA cable, RJ45 OSD remote, touch USB cable, user manual CD, quick install guide and L-shaped side-mount brackets with screws. An EEI label and Japan Class-B information sheet are also supplied.

Highlights

  • 15-inch open-frame touch display fits tight kiosk spaces
  • 1024 x 768 resolution delivers clear visuals for interactive signage
  • 250 cd/m² brightness ensures readable content in indoor environments
  • LED backlight cuts power use to 12.5 W while reducing heat output
  • Sealed touchscreen resists dust and liquids for reliable integration

Specifications

BrandELO TOUCHSYSTEMS
ModelE326738
Cabinet ColorBlack
Screen Size15"
Resolution1024 x 768
Display Colors16.2 Million
Brightness250 cd/m2
Contrast Ratio700:1
Response Time16ms
Horizontal Refresh Rate+/-80 degree or 160 degree total
Vertical Refresh Rate+-70 degree or 140 degree total
Power Supply12VDC +/- 5%
Power ConsumptionOn: 12.5 W Sleep: 1.5 W Off: 0.5W
FeaturesTouch Technology & Capacity: 5-Wire Resistive (AccuTouch) - Single-Touch
Touch Interface
TouchPro PCAP - USB
AccuTouch, IntelliTouch, SecureTouch - Dual serial/USB
On Screen Display
Accessible through switches on the unit’s tethered OSD Control box.
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Through
Languages: English, French, Italian, German, Sp
Shipping weight4.08 kg
Package size427 × 371 × 168 mm

Questions about this item

What video interfaces does the 1590L provide, and which one limits the 1024 x 768 signal?

The display offers DisplayPort, HDMI and VGA inputs; VGA caps the analogue bandwidth, while DisplayPort and HDMI carry the native 1024 x 768 resolution without scaling.

What mounting hardware is included for the open-frame 15-inch chassis?

The box supplies “L” side-mount brackets with screws for securing the unit inside a kiosk or enclosure.

How is the IntelliTouch SAW touchscreen connected, and what step is often missed?

Use the supplied USB touch cable; the common oversight is forgetting to install the Elo driver before calibrating the single-touch surface.
