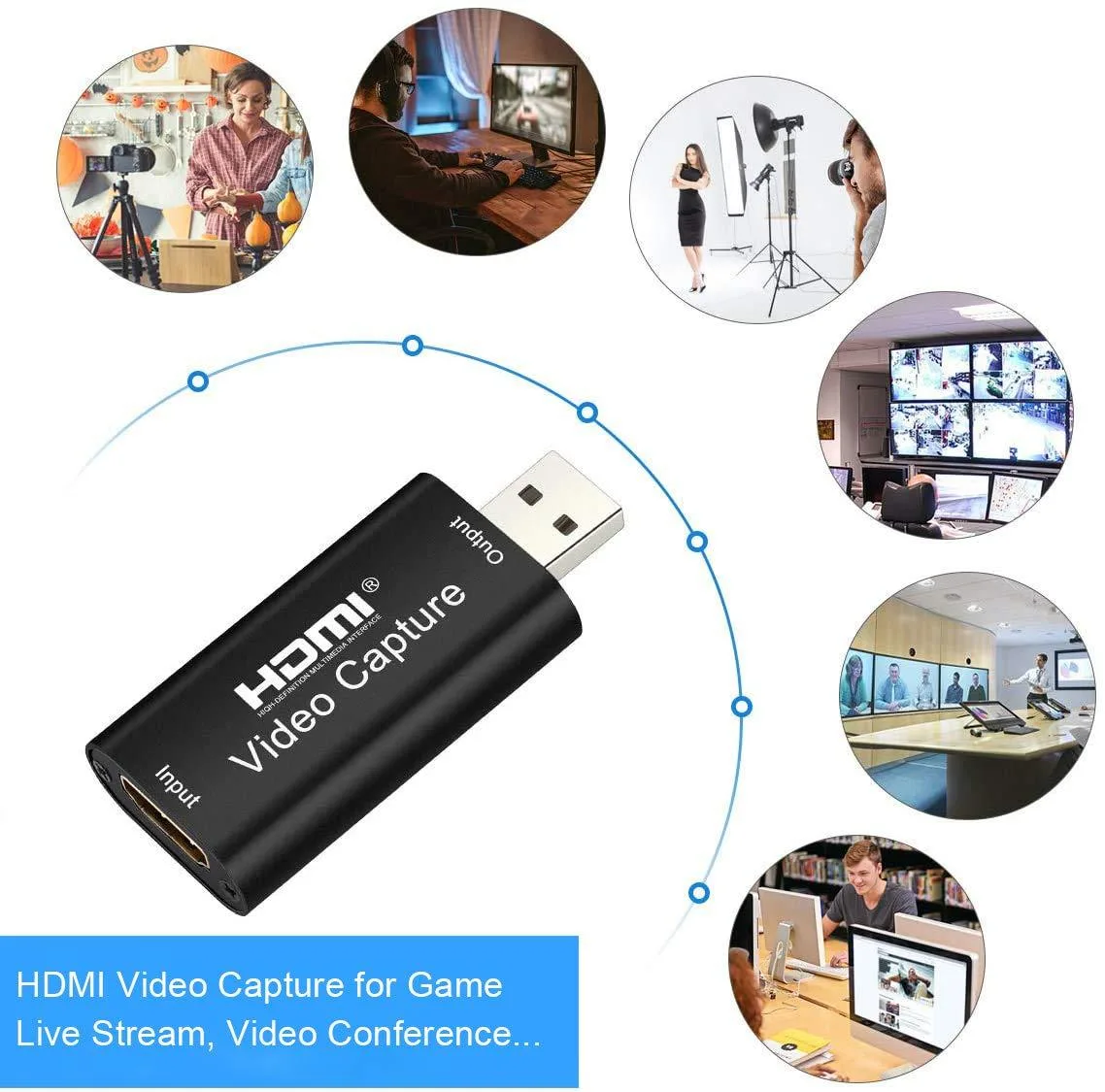

Small black rectangular capture card with HDMI and USB 2.0 ports, 64 by 28 by 13 mm

elgato HDMI Video Capture Card 4K Input 1080P Output USB 2.0

SKU CH-2H7P-2JDXS

Captures 4K HDMI input at 30 Hz and outputs 1080p video via USB 2.0 for streaming

  • Housing ColorBlack
  • SpecificationPC i5-3400 or above; NB i7-3537U 2.0GHZ or above, 1080p, YUV
  • Others4K Input and 1080P Output, Video Recording, 1080p, YUV/JPEG,
  • TypeExternal TV Tuner Box
  • Resolution Support1080P
  • FormatYUV/JPEG
  • 4K input at 30 Hz for detailed source footage
  • 1080p output at 30 Hz for smooth streaming and recording
  • USB 2.0 plug-and-play with no driver or power adapter needed
  • Works with Windows, macOS, Linux and Android for broad software compatibility
  • Compact 64 x 28 x 13 mm body for portable setups

Product identity

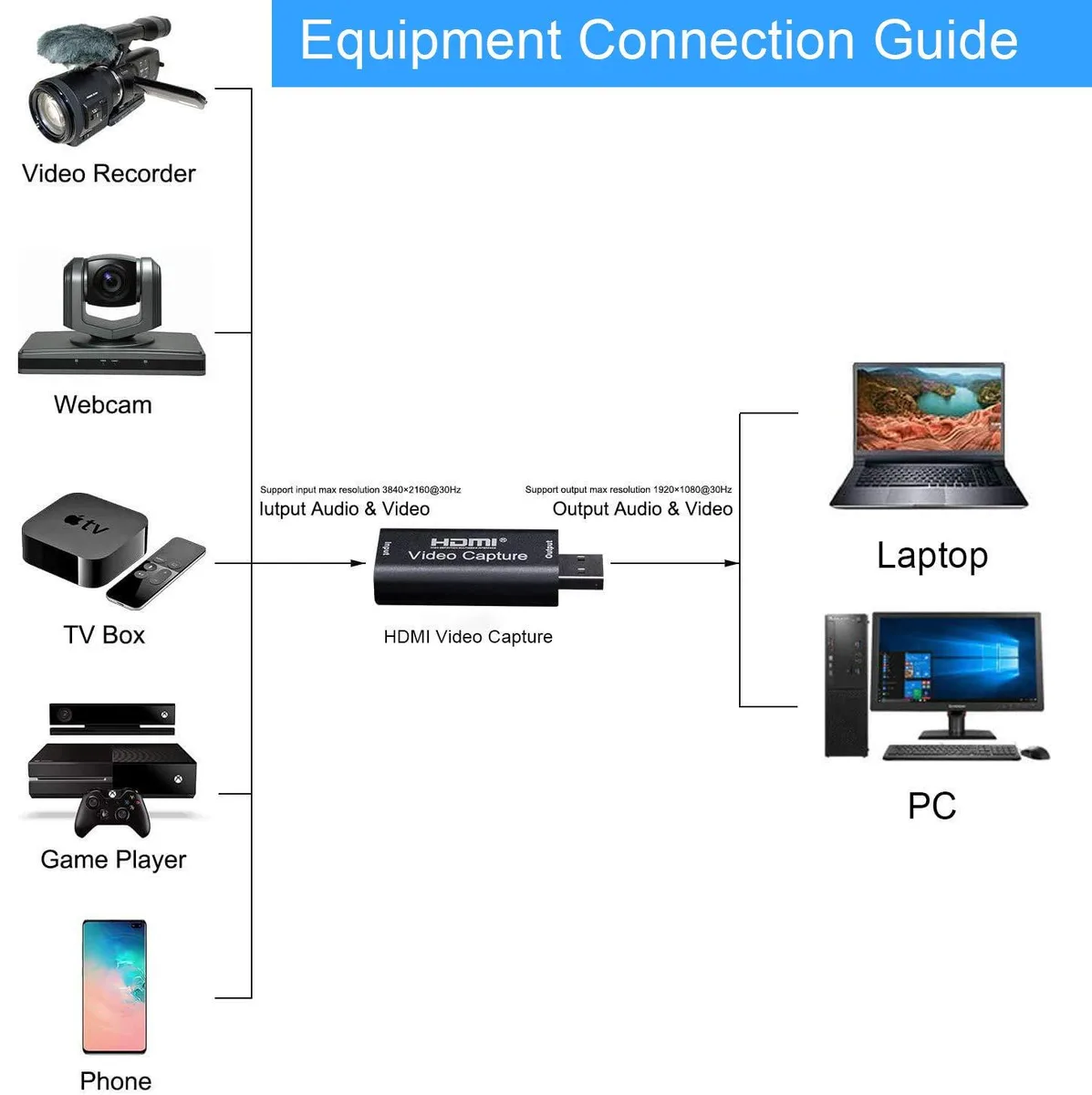

The Elgato 679263979950 is an external HDMI capture device that accepts a 4K signal at 30 Hz and delivers a 1080p stream at 30 Hz over USB 2.0. It is aimed at streamers, educators and remote workers who need a simple way to bring a camera or console feed into OBS, VLC or Potplayer on Windows, macOS or Linux.

Setup requirements

Your computer must meet the minimum CPU guideline of an Intel Core i5‑3400 desktop processor or a Core i7‑3537U mobile chip running at 2.0 GHz. A free USB 2.0 port is required for both data and power, and an HDMI cable is needed to connect the source device. No separate driver installation or external power adapter is necessary.

Sustained operation

The unit draws a maximum of 0.4 A at 5 V DC from the USB bus, so it remains powered as long as the host port supplies current. Video is encoded in YUV or JPEG formats at up to 1080p30, and the compact 64 mm by 28 mm by 13 mm enclosure has no active cooling, making thermal behaviour dependent on the host system’s airflow during long sessions.

Highlights

  • 4K input at 30 Hz for detailed source footage
  • 1080p output at 30 Hz for smooth streaming and recording
  • USB 2.0 plug-and-play with no driver or power adapter needed
  • Works with Windows, macOS, Linux and Android for broad software compatibility
  • Compact 64 x 28 x 13 mm body for portable setups

Specifications

Brandelgato
Series679263979950
Model679263979950
Part Numbervideo-capture-card
Housing ColorBlack
SpecificationPC i5-3400 or above; NB i7-3537U 2.0GHZ or above, 1080p, YUV/JPEG, 4K Input and 1080P Output, Video Recording, Video Capture Card
Others4K Input and 1080P Output, Video Recording, 1080p, YUV/JPEG, PC i5-3400 or above; NB i7-3537U 2.0GHZ or above
TypeExternal TV Tuner Box
Resolution Support1080P
FormatYUV/JPEG
Max Monitor SupportedYUV/JPEG
ColorBlack
VideoYUV/JPEG, 1080p
Audio4K Input and 1080P Output
Device ControlPC i5-3400 or above; NB i7-3537U 2.0GHZ or above
Video Inputhdmi, usb2.0
Video OutputYUV/JPEG
Audio Input4K Input and 1080P Output
Audio Outputusb2.0
LED Indicator4K Input and 1080P Output
Display1080p
System RequirementsPC i5-3400 or above; NB i7-3537U 2.0GHZ or above
Power SupplyPC i5-3400 or above; NB i7-3537U 2.0GHZ or above, false
Power Consumption4K Input and 1080P Output, false
Feature4K Input and 1080P Output
Features4K Input and 1080P Output, Video Recording, linux, macintosh, windows, 1080p
Dimensions14.33in W x 12.83in H x 9.06in D
Weight0.64 ounces
Package ContentVideo Capture Card
Package ContentsVideo Capture Card
Ports Inhdmi, usb2.0
SpecificationsPC i5-3400 or above; NB i7-3537U 2.0GHZ or above, 1080p, YUV/JPEG, 4K Input and 1080P Output, Video Capture Card, 0.64 ounces, 1.7018 L x 4.5974 W x 7.493 H centimeters
ProcessorPC i5-3400 or above; NB i7-3537U 2.0GHZ or above
Graphics CardPC i5-3400 or above; NB i7-3537U 2.0GHZ or above
MemoryPC i5-3400 or above; NB i7-3537U 2.0GHZ or above
Video EncodingHardware Encoding
Video FormatDivx

Questions about this item

Does the capture card include the HDMI and USB cables or must they be purchased separately?

The card itself is supplied without cables; you need an HDMI cable from the source device and a USB 2.0 cable to the computer.

Should I choose the 4K input model or a 1080P input model for my Nintendo Switch?

The Switch outputs 1080P maximum, so this card’s 3840×2160@30Hz input capability is not required; a 1080P input card would be sufficient.

What does the 3840×2160@30Hz input figure mean when I record in OBS?

The card accepts a 4K 30 Hz signal but downscales it to 1920×1080@30Hz YUV/JPEG over USB 2.0, so OBS always receives 1080P 30 fps.
