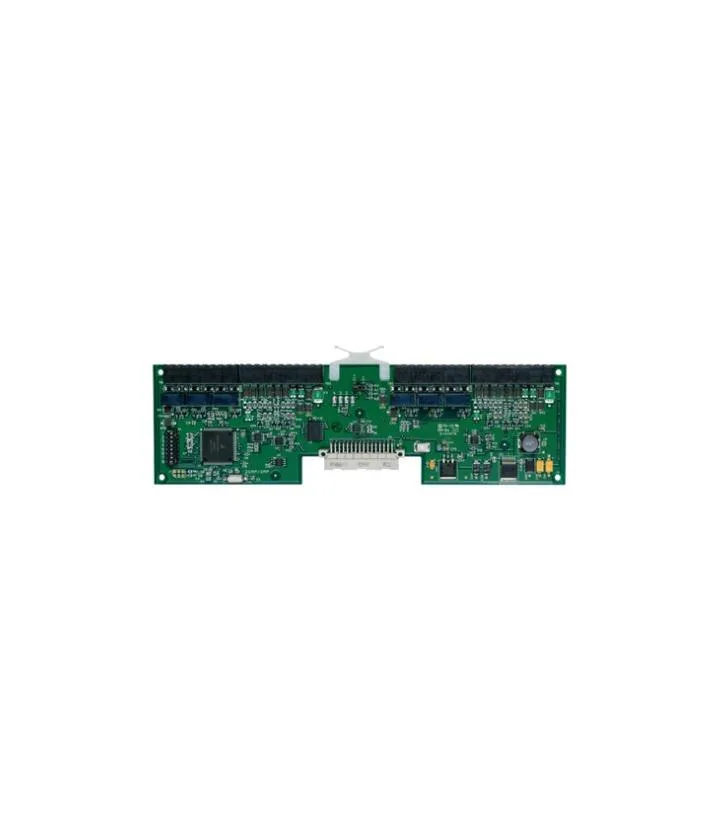

Green circuit board with metal brackets and multiple connectors

ELENE

ELENE LNL-1320-S2RP network card

SKU CH-GAG6-8W1E3 MPN LNL-1320-S2RP

Dual reader interface module with four supervised inputs and six relay outputs for 12 VDC access control systems

  • Supports two readers with 5 VDC or 12 VDC regulated power, 300 mA per port
  • Four supervised inputs using 1K ohm series and parallel end-of-line resistors
  • Six Form-C relay outputs rated at 2A@30VAC/VDC
  • Replaces CASI S2RP with field wiring plug compatibility
  • Mercury authentic hardware for OnGuard integration

Dual Reader Interface Module

The Lenel LNL-1320-S2RP is a Mercury hardware module designed for OnGuard access control systems. It replaces legacy CASI S2RP controllers while maintaining field wiring plug compatibility. Installers can deploy it in retrofit projects that require two reader ports and supervised inputs. The module operates on 12 VDC power.

Sustained Operation

The unit provides two reader ports selectable between 5 VDC and 12 VDC regulated output at 300 mA per port via jumpers. Four supervised inputs use 1K ohm series and parallel end-of-line resistors for continuous monitoring. Six Form-C relay outputs switch up to 2A at 30 VAC or VDC resistive load. Reader communications support Wiegand, Clock and Data, or Supervised F2F protocols.

Thermals Noise Power

The module draws power from a 12 VDC supply to drive readers, inputs and relays during normal operation. No active cooling components are included, so heat dissipation relies on the enclosure environment. Relay switching and reader power delivery represent the primary electrical load. Acoustic output is limited to mechanical relay actuation.

Highlights

  • Supports two readers with 5 VDC or 12 VDC regulated power, 300 mA per port
  • Four supervised inputs using 1K ohm series and parallel end-of-line resistors
  • Six Form-C relay outputs rated at 2A@30VAC/VDC
  • Replaces CASI S2RP with field wiring plug compatibility
  • Mercury authentic hardware for OnGuard integration

Specifications

No published specifications for this item yet.

Questions about this item

How much power does each reader port on the LNL-1320-S2RP supply continuously?

Each reader port provides 5 VDC or 12 VDC regulated at 300 mA, selectable by jumper.

What wiring must already be in place for the four supervised inputs to function?

Each input requires a 1K ohm resistor in series and a 1K ohm resistor in parallel for end-of-line supervision.

Will the six Form-C relay outputs on this module switch the same loads as the CASI S2RP it replaces?

Yes, the relays are rated 2A at 30 VAC or VDC and the module is field-wiring plug compatible with the CASI S2RP.
