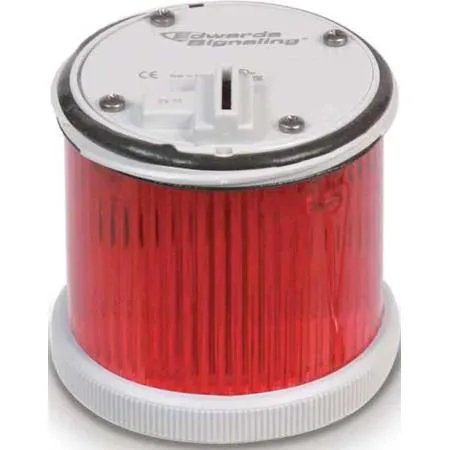

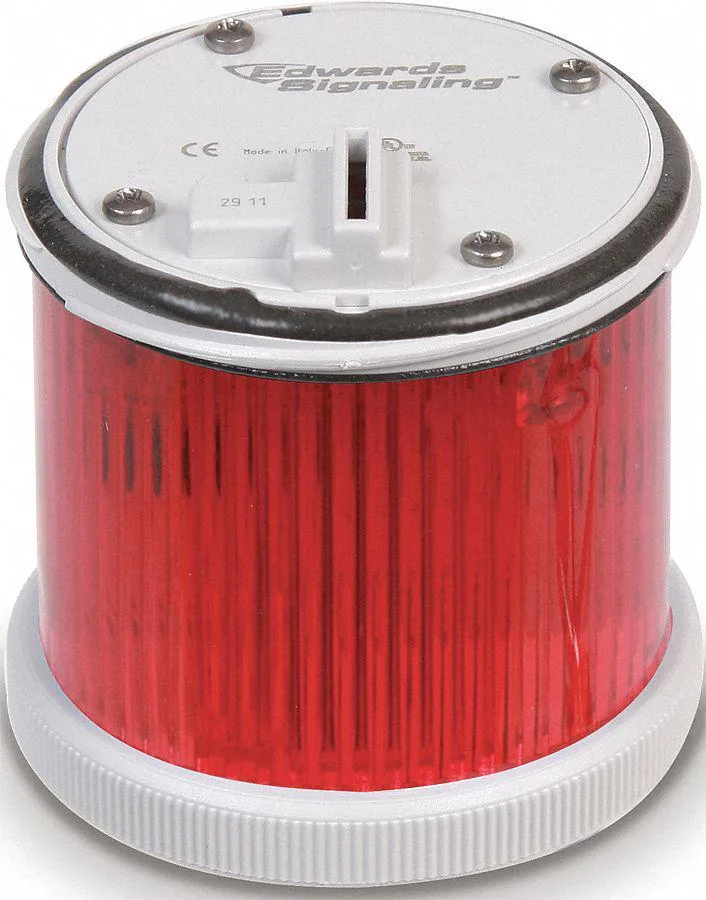

Red cylindrical LED tower light module 70 mm diameter polycarbonate housing 120V AC

EDWARDS-SIGNALING

EDWARDS-SIGNALING 270LEDMR120A Tower Light Module Red 70 mm 120V AC traffic safety equipment

SKU CH-4H2K-NDZ1A

Red 70 mm LED tower light module for 120 V AC systems, flashing 75 to 85 times per minute with a 100 000 hour lamp life

  • ColorRed
  • Red LED signal visible at 70 mm diameter
  • NEMA 3R and 4X rated for harsh environments
  • 75 to 85 flashes per minute alert rate
  • 100,000 hour LED lamp life reduces maintenance
  • Operates from -22 to 122 degrees F

Tower Light Module Red 70 mm 120V AC

The Edwards-Signaling 270LEDMR120A is a red LED tower light module designed for facility and traffic safety equipment. It operates on 120V AC power and features a 70 mm diameter polycarbonate housing and lens. The unit is rated NEMA 3R and NEMA 4X for indoor and outdoor use, and carries CE and cULus approvals for compliance with safety standards.

Sustained Operation and Environmental Tolerance

The LED technology provides a lamp life of 100,000 hours while drawing only 0.035A of current. It flashes at a rate of 75 to 85 flashes per minute for consistent visual signalling. The module functions across an operating temperature range of -22 degrees to 122 degrees Fahrenheit, maintaining performance in extreme cold and heat. The polycarbonate construction resists corrosion and UV exposure over long periods.

Installation and Compatibility Notes

The module measures 3.11 inches in height and 2.83 inches in width, fitting 200 Class 70mm stacklight bases. A gasket is included to maintain the NEMA 4X seal during mounting. Buyers who need a different voltage, colour, or diameter cannot use this specific module. It is not suited for applications requiring steady-burn illumination or programmable flash patterns.

Highlights

  • Red LED signal visible at 70 mm diameter
  • NEMA 3R and 4X rated for harsh environments
  • 75 to 85 flashes per minute alert rate
  • 100,000 hour LED lamp life reduces maintenance
  • Operates from -22 to 122 degrees F

Specifications

ColorRed
BrandEDWARDS SIGNALING

Questions about this item

How much heat and power does the 120V AC LED module add when it runs continuously?

The LED draws 0.035 A at 120 V AC, so heat output is minimal and power consumption stays very low even during all-day operation.

Which stacklight base must I already own for this 70 mm red module to mount and operate?

It is designed for the 200 Class 70 mm stacklight; the module includes a gasket and fits directly onto that base.

Will the polycarbonate housing and NEMA 3R/4X ratings hold up next to older metal-bodied beacons on the same pole?

Yes, the polycarbonate housing and lens are rated NEMA 3R and 4X and operate from -22 °F to 122 °F, matching or exceeding older beacon environments.
