Small transparent relay module with screw terminals and DIN rail clip

Eaton

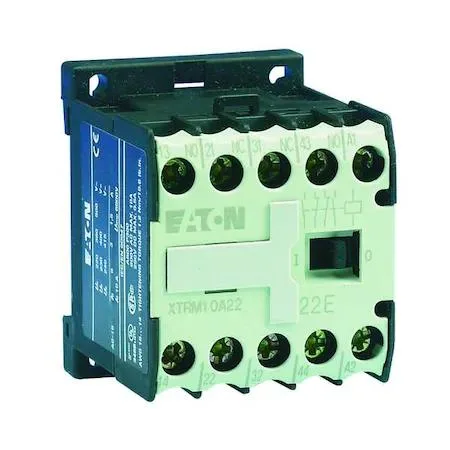

Eaton XTRM10A22TD IEC Mini Control Relay 2NO/2NC 24VDC 10A video accessory

SKU CH-F1SD-WARE5

IEC mini control relay with 2NO/2NC contacts, 10 A rating, 24 V DC coil, and DIN-rail screw-terminal mounting

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • 2NO/2NC contact form gives flexible switching options
  • 24 V DC coil voltage suits low-voltage control circuits
  • 10 A current rating handles substantial load currents
  • DIN rail mounting enables quick panel installation
  • IP20 rating provides finger-safe protection

Eaton XTRM Mini Control Relay

The Eaton XTRM10A22TD is an IEC-style mini control relay designed for industrial automation panels. It provides two normally-open and two normally-closed contacts in a compact 45 mm frame. The transparent housing allows visual inspection of contact status. It mounts directly on standard DIN rail for quick installation.

Upgrading from bulkier contactors

This relay replaces larger contactors when switching loads up to 10 A at 240 V AC or 2.5 A at 24 V DC. The 24 V DC coil draws only 2.6 W, reducing control-circuit power compared to older models. The jump is worth it when panel space is limited and you need four isolated contacts in a single 45 mm module.

Screw-terminal wiring limits

Screw terminals accept solid or stranded wire but require proper torque to maintain 10 A capacity. The IP20 rating means fingers are protected but the relay is not suited for wet or dusty environments without an enclosure. Maximum operating temperature is 122 °F, so ventilation is needed in hot cabinets. The 60 Hz rating applies to AC coil operation; DC coil use avoids frequency concerns.

Highlights

  • 2NO/2NC contact form gives flexible switching options
  • 24 V DC coil voltage suits low-voltage control circuits
  • 10 A current rating handles substantial load currents
  • DIN rail mounting enables quick panel installation
  • IP20 rating provides finger-safe protection

Specifications

BrandEaton
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

What DIN-rail width does the 45 mm frame mount on?

The relay uses standard DIN-rail mounting; the 45 mm frame size matches common rail profiles.

Which screw terminals accept the coil and contact wires?

All connections use screw terminals — two for the 24 V DC coil and four for the 2 NO/NC contacts rated 10 A.

When should the relay be replaced based on temperature limits?

Replace if the enclosure exceeds 122 °F maximum operating temperature, as higher heat degrades contact life.
