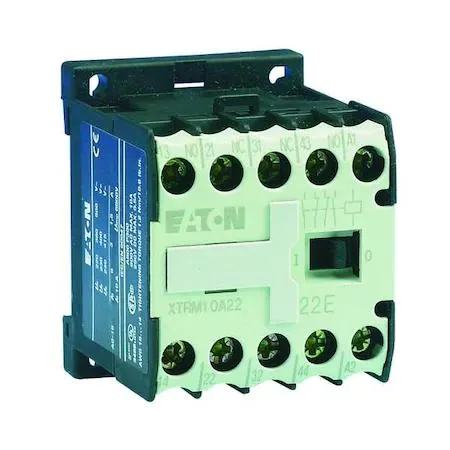

Transparent IEC mini control relay with screw terminals for DIN rail mounting

Eaton

Eaton XTRM10A22T 24V AC Mini Control Relay 10A 2NO/2NC

SKU CH-GVEJ-R4YB8

A 24 V AC mini control relay with 2NO/2NC contacts rated 10 A for DIN-rail mounting

  • TypeNon-Latching
  • ColorTransparent
  • 10 A switching capacity for demanding loads
  • 2 NO and 2 NC contacts for flexible circuit design
  • 24 V AC coil voltage matches common control systems
  • DIN rail mounting for quick panel installation
  • IP20 protection guards against accidental contact

Compact IEC relay for 24 V AC panels

The Eaton XTRM10A22T is a non-latching mini control relay designed for DIN-rail mounting inside electrical enclosures. It operates on a 24 V AC coil and provides two normally open and two normally closed contacts rated at 10 A for AC loads up to 240 V. The transparent housing allows visual inspection of contact status while the screw terminals accept standard wiring. IP20 protection and a 45 mm frame suit industrial control cabinets.

Replaces larger contactors in space-limited cabinets

When a full-size contactor is unnecessary for circuits up to 10 A, this relay reduces panel width and cuts coil consumption to 3.9 VA at 50/60 Hz. The jump is worth it where DIN-rail space is scarce and switching duty stays within the 2.5 A DC or 6 A AC contact ratings. Existing XTRM series users can add the unit without changing mounting hardware or wiring layout.

Suits panel builders wiring lighting.

Installers needing four-pole switching in a 45 mm footprint will find the screw-terminal connection familiar and fast. Buyers who want higher DC breaking capacity, a different coil voltage or latching operation should look at other relay families because this model is fixed at 24 V AC non-latching with the stated contact ratings.

Highlights

  • 10 A switching capacity for demanding loads
  • 2 NO and 2 NC contacts for flexible circuit design
  • 24 V AC coil voltage matches common control systems
  • DIN rail mounting for quick panel installation
  • IP20 protection guards against accidental contact

Specifications

BrandEaton
ModelXTRM10A22T
TypeNon-Latching
ColorTransparent

Questions about this item

Will the 45 mm frame size fit a standard DIN rail in my panel?

The relay uses IEC-style DIN rail mounting with a 45 mm frame and a body width of 1.77 in, matching common rail profiles for mini control relays.

How do I wire the coil and contacts on the screw terminals without a wiring diagram?

Connect 24 V AC across the coil terminals, then use the four screw terminals for the 2NO/2NC contacts rated at 10 A AC (6 A @ 240 V) and 2.5 A DC @ 24 V.

When should I plan to replace the relay given the 2.500 non-latching cycle rating?

The 2.500 non-latching cycle rating indicates mechanical endurance; replace the unit when contact resistance rises or switching becomes unreliable in your 24 V AC, 50/60 Hz application.
