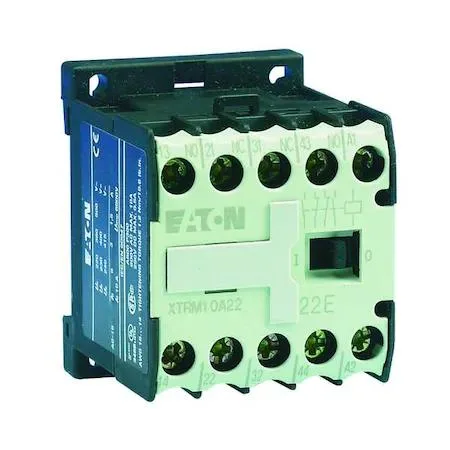

Transparent IEC mini control relay with screw terminals for DIN rail mounting

Eaton

Eaton XTRM10A22B 10A 240V AC Mini Control Relay 2NO/2NC video accessory

SKU CH-AGWG-NS4JR

A DIN-rail IEC mini control relay with 2NO/2NC contacts rated 10 A at 240 V AC and a 220/240 V AC coil

  • TypeNon-Latching
  • ColorTransparent
  • 10 A AC switching capacity for reliable load control
  • 2NO/2NC contact form enables flexible circuit design
  • 220/240 V AC coil voltage suits standard mains supplies
  • 9 VA power consumption keeps panel energy use low
  • IP20 rating and DIN-rail mount simplify cabinet installation

Product identity

The Eaton XTRM10A22B is a non-latching mini control relay designed for 240 V AC circuits. It provides two normally open and two normally closed contacts rated at 10 A for AC switching and 2.5 A at 24 V DC. The unit suits panel builders and maintenance engineers who need reliable IEC-style switching in a compact frame.

Build and connections

A transparent 45 mm housing encloses screw terminals for secure wire termination. DIN-rail mounting allows quick installation inside standard enclosures without tools. The relay draws 3.9 VA coil power and meets IP20 protection, so fingers or tools cannot reach live parts during routine inspection.

Interface limits

Switching capacity is limited to 6 A at 240 V AC and 2.5 A at 24 V DC, so loads above those ratings require a larger contactor. The coil operates on 220/240 V AC at 50/60 Hz only; other control voltages are not supported. Maximum ambient temperature is 122 °F, restricting use in unventilated cabinets that exceed this value.

Highlights

  • 10 A AC switching capacity for reliable load control
  • 2NO/2NC contact form enables flexible circuit design
  • 220/240 V AC coil voltage suits standard mains supplies
  • 9 VA power consumption keeps panel energy use low
  • IP20 rating and DIN-rail mount simplify cabinet installation

Specifications

BrandEaton
ModelXTRM10A22B
TypeNon-Latching
ColorTransparent

Questions about this item

What screw-terminal interface does the XTRM10A22B use for its 10 A contacts?

The relay connects through screw terminals rated for 6 A at 240 V AC and 2.5 A at 24 V DC.

What are the exact body dimensions for panel space planning?

The housing measures 1.77 in wide, 1.81 in high and 2.05 in deep with a 45 mm frame size.

How is the coil wired on this 240 V AC relay and what mistake should be avoided?

Apply 220/240 V AC at 50/60 Hz to the coil terminals; do not exceed the 3.9 VA power rating or the 122 °F operating limit.
