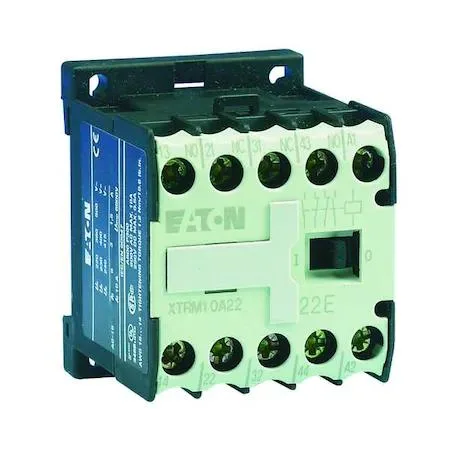

Transparent IEC mini control relay, DIN-rail mount, screw terminals, 45 mm frame

Eaton

Eaton XTRM10A22A Mini Control Relay 2NO/2NC 120V AC 10A

SKU CH-J8WS-XFQFV

IEC mini control relay with 2NO/2NC contacts, 10 A rating, 120 V AC coil, DIN-rail mount and screw terminals

  • TypeNon-Latching
  • ColorTransparent
  • 2 NO and 2 NC contacts provide flexible switching logic
  • 10 A AC rating handles moderate control loads
  • 120 V AC coil suits standard panel voltages
  • 45 mm frame fits tight DIN-rail spaces
  • IP20 protection guards against finger contact

Compact DIN-Rail Relay for 120 V AC Control Circuits

The Eaton XTRM10A22A is a 45 mm IEC mini control relay rated at 10 A with a 2NO/2NC contact configuration. It operates from a 110/120 V AC coil and mounts on standard DIN rail using screw terminals. The transparent housing allows visual inspection of contact status in industrial panels.

Upgrade from Larger or Lower-Current Relays

This model replaces bulkier relays when panel space is limited and a 10 A AC rating at 240 V or 2.5 A DC at 24 V meets the load requirements. The jump is worthwhile when a non-latching relay with 3.9 VA coil consumption and IP20 protection simplifies wiring and reduces enclosure depth.

Fits 45 mm Frame Panels with Screw-Terminal Wiring

The relay needs a DIN rail cut-out and 120 V AC control supply; it frees up depth behind the rail with a 2.05 in body and 1.77 in width. No additional mounting hardware is required beyond the rail, and the screw terminals accept standard ferrules for secure connections.

Highlights

  • 2 NO and 2 NC contacts provide flexible switching logic
  • 10 A AC rating handles moderate control loads
  • 120 V AC coil suits standard panel voltages
  • 45 mm frame fits tight DIN-rail spaces
  • IP20 protection guards against finger contact

Specifications

BrandEaton
ModelXTRM10A22A
TypeNon-Latching
ColorTransparent

Questions about this item

Will the 45 mm frame size fit on a standard DIN rail?

The relay uses DIN rail mounting style and has a 45 mm frame size, so it clips onto standard DIN rails used in control panels.

Which coil terminals should I wire for 120 V AC operation?

Connect the supply to the coil terminals rated for 110/120 V AC at 50/60 Hz; the coil draws 3.9 VA.

How often should the screw terminals be re-tightened?

Check and re-tighten the screw terminals periodically, especially after the first few thermal cycles, to maintain reliable contact at the 10 A rating.
