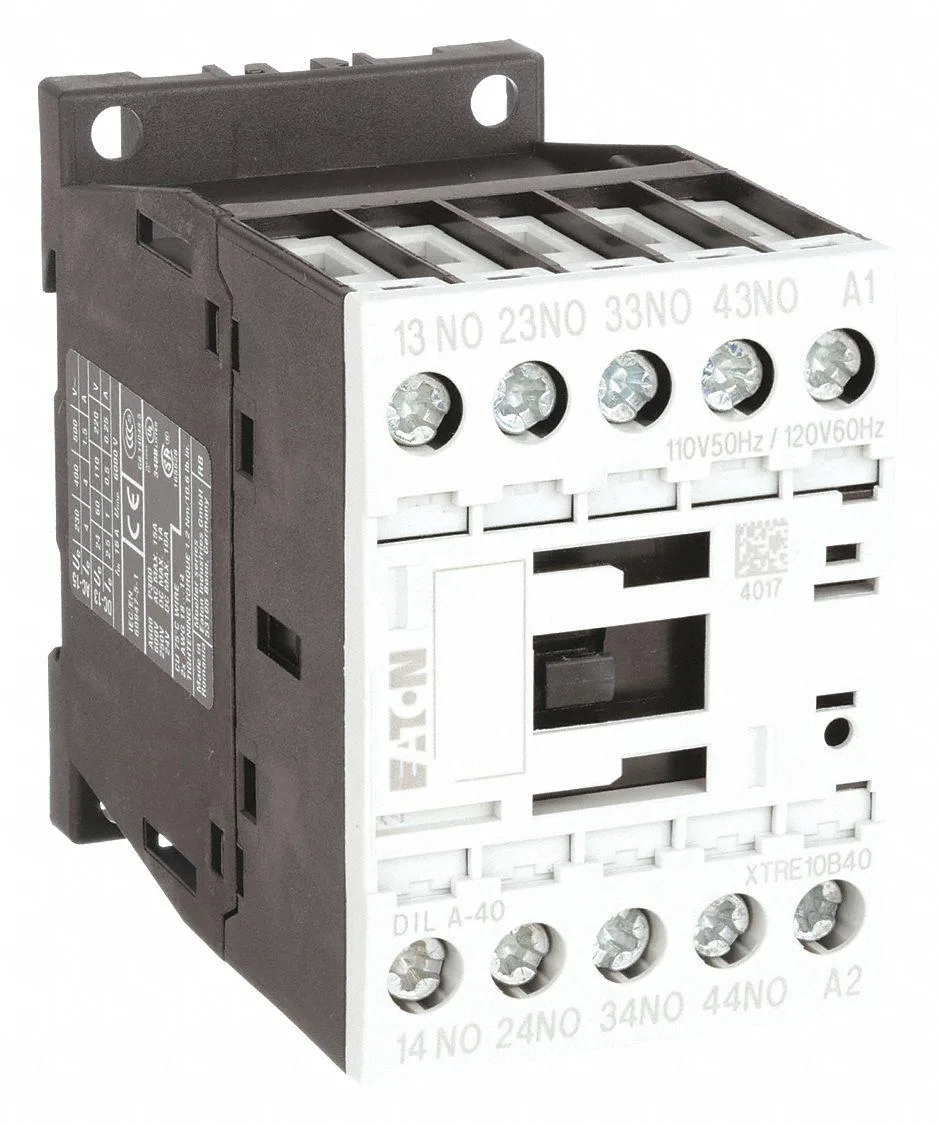

Transparent IEC control relay with screw terminals, DIN rail mount, 45 mm frame, 1.77 in wide, 2 in high, 2.97 in deep

Eaton

Eaton XTRE10B40A control relay 4NO 110/120VAC 10A

SKU CH-WDF6-AF4YC

An IEC control relay with four normally-open contacts rated 10 A at 24 V DC and 6 A at 240 V AC, coil voltage 110/120 V AC, screw terminals and DIN-rail mounting

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Four normally open contacts simplify control wiring
  • 10 A AC rating handles standard industrial loads
  • 110/120 V AC coil matches common panel voltages
  • DIN rail mounting fits 45 mm frame enclosures
  • IP20 rating protects terminals in cabinet environments

Industrial control relay

The Eaton XTRE10B40A is a DIN-rail mounted IEC control relay designed for industrial electrical automation. It switches up to 10 amperes on four normally open contacts with a 110/120 volt AC coil. The transparent housing allows visual inspection of contact status.

Upgrading contact capacity

This relay replaces lower-rated switching devices when circuits demand a 10 ampere AC or DC contact rating. The jump is worth it when existing relays cannot handle 6 amperes at 240 volts AC or 10 amperes at 24 volts DC. It fits directly into Series XTRE compatible installations.

Screw terminal limits

Screw terminals accept solid or stranded wire within the relay's 45 millimetre frame size. The IP20 rating protects against solid objects but not water ingress, restricting use to protected enclosures. Operation is rated up to 140 degrees Fahrenheit at 50/60 hertz with 3.3 VA coil consumption.

Highlights

  • Four normally open contacts simplify control wiring
  • 10 A AC rating handles standard industrial loads
  • 110/120 V AC coil matches common panel voltages
  • DIN rail mounting fits 45 mm frame enclosures
  • IP20 rating protects terminals in cabinet environments

Specifications

BrandEaton
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

What DIN rail width does the 45 mm frame relay mount on?

The relay uses DIN rail mounting; the frame size is 45 mm wide.

How is the 110/120 VAC coil wired, and which step is often missed?

Connect the coil to screw terminals; the step often missed is confirming 50/60 Hz supply before energising.

When should the 10 A contact relay be replaced?

Replace if contacts no longer carry 10 A at 24 V DC or 6 A at 240 V AC, or if the IP20 housing is damaged.
