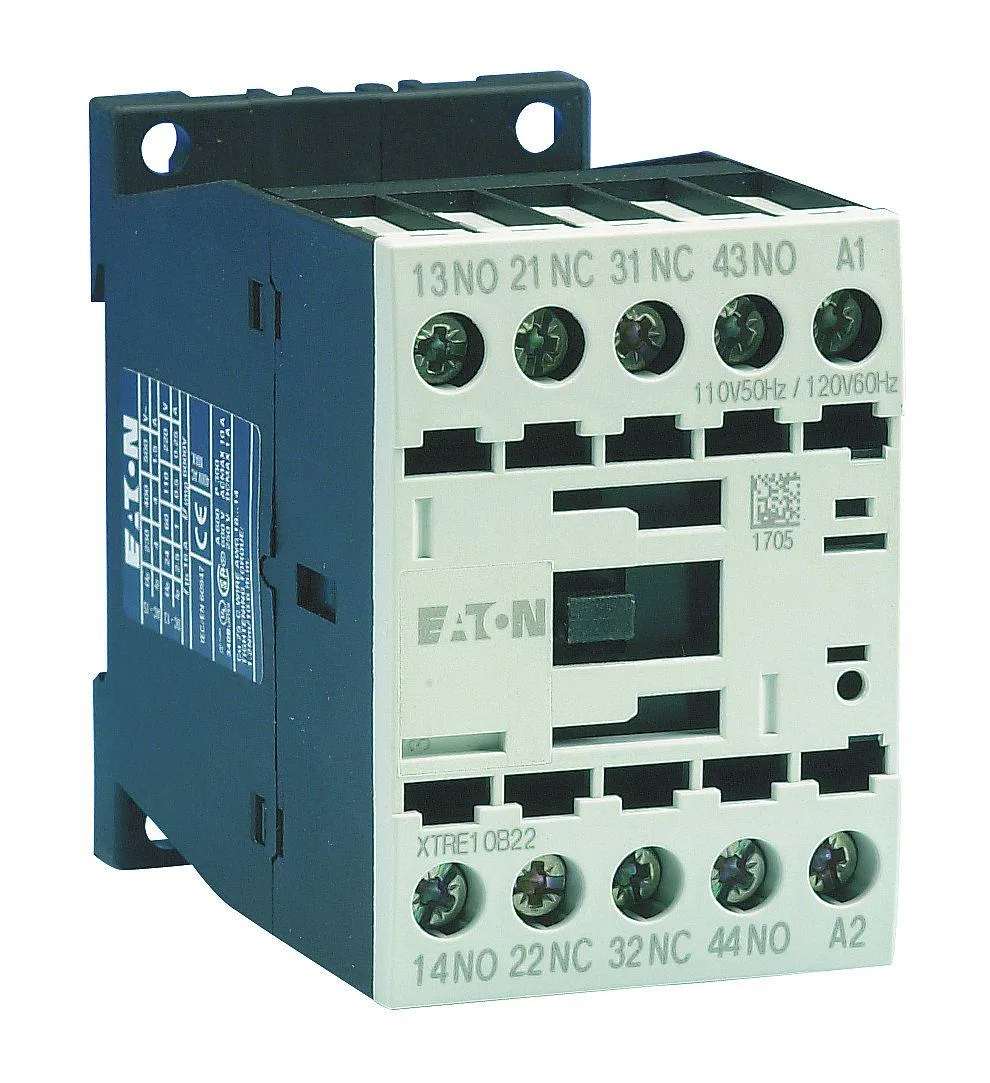

Transparent IEC control relay, DIN-rail mount, screw terminals, 1.77 by 2.97 inches

Eaton

Eaton XTRE10B22TD IEC Control Relay 24V DC 10A 2NO/2NC

SKU CH-2FPY-CMZKG

IEC control relay with 2NO/2NC contacts rated 10 A at 24 V DC and 6 A at 240 V AC, 24 V DC coil, DIN-rail mount, IP20

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • IEC relay rated 10 A for reliable industrial switching
  • 24 V DC coil voltage suits common control circuits
  • 2NO/2NC contact form gives flexible circuit configuration
  • DIN-rail mount with screw terminals enables quick panel installation
  • IP20 enclosure protects contacts in controlled environments

Industrial control relay for 24 V DC systems

The Eaton XTRE10B22TD is an IEC-style control relay rated for 10 A at 24 V DC with a 2NO/2NC contact configuration. It mounts on a DIN rail and uses screw terminals for secure wiring. The transparent housing allows visual inspection of contact status in automation panels.

Verify coil voltage and contact ratings before

Ensure your control circuit supplies exactly 24 V DC to match the coil requirement of this relay. Confirm that the connected loads do not exceed 10 A at 24 V DC or 6 A at 240 V AC for the switching contacts. The unit draws 3 W and operates at 60 Hz within a maximum temperature of 140 degrees F.

DIN rail clip and screw terminals simplify

The relay includes an integrated DIN rail mounting clip that fits standard rails without extra brackets. Screw terminals accept stripped wire directly, removing the need for separate connector blocks. The IP20-rated enclosure protects contacts from finger contact while the transparent cover aids troubleshooting.

Highlights

  • IEC relay rated 10 A for reliable industrial switching
  • 24 V DC coil voltage suits common control circuits
  • 2NO/2NC contact form gives flexible circuit configuration
  • DIN-rail mount with screw terminals enables quick panel installation
  • IP20 enclosure protects contacts in controlled environments

Specifications

BrandEaton
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

What comes in the box with the XTRE10B22TD relay and do I need to buy any mounting hardware separately?

The relay includes screw terminals for wiring and a DIN-rail clip for mounting; no extra hardware is required for standard rail installation.

The part number shows 2NO/2NC contacts — when would I choose this contact arrangement over a different one?

Choose 2NO/2NC when you need two normally-open and two normally-closed circuits from a single 24 V DC coil, giving both make and break paths in one 10 A frame.

The data sheet lists 10 A at 24 V DC and 6 A at 240 V AC — what does that mean for a real 60 Hz control circuit?

In a 60 Hz panel the relay can switch 6 A resistive at 240 V AC or 10 A resistive at 24 V DC, with a 3 W coil draw and 140 °F max ambient.
