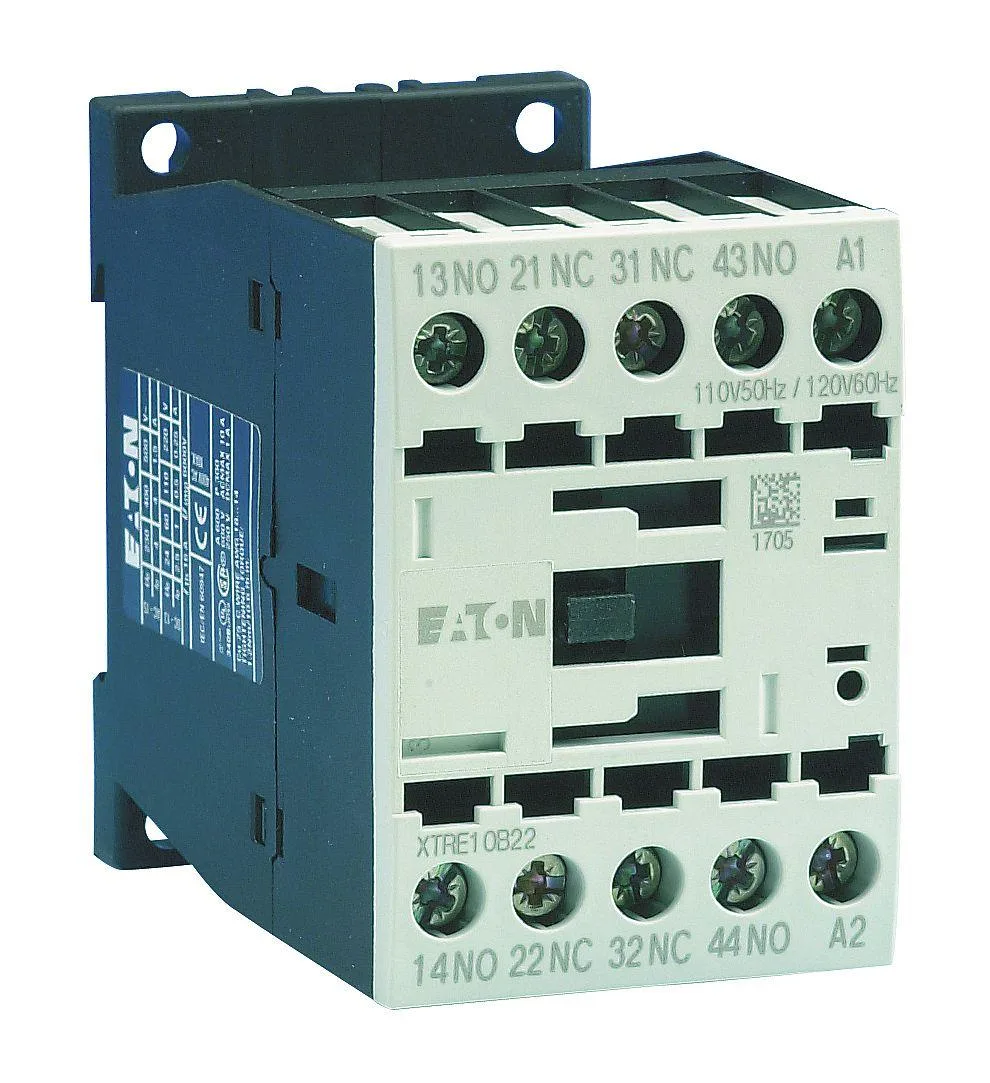

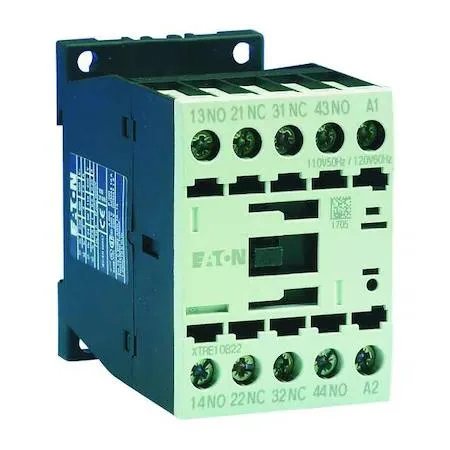

Transparent rectangular relay with screw terminals and DIN rail clip

Eaton

Eaton XTRE10B22T IEC Control Relay 24V AC 10A 2NO/2NC

SKU CH-BQCH-EWPJ1

IEC control relay with 2NO/2NC contacts, 24 V AC coil, 10 A rating and DIN-rail screw-terminal mounting

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • 10 A switching capacity handles industrial loads
  • 24 V AC coil suits standard control circuits
  • 2NO/2NC contacts give flexible circuit design
  • DIN-rail mount fits 45 mm panel spaces
  • IP20 rating protects terminals in cabinets

IEC Control Relay 24V AC 10A

The Eaton XTRE10B22T is an IEC-style control relay rated for 10 A switching current with a 24V AC coil. It provides two normally-open and two normally-closed contacts in a 45 mm frame designed for DIN rail mounting in industrial control panels.

Screw-terminal DIN rail compatibility

Verify that your panel uses standard DIN rail and that wiring uses screw terminals suitable for the relay's 10 A contact rating. The coil requires a 24V AC supply at 50 or 60 Hz, and the contact ratings are 10 A at 24V DC and 6 A at 240V AC. Ensure the IP20 rating meets your enclosure protection needs.

3.3 VA coil consumption and thermal limits

The relay draws 3.3 VA during normal operation and is rated for a maximum operating temperature of 140 degrees F. With an IP20 enclosure and no moving fan parts, it runs silently. The compact body dimensions allow dense rail mounting without additional cooling provisions.

Highlights

  • 10 A switching capacity handles industrial loads
  • 24 V AC coil suits standard control circuits
  • 2NO/2NC contacts give flexible circuit design
  • DIN-rail mount fits 45 mm panel spaces
  • IP20 rating protects terminals in cabinets

Specifications

BrandEaton
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

What comes in the box with the XTRE10B22T relay and is a DIN rail included?

The relay is supplied as a single unit with screw terminals for wiring; a DIN rail is not included and must be purchased separately.

Should I choose the 24 V AC coil version or a different coil voltage for my control panel?

This model has a 24 V AC coil rated for 50/60 Hz; select it only when your control circuit supplies 24 V AC at those frequencies.

What does the 10 A contact rating mean when the relay is installed in a 240 V AC circuit?

The contacts are rated for 6 A at 240 V AC, so the 10 A figure applies to lower voltages such as 24 V DC or 24 V AC.
