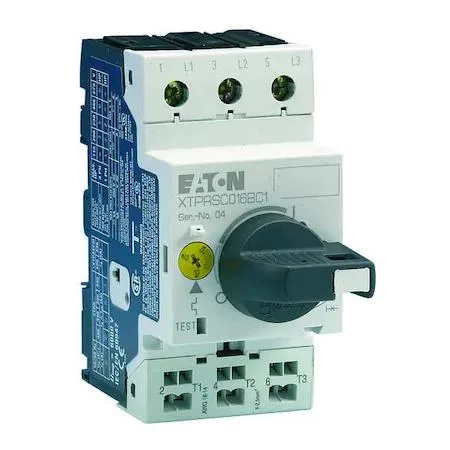

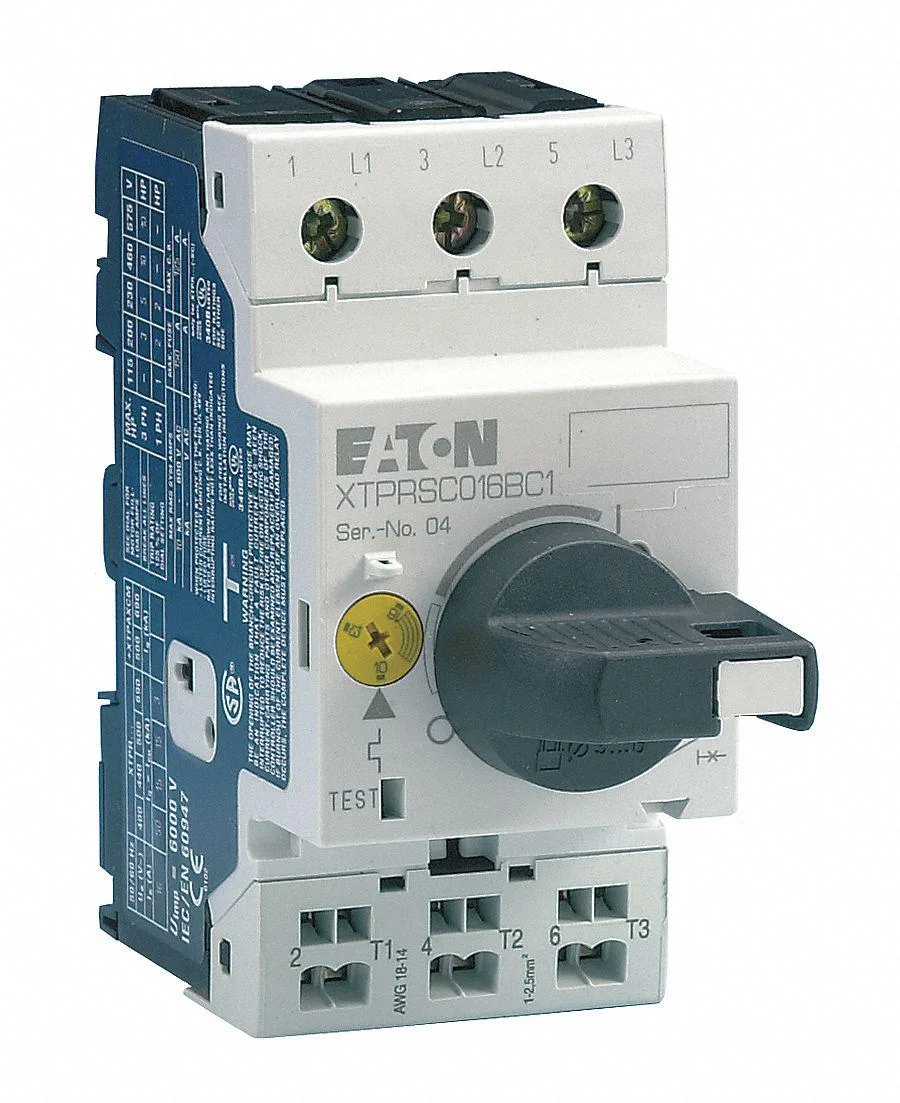

Transparent manual motor protector with selector switch

Eaton

Eaton XTPR032BC1 Manual Motor Protector 32A 600V

SKU CH-4PSG-WJTQ0

A manual motor protector with selector switch for three-phase circuits up to 600 V AC and 32 A

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Protects motors up to 30 hp at 600 V AC
  • Selector-switch operator gives clear manual control
  • Three-pole design handles three-phase loads
  • Adjustable overload relay set to 32 A max
  • Rated for 2 hp single-phase at 120 V AC

Eaton XTPR032BC1 Motor Protector Overview

The Eaton XTPR032BC1 is a manual motor protector rated for 32 A and 600 V AC. It uses a selector switch operator for direct control of three-phase circuits. The unit belongs to the XTPR series and provides thermal overload protection up to 32 A. It suits industrial motor-start applications requiring a compact IEC-style device.

Compatibility Checks Before Ordering

Verify that the motor full-load current does not exceed 32 A and that the supply voltage is 600 V AC or less. Confirm the application uses three-phase power and that the available horsepower ratings match your motor at 208 V, 240 V, 480 V or 600 V. Ensure the panel cut-out and mounting method suit a selector-switch operator format.

Replaces Older Thermal Overload Units

This protector replaces separate thermal overload relays and contactor combinations in starter assemblies. The jump is worth it when you need a single IEC device that combines isolation, switching and adjustable overload protection up to 32 A. It is not for buyers who need magnetic-only circuit-breaker function or remote shunt-trip operation.

Highlights

  • Protects motors up to 30 hp at 600 V AC
  • Selector-switch operator gives clear manual control
  • Three-pole design handles three-phase loads
  • Adjustable overload relay set to 32 A max
  • Rated for 2 hp single-phase at 120 V AC

Specifications

BrandEaton
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

Does the Eaton XTPR032BC1 come with mounting hardware or terminal lugs, or must those be purchased separately?

The supplier data lists only the protector itself — a three-pole selector-switch unit rated 32 A, 600 V AC — so mounting hardware and terminal lugs are not included and must be sourced separately.

How do I choose between the single-phase and three-phase horsepower ratings for my application?

Match the supply voltage and phase count: use the 2 hp at 120 V or 5 hp at 240 V figures for single-phase loads, and the 7 1/2 hp at 208 V, 10 hp at 240 V, 20 hp at 480 V or 30 hp at 600 V figures for three-phase motors.

What does the 32 A current rating mean once the protector is installed in a 600 V three-phase panel?

It sets the maximum continuous current and the overload trip point; the unit will carry up to 32 A on each of the three poles and protect motors up to 30 hp at 600 V AC.
