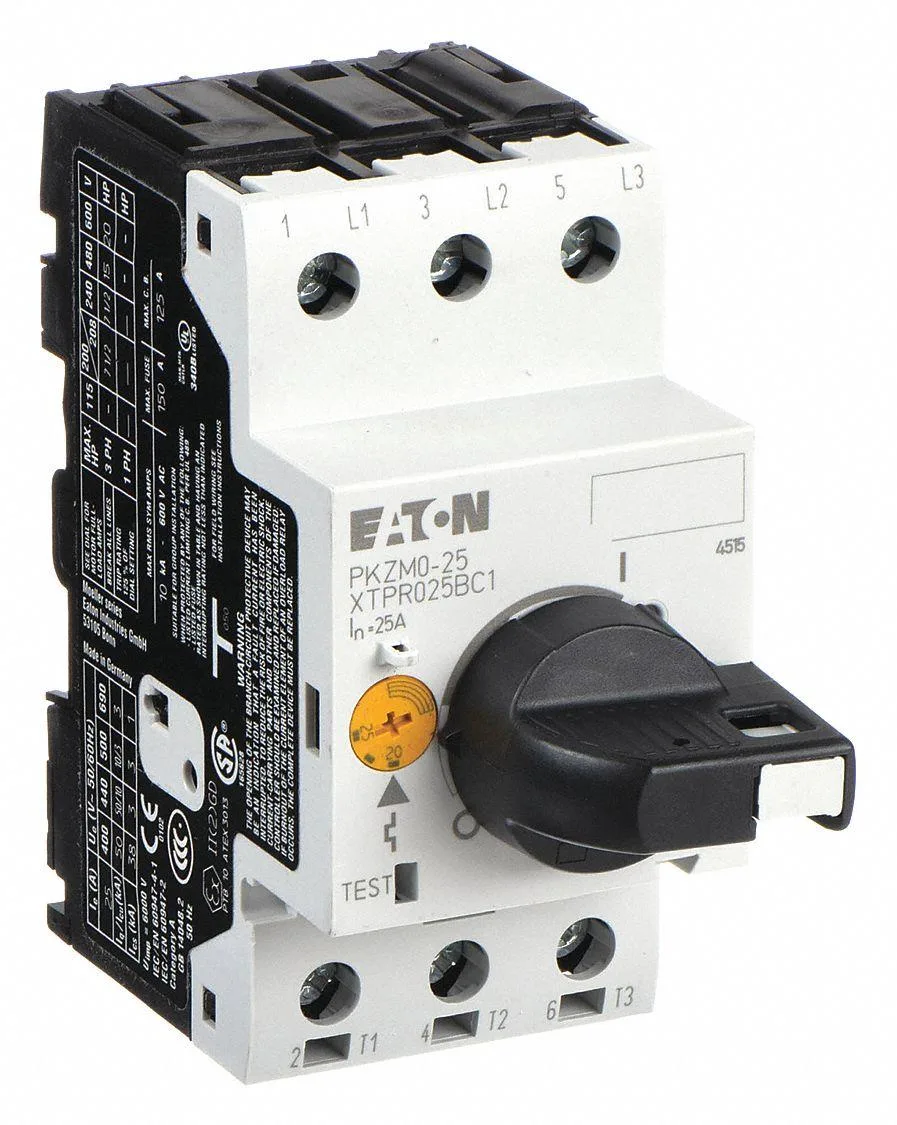

Grey rectangular motor protector with rotary selector switch and three terminal poles

Eaton

Eaton XTPR025BC1 manual motor protector 25 A 600 V 3-pole

SKU CH-7HCK-VAJFM

Protects motors up to 25 A and 600 V with a three-pole rotary selector switch

  • TypeRotary
  • Protects motors up to 20 hp at 600 V AC three-phase
  • Handles 25 A continuous current with 3.800 rotary operator
  • Covers 120 V single-phase up to 1 1/2 hp and 240 V up to 3 hp
  • Three-pole selector switch for 208 V, 240 V, 480 V and 600 V three-phase supplies
  • Maximum overload relay setting fixed at 25 A for consistent trip performance

Eaton XTPR025BC1 manual motor protector

The Eaton XTPR025BC1 is a three-pole manual motor protector rated for 25 A at 600 V AC. It belongs to the XTPR series and uses a rotary operator for direct control. This device suits industrial maintenance teams and panel builders who need compact motor circuit protection without a separate contactor. It covers single-phase motors up to 3 hp at 240 V and three-phase motors up to 20 hp at 600 V.

Rotary operator simplifies panel mounting

The rotary operator mounts on the front of the enclosure, allowing actuation without opening the door. Wiring connects to standard box terminals that accept solid or stranded conductors. A common issue is over-tightening the terminal screws, which can strip the clamping plate and reduce contact pressure. Verifying the trip setting matches the motor nameplate current before energising prevents nuisance tripping on start-up.

Thermal trip handles sustained overloads

The thermal element responds to prolonged overcurrent rather than momentary inrush, so the protector rides through typical motor starting currents. Under continuous load at the 25 A setting, the device maintains its calibration without derating. It interrupts fault currents at 208 V, 240 V, 480 V and 600 V three-phase systems up to the rated horsepower values. The mechanism remains stable during extended duty cycles in ventilated enclosures.

Highlights

  • Protects motors up to 20 hp at 600 V AC three-phase
  • Handles 25 A continuous current with 3.800 rotary operator
  • Covers 120 V single-phase up to 1 1/2 hp and 240 V up to 3 hp
  • Three-pole selector switch for 208 V, 240 V, 480 V and 600 V three-phase supplies
  • Maximum overload relay setting fixed at 25 A for consistent trip performance

Specifications

BrandEaton
ModelXTPR025BC1
TypeRotary

Questions about this item

How can I confirm the Eaton XTPR025BC1 is working correctly after wiring it to a 600 V three-phase motor circuit?

Verify the rotary selector switch moves freely to the ON position and the motor starts without tripping the 25 A overload setting at the rated horsepower for your supply voltage.

What accessories are included with the Eaton XTPR025BC1 and which mounting hardware must be purchased separately?

The unit ships as a complete 3-pole manual motor protector with integral rotary operator; DIN-rail clips, line/load lugs and enclosure kits are sold separately.

Which current setting should I select on the XTPR025BC1 for a 208 V three-phase motor rated at 5 hp?

Set the overload relay to 25 A, the maximum setting, which matches the 5 hp rating at 208 V listed for this protector.
