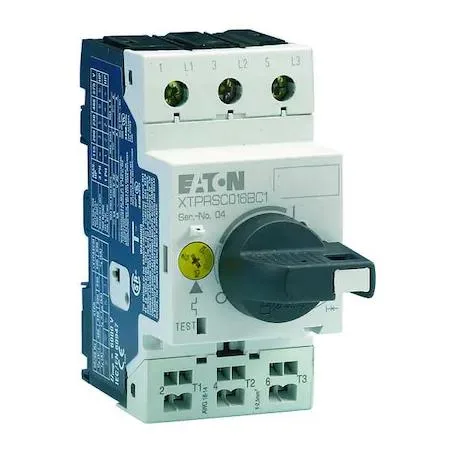

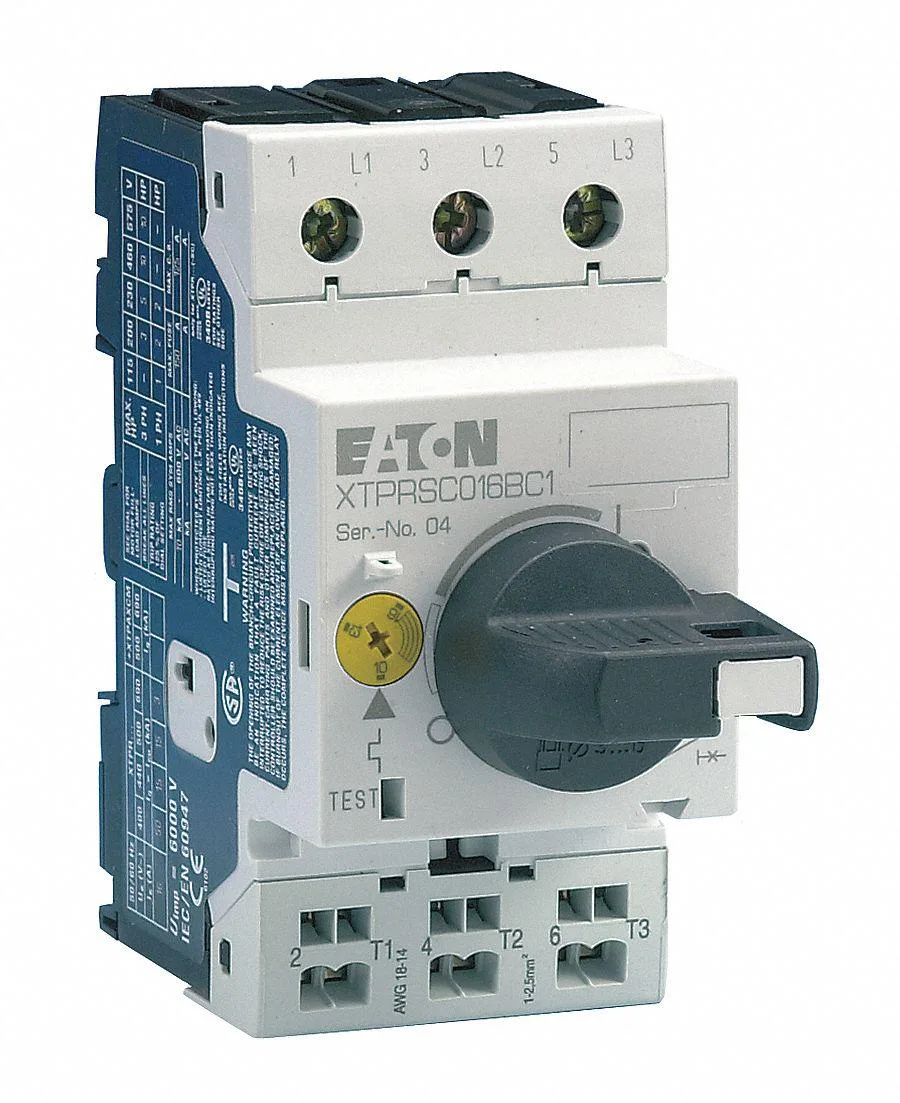

Transparent rectangular industrial motor protector with selector switch visible

Eaton

Eaton XTPR012BC1 Manual Motor Protector 12 A 600 V AC

SKU CH-3G3X-F0VC9

Three-phase manual motor protector rated 12 A and 600 V AC with selector-switch operation

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Protects motors up to 12 A with adjustable thermal overload
  • Handles three-phase loads at 208 V, 240 V, 480 V and 600 V AC
  • Rated for single-phase 1/2 hp at 120 V and 2 hp at 240 V
  • Selector-switch operator gives clear on/off control
  • Built for 600 V AC maximum in industrial control panels

Eaton XTPR012BC1 Motor Protector

The Eaton XTPR012BC1 is a manual motor protector rated for 12 A and 600 V AC. It suits industrial control panels that require IEC-style thermal overload protection with a selector-switch operator. The three-pole unit handles single-phase loads up to 2 hp at 240 V and three-phase motors up to 10 hp at 600 V.

Panel integration and wiring

The device mounts in a panel and connects directly to the motor circuit without a separate contactor. Its selector switch provides local manual control while the thermal element protects against sustained overcurrent. The transparent housing allows visual confirmation of the switch position during commissioning and maintenance.

Selector-switch operation

The built-in selector switch replaces a separate hand-off-auto station for simple installations. Operators can start, stop or isolate the motor at the protector itself, reducing panel components and wiring time. No auxiliary contacts or shunt trips are included, so remote signalling requires additional accessories.

Highlights

  • Protects motors up to 12 A with adjustable thermal overload
  • Handles three-phase loads at 208 V, 240 V, 480 V and 600 V AC
  • Rated for single-phase 1/2 hp at 120 V and 2 hp at 240 V
  • Selector-switch operator gives clear on/off control
  • Built for 600 V AC maximum in industrial control panels

Specifications

BrandEaton
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

At what current will the 12 A thermal trip open under sustained overload?

The thermal element is calibrated to trip at the maximum overload relay setting of 12 A.

How much heat does the three-pole protector dissipate when carrying full-load current all day?

Three poles carrying 12 A each at 600 V AC produce continuous heat inside the enclosure.

What supply voltage and phase arrangement must the installation already provide?

A three-phase supply rated up to 600 V AC with 208 V, 240 V, 480 V or 600 V phase-to-phase voltage.
