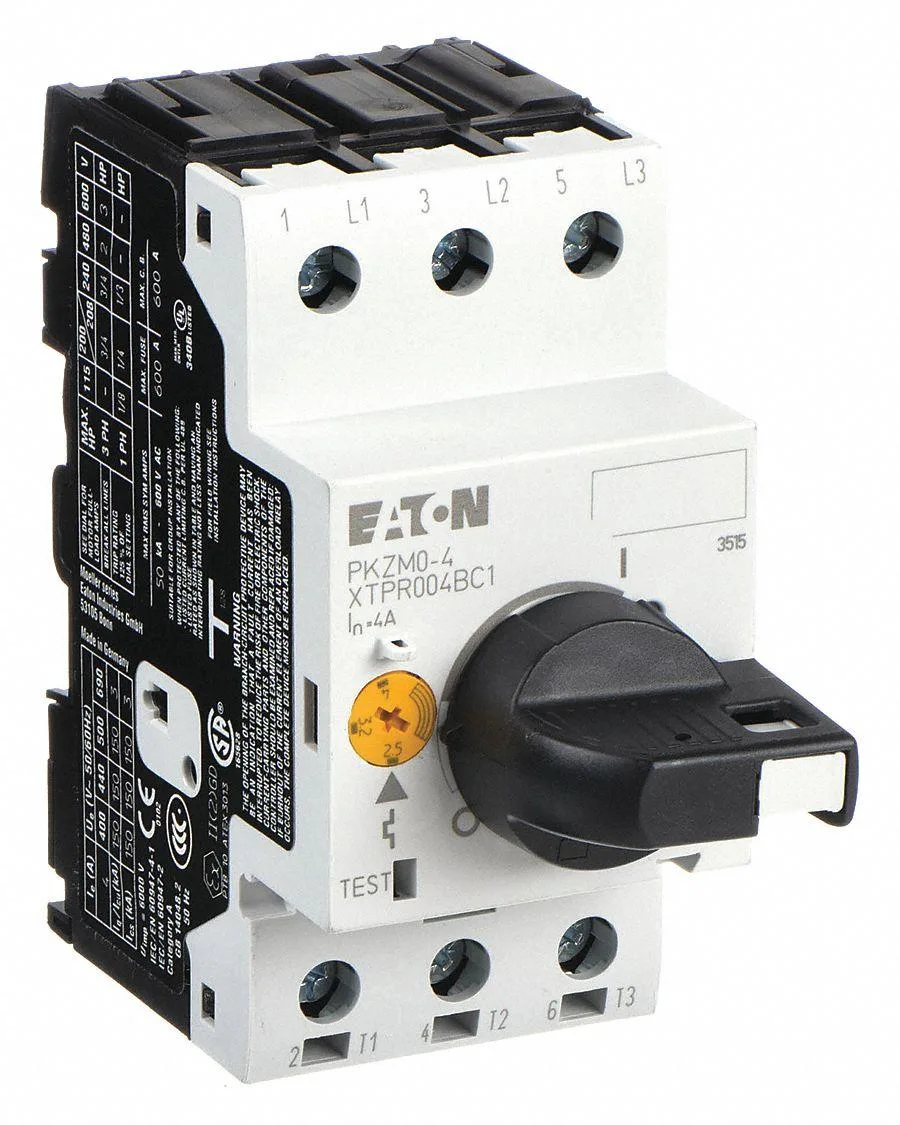

Eaton XTPR004BC1 rotary manual motor protector with transparent housing

Eaton

Eaton XTPR004BC1 4 A Rotary Manual Motor Protector

SKU CH-TRJ9-EZA0C

A 4 A rotary manual motor protector rated up to 600 V AC with three poles and overload settings up to 4 A

  • TypeRotary
  • ColorTransparent
  • Protects motors up to 4 A current
  • Handles three-phase loads at 208, 240, 480 and 600 V AC
  • Single-phase ratings at 120 V and 240 V AC
  • Rotary selector switch for clear manual control
  • Three-pole design covers all phases

Eaton XTPR004BC1 4 A Manual Motor Protector

The Eaton XTPR004BC1 is a rotary manual motor protector rated for 4 A continuous current. It provides three-pole overload protection for motors up to 600 V AC. The selector-switch operator allows local manual control and trip reset. It suits industrial control panels and motor-starter assemblies requiring compact branch-circuit protection.

Suits three-phase motors up to 2 hp at 480 V

Builders wiring single-phase loads above 1/3 hp at 240 V or needing NEMA-rated starters should look at other devices. Installers requiring integrated contactor function or electronic trip units will not find those features here. The unit is limited to a fixed 4 A maximum overload setting.

Fixed 4 A maximum overload relay current setting

The protector’s overload relay caps at 4 A, which directly determines the largest motor it can safeguard. Three-phase ratings reach 1 hp at 208 V, 3/4 hp at 240 V, 2 hp at 480 V and 3 hp at 600 V. Single-phase ratings are 1/8 hp at 120 V and 1/3 hp at 240 V. Verify the motor nameplate current against the 4 A limit before specifying.

Highlights

  • Protects motors up to 4 A current
  • Handles three-phase loads at 208, 240, 480 and 600 V AC
  • Single-phase ratings at 120 V and 240 V AC
  • Rotary selector switch for clear manual control
  • Three-pole design covers all phases

Specifications

BrandEaton
ModelXTPR004BC1
TypeRotary
ColorTransparent

Questions about this item

What circuit-breaker rating is needed upstream of this 4 A motor protector?

Install a branch-circuit breaker sized per local code for the 600 V AC maximum rating; the protector itself handles up to 4 A overload.

Can this three-phase protector be used on a legacy 208 V motor starter?

Yes, it is rated for 1 hp at 208 V AC three-phase and mounts in the same XTPR Series footprint.

How do I verify the rotary selector is set to the correct 4 A trip point after wiring?

Turn the transparent rotary dial until the indicator aligns with the 4 A marking, then confirm the motor runs without nuisance tripping.
