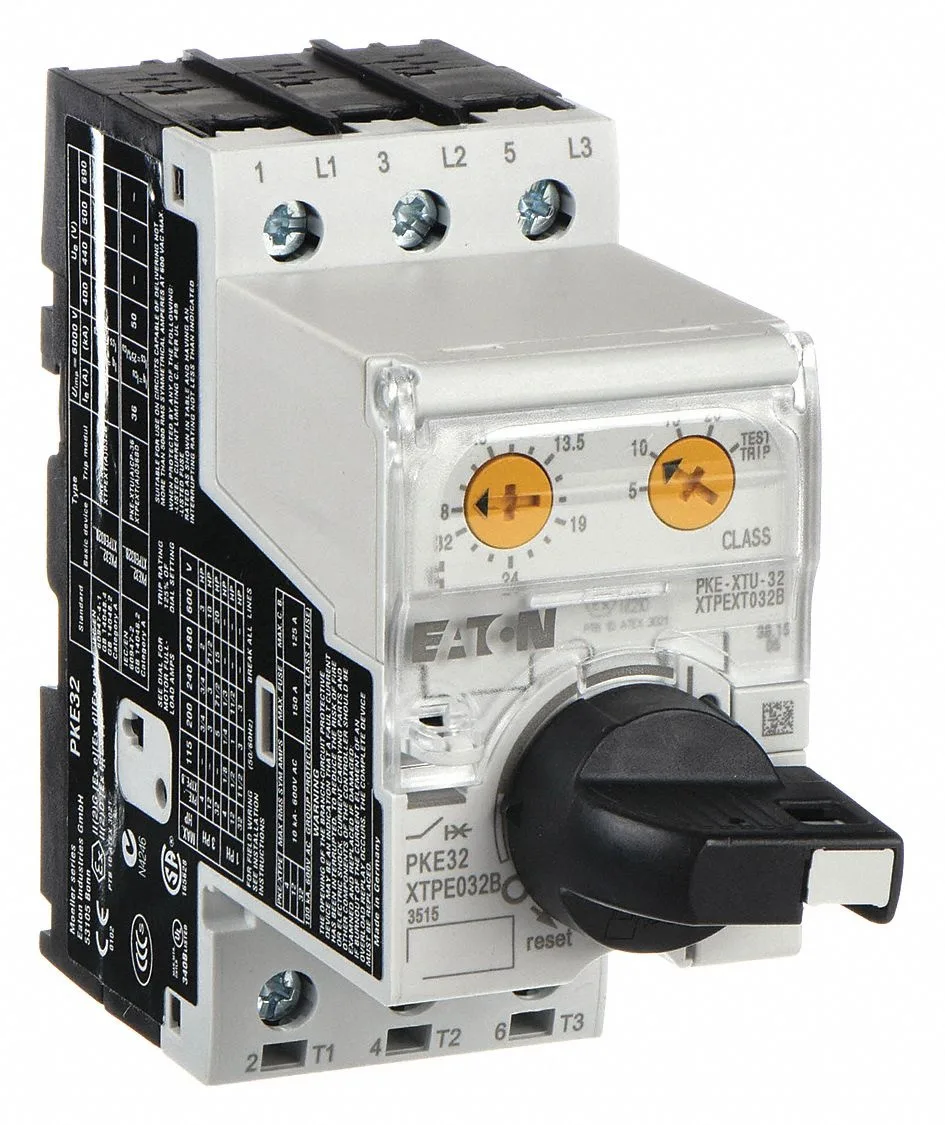

Eaton XTPE032BCS manual motor protector, transparent selector switch, three-pole, 32A 600V

Eaton

Eaton XTPE032BCS Manual Motor Protector 32A 600V 3-Pole Selector Switch

SKU CH-4M4V-CG3AD

A 32 A three-pole selector switch protects motors up to 30 hp at 600 V AC

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Protects motors up to 32 A overload current
  • Handles three-phase loads to 600 V AC
  • Selector switch operator for clear on/off control
  • Rated 10 hp at 208 V and 240 V three-phase
  • Delivers 15 hp at 480 V and 30 hp at 600 V

Eaton XTPE032BCS Manual Motor Protector

The Eaton XTPE032BCS is a three-phase manual motor protector rated for 32 A and 600 V AC. It uses a selector switch operator and belongs to the XTPE series. The device suits industrial control panels that need motor-circuit protection and manual disconnect in a single unit.

Thermal and electrical characteristics

The protector carries a maximum overload relay setting of 32 A. Single-phase horsepower ratings are 2 hp at 120 V AC and 5 hp at 240 V AC. Three-phase ratings reach 10 hp at 208 V AC, 10 hp at 240 V AC, 15 hp at 480 V AC and 30 hp at 600 V AC.

Sustained-load behaviour

Under continuous operation the unit maintains its calibrated overload threshold without nuisance tripping. The selector switch provides clear on/off status for maintenance lockout. It is not intended for applications requiring automatic remote reset or electronic trip-unit communication.

Highlights

  • Protects motors up to 32 A overload current
  • Handles three-phase loads to 600 V AC
  • Selector switch operator for clear on/off control
  • Rated 10 hp at 208 V and 240 V three-phase
  • Delivers 15 hp at 480 V and 30 hp at 600 V

Specifications

BrandEaton
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

How do I install the Eaton XTPE032BCS and what wiring mistake should I avoid?

Mount the protector on a DIN rail or panel, then connect three-phase supply to the line terminals and motor leads to the load terminals; the common error is reversing line and load sides, which disables overload protection.

What maintenance or replacement will the Eaton XTPE032BCS need over time?

Periodically check the selector switch for smooth operation and inspect terminals for overheating; if the 32 A thermal element trips repeatedly or the switch mechanism wears, replace the complete unit.

What limit appears first when the Eaton XTPE032BCS runs continuously at full load?

The 32 A maximum overload relay setting is the first limit; sustained current above this value causes the thermal trip to open the circuit.
