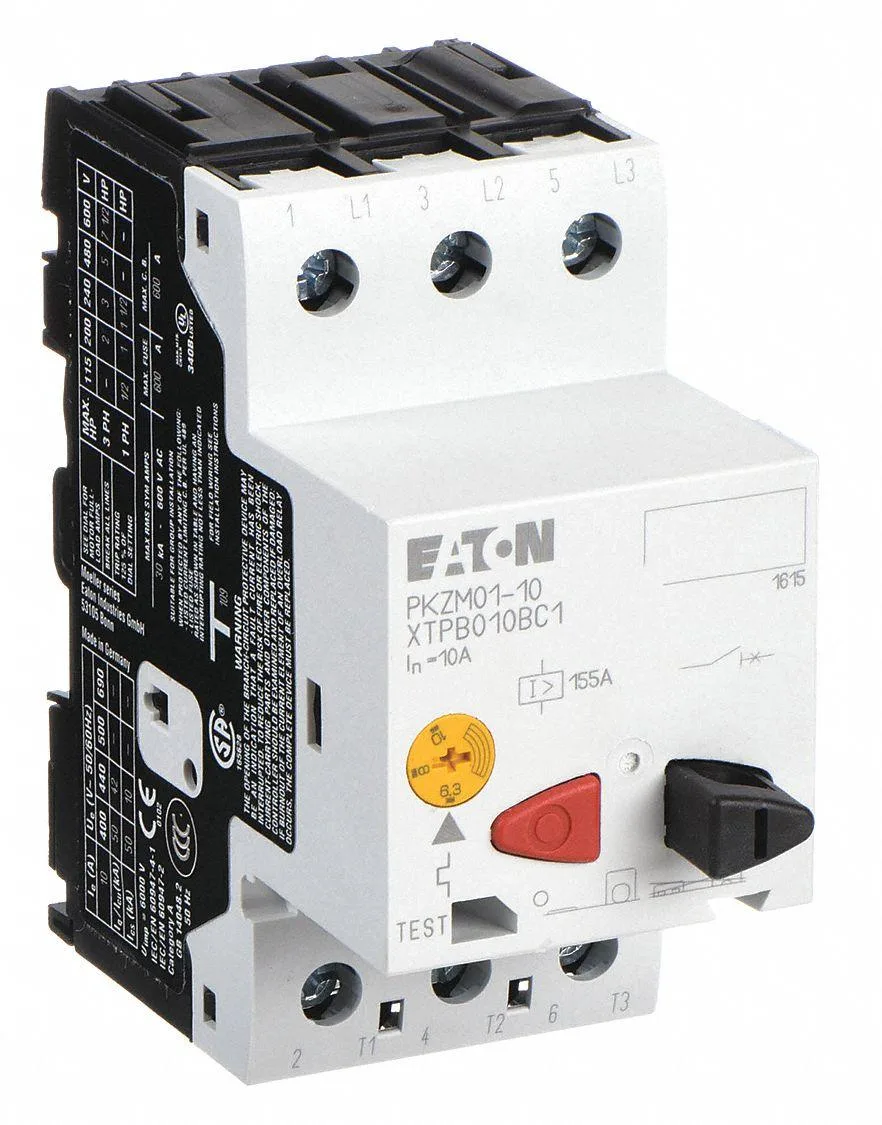

Eaton XTPB010BC1 manual motor protector push button transparent frame B

Eaton

Eaton XTPB010BC1 Manual Motor Protector 10A Push Button Frame B

SKU CH-XDS7-AFTW9

A 10 A manual motor protector with push-button operation rated for up to 600 V AC across three phases

  • TypePush Button
  • ColorTransparent
  • Protects motors up to 10 A continuous current
  • Handles three-phase loads at 208 V, 240 V, 480 V and 600 V AC
  • Single-phase ratings of 1/2 hp at 120 V and 1 1/2 hp at 240 V AC
  • Push-button operator gives direct manual control
  • Three-pole design suits standard three-phase installations

Eaton 10 A Push Button Motor Protector

The Eaton XTPB010BC1 is a three-pole manual motor protector rated for 10 A continuous current. It suits maintenance engineers and panel builders who need local start-stop control on industrial motor circuits up to 600 V AC.

10 A overload headroom across three-phase voltages

At 10 A the device handles 3 hp at 208 V AC and 240 V AC, 7 1/2 hp at 480 V AC and 10 hp at 600 V AC. Single-phase ratings reach 1/2 hp at 120 V AC and 1 1/2 hp at 240 V AC; beyond these limits the thermal trip will open the circuit.

Transparent push-button operator on Frame B housing

The clear push-button actuator provides visible status indication while the Frame B enclosure mounts directly in standard motor control centres. Three-pole construction and a 600 V AC maximum rating allow integration into existing three-phase distribution panels without additional insulation barriers.

Highlights

  • Protects motors up to 10 A continuous current
  • Handles three-phase loads at 208 V, 240 V, 480 V and 600 V AC
  • Single-phase ratings of 1/2 hp at 120 V and 1 1/2 hp at 240 V AC
  • Push-button operator gives direct manual control
  • Three-pole design suits standard three-phase installations

Specifications

BrandEaton
ModelXTPB010BC1
TypePush Button
ColorTransparent

Questions about this item

Will the 10 A motor protector coordinate with my existing 600 V AC contactor?

The protector is rated for 600 V AC maximum and 10 A continuous current, so it can be paired with a 600 V AC contactor of matching or higher current rating.

How can I verify the push-button trip function works after wiring?

Press the push-button operator; a distinct mechanical click should be felt and the three-pole contacts will open, confirming trip operation.

Does the package include the 3.800 push-button operator or must I order it separately?

The 3.800 push-button operator is built into the Frame B unit; no separate operator purchase is required.
