Eaton XTOM1P6AC1 Overload Relay 1 A 1.6 A 1NC/1NO

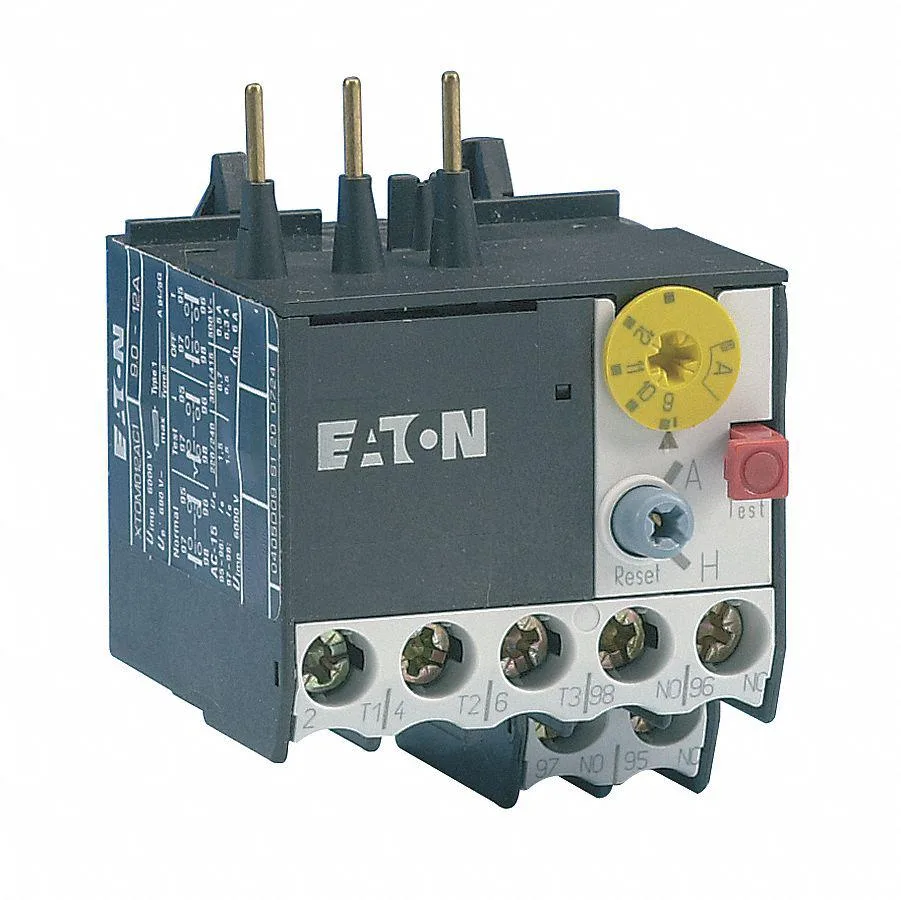

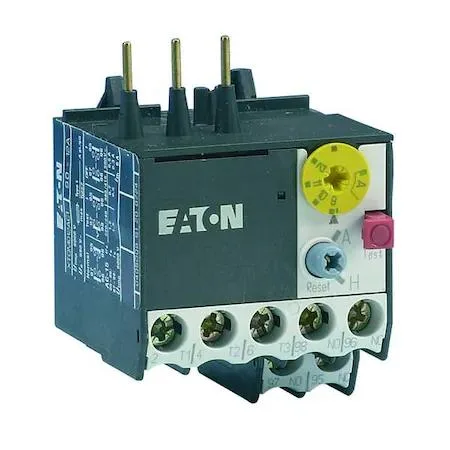

Eaton XTOM1P6AC1 Overload Relay

The Eaton XTOM1P6AC1 is a thermal overload relay designed for three-phase motor protection in industrial control panels. It mounts directly to compatible Series XT mini contactors and provides adjustable current settings between 1 A and 1.6 A with a Trip Class 10 response. The unit includes one normally open and one normally closed auxiliary contact for signalling or control circuits. It meets ATEX, CE, CSA, EN 60947, IEC 60947, RoHS and UL Listed standards.

Replaces fixed-heater or bimetal overloads

This relay replaces fixed-trip overloads or older bimetal units that require separate heaters for each motor rating. The adjustable 1 A to 1.6 A range covers multiple motor sizes with a single part, reducing inventory and eliminating heater-selection errors. The upgrade is worth it when a panel uses Series XT mini contactors and needs a compact, standards-compliant overload that can be reset automatically or manually without removing wiring.

Fits Series XT mini contactor Frame Size A

The relay mounts directly onto Series XT mini contactors with Frame Size A, using the contactor’s own mounting hardware and bus connections. Its IEC-style, three-pole construction matches the contactor footprint, saving DIN-rail space and simplifying wiring. The transparent housing allows visual inspection of the trip indicator and contact status. Auto and manual reset modes give flexibility for local or remote restart schemes without additional relays or timers.
