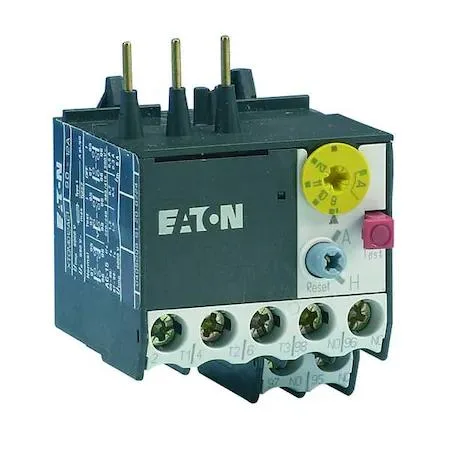

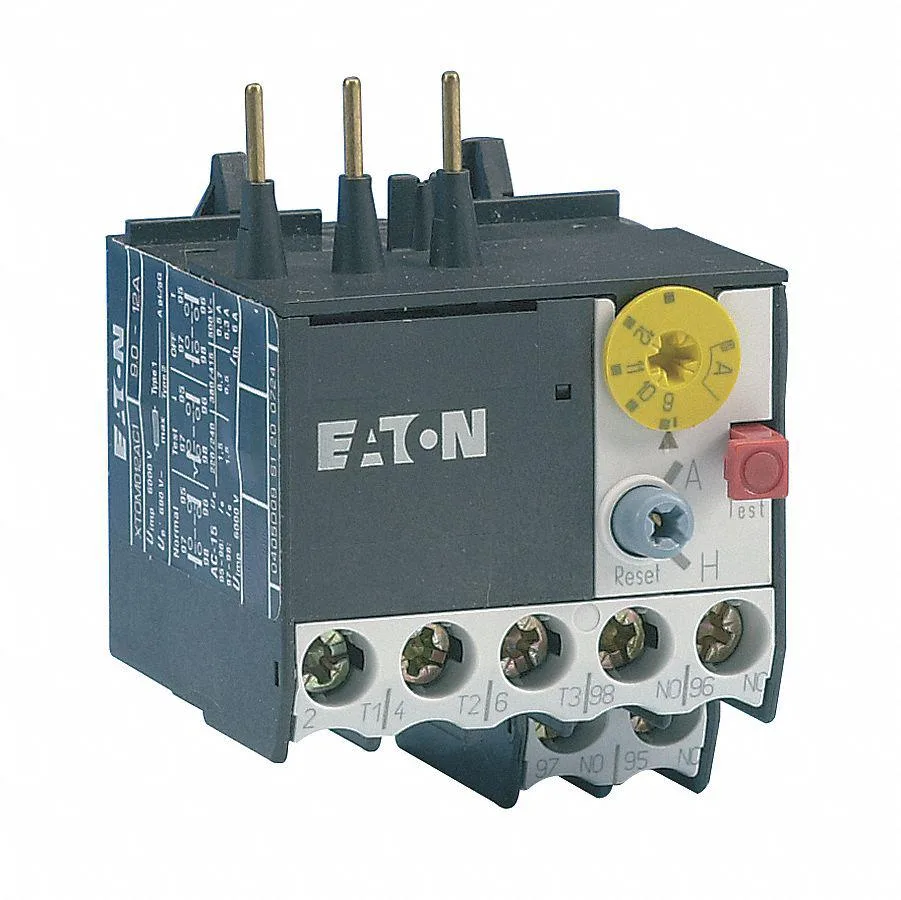

Transparent rectangular overload relay with front-mounted terminals and adjustment dial

Eaton

Eaton XTOM009AC1 Overload Relay 6-9 A 1NC/1NO

SKU CH-DP63-ZJ9JW

Thermal overload relay protects three-phase motors with a 6–9 A adjustable range, Trip Class 10 and 1NO/1NC auxiliary contacts

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Thermal overload protection for three-phase circuits
  • Adjustable current setting from 6 to 9 amperes
  • Trip Class 10 response for motor protection
  • Auto and manual reset options available
  • Mounts directly to compatible XT Mini Contactors

Eaton XTOM009AC1 Overload Relay for Industrial

This Eaton overload relay provides thermal protection for three-phase motors with a current setting range of 6 to 9 A. It mounts directly to XT mini contactors using the included hardware. The unit features a 1NO/1NC auxiliary contact configuration for status monitoring and control circuit integration. Trip Class 10 response suits standard motor starting applications in industrial automation panels.

Direct Contactor Mounting Frees Panel Space

The relay attaches directly to compatible XT mini contactors without a separate base or DIN rail adapter. This direct mounting style reduces the overall footprint inside the enclosure and eliminates extra wiring between the contactor and overload device. Frame Size A ensures compatibility with the designated contactor series. The compact form factor leaves more room for other control components in crowded cabinets.

Thermal Trip Mechanism Operates Without External

Thermal overload protection relies on a bimetallic element that responds to sustained overcurrent, so no control voltage or cooling fan is required for the trip function. Auto and manual reset modes allow the operator to choose automatic restart or deliberate intervention after a trip event. The device meets IEC 60947 standards and carries ATEX, CE, CSA and UL markings for broad regulatory acceptance. RoHS compliance confirms restricted substance limits are met.

Highlights

  • Thermal overload protection for three-phase circuits
  • Adjustable current setting from 6 to 9 amperes
  • Trip Class 10 response for motor protection
  • Auto and manual reset options available
  • Mounts directly to compatible XT Mini Contactors

Specifications

BrandEaton
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

At what current does the thermal overload trip during sustained use?

The relay trips when current exceeds the 9 A maximum setting under continuous load.

How much heat or noise does the relay produce when running all day?

The thermal overload operates silently with no fan; heat rises only at the contactor terminals during normal operation.

Which contactor must I already own for direct mounting?

It mounts directly to Eaton XT mini contactors with frame size A.
