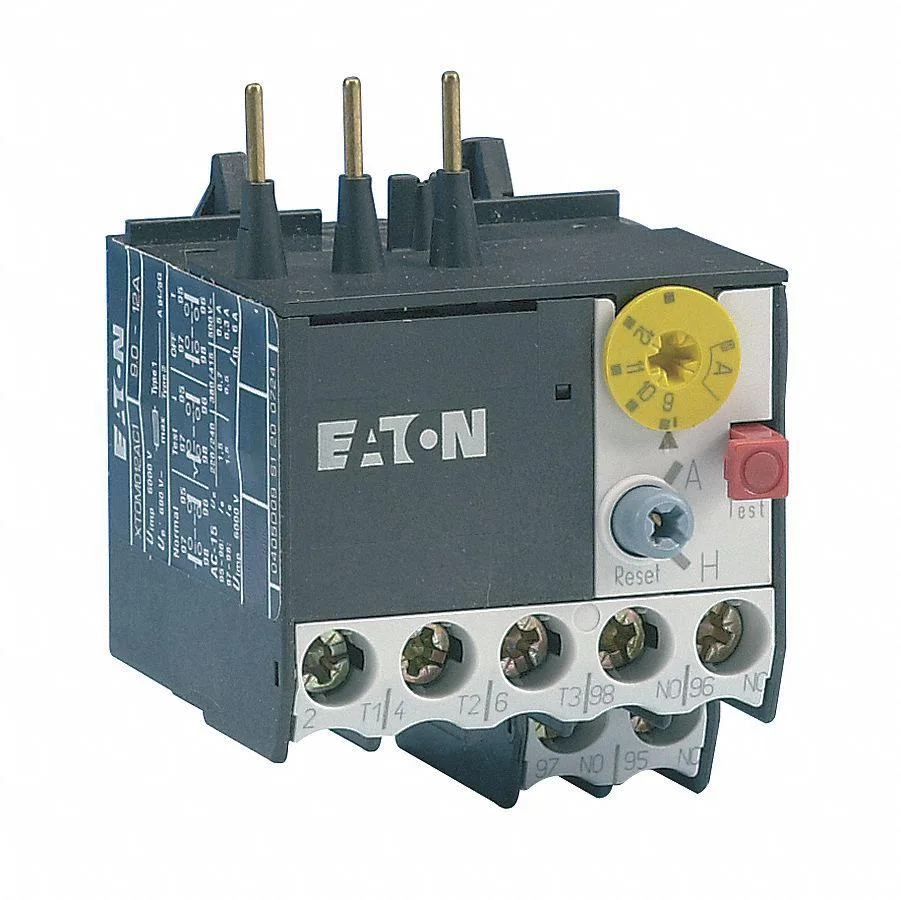

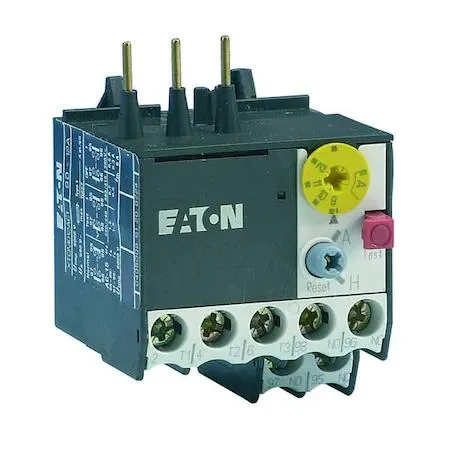

Transparent Eaton XTOM001AC1 overload relay with 1NC/1NO auxiliary contacts, 0.6-1 A range, Trip Class 10, direct contactor mounting

Eaton

Eaton XTOM001AC1 Overload Relay 0.6-1 A Trip Class 10

SKU CH-SH5N-4MFX9

Thermal overload relay protects three-phase motors with 0.6–1 A trip range, Class 10 response, and 1NO/1NC auxiliary contacts

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Thermal overload protection for three-phase circuits
  • Adjustable current range from 0.6 A to 1 A
  • Trip Class 10 response for motor safety
  • Auto and manual reset options for flexibility
  • Direct mounting to XT Mini Contactors for simple installation

Eaton XTOM001AC1 Overload Relay

The Eaton XTOM001AC1 is a thermal overload relay designed for three-phase motor protection in industrial control panels. It suits maintenance engineers and panel builders who need IEC-style protection for small motors running at low current levels.

Direct contactor mounting with auto and manual reset

This relay mounts directly onto compatible Series XT mini contactors, reducing panel wiring and saving DIN-rail space. The transparent housing allows visual inspection of the trip indicator, while the 1NO/1NC auxiliary contacts provide flexible signalling to PLCs or alarm circuits.

Includes mounting hardware for immediate

Supplied mounting hardware lets technicians fit the relay to the contactor without sourcing separate screws or brackets. Compliance with ATEX, CE, CSA, UL and EN 60947 standards means the unit meets common international requirements for hazardous-area and general-purpose installations.

Highlights

  • Thermal overload protection for three-phase circuits
  • Adjustable current range from 0.6 A to 1 A
  • Trip Class 10 response for motor safety
  • Auto and manual reset options for flexibility
  • Direct mounting to XT Mini Contactors for simple installation

Specifications

BrandEaton
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

What current range does the IEC-style thermal overload relay protect, and what does Trip Class 10 mean for the trip time?

The relay protects three-phase motors between 0.6 A and 1 A; Trip Class 10 means it will trip within 10 seconds at 7.2 times the set current.

Which contactors can this frame-size-A relay be mounted on directly?

It mounts directly onto Eaton XT Mini Contactors of frame size A without extra hardware.

How do you select between automatic and manual reset after a trip?

Use the reset selector on the relay face to choose Auto for automatic restart or Manual for push-button reset.
