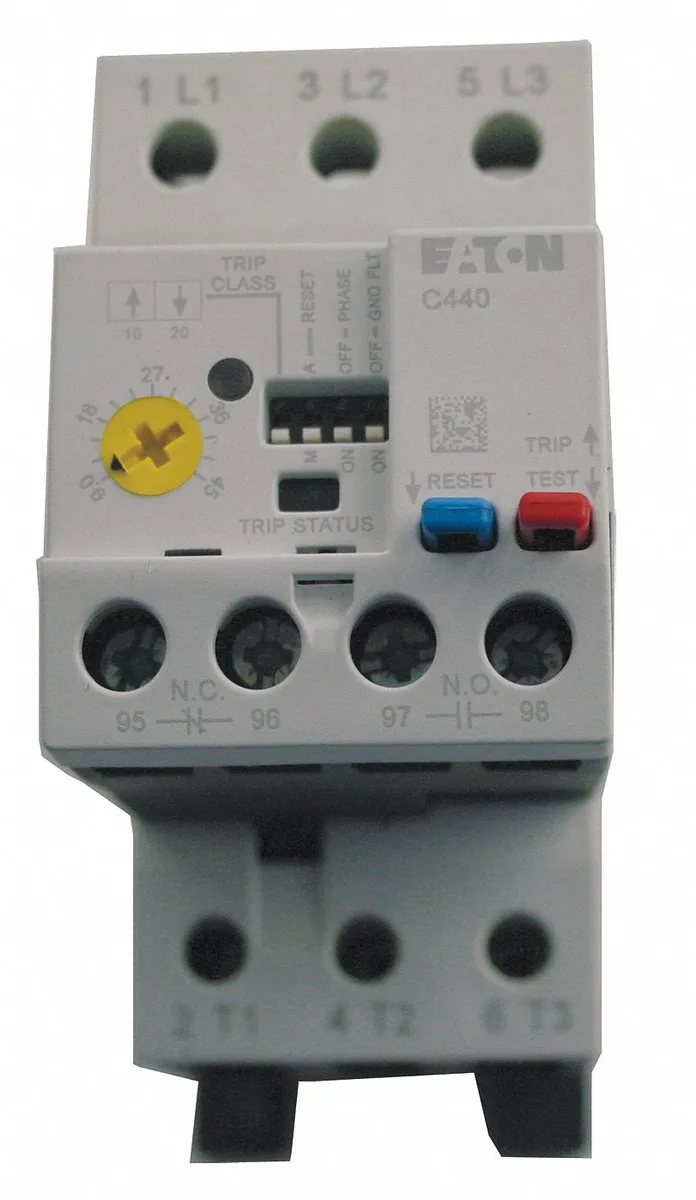

Transparent industrial overload relay with three-pole terminals and auxiliary contacts

Eaton

Eaton XTOE1P6CCSS Overload Relay 0.33–1.65 A 10/20/30

SKU CH-EXE0-BNHWB

Electronic overload relay with 0.33–1.65 A range, trip classes 10/20/30, 1NO/1NC contacts, and separate mounting for XT mini contactors

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Adjustable protection from 0.33 A to 1.65 A
  • Trip class 10/20/30 suits varied motor loads
  • Electronic overload relay with auto and manual reset
  • 1NO/1NC auxiliary contacts for control circuits
  • Compatible with Series XT mini contactors frame C

Eaton XTOE1P6CCSS Overload Relay

This Eaton XTOE1P6CCSS overload relay provides electronic motor protection for three-phase circuits with a current setting range of 0.33 A to 1.65 A. It mounts separately and is compatible with Series XT mini contactors in frame size C. The unit suits industrial automation panels that need adjustable overload protection without integrated thermal units. Its IEC-style design fits control systems requiring a 1NO/1NC auxiliary contact configuration.

Thermals noise and power draw

The relay uses an electronic overload protection type that monitors current directly rather than relying on heater elements. Trip class selection among 10, 20 and 30 allows the installer to match the thermal response to the motor starting profile. No fan or active cooling is involved, so the device adds no audible noise to the enclosure. Power consumption is limited to the control circuit supply for the electronics.

Upgrade and replacement context

This relay replaces older thermal overload blocks that require separate heater packs for each motor current rating. The adjustable 0.33–1.65 A range covers multiple motor sizes with a single part, reducing inventory. The jump is worth it when a panel uses Series XT mini contactors and needs auto or manual reset flexibility. Buyers who need a NEMA-rated frame or built-in thermal units should look elsewhere.

Highlights

  • Adjustable protection from 0.33 A to 1.65 A
  • Trip class 10/20/30 suits varied motor loads
  • Electronic overload relay with auto and manual reset
  • 1NO/1NC auxiliary contacts for control circuits
  • Compatible with Series XT mini contactors frame C

Specifications

BrandEaton
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

How is the overload relay mounted and what wiring mistake should I avoid?

The relay uses a separately mounted style and must be wired to a compatible XT mini contactor; do not attempt direct panel mounting without the correct base.

Which parts will need replacement after repeated trips?

The electronic overload unit has no replaceable thermal elements; if the trip mechanism wears out the entire relay must be replaced.

At what current does the relay trip first during a sustained overload?

The minimum current setting is 0.33 A, so any sustained draw above that level can initiate a trip depending on the selected class.
