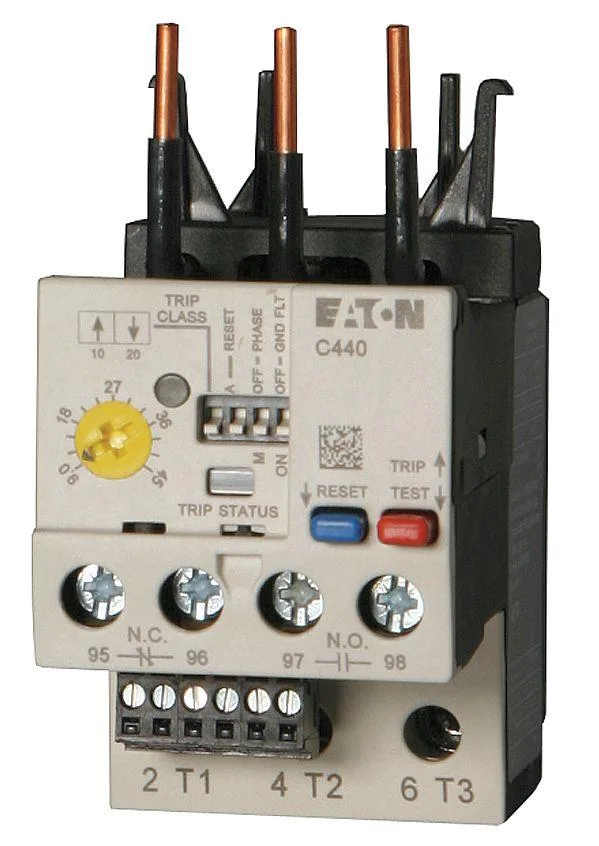

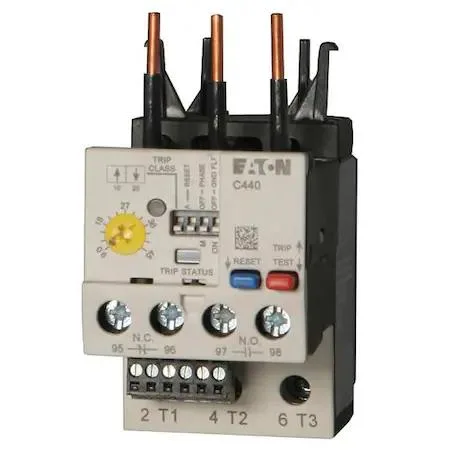

Transparent electronic overload relay with three poles

Eaton

Eaton XTOE1P6CCS Electronic Overload Relay 0.33-1.65A 3P

SKU CH-8ZGQ-D9C40

Electronic overload relay protects three-phase motors with adjustable 0.33-1.65 A current settings and selectable trip classes 10, 20, 30

  • TypeElectronic, ZEB32-1,65
  • ColorTransparent
  • Electronic overload protection for three-phase circuits
  • Adjustable trip current from 0.33 A to 1.65 A
  • Selectable trip classes 10, 20 and 30
  • Direct mounting onto compatible XT mini contactors
  • Automatic and manual reset modes included

Eaton XTOE1P6CCS Electronic Overload Relay

The Eaton XTOE1P6CCS is an electronic overload relay designed for three-phase motor protection. It mounts directly to compatible XT mini contactors using a Frame Size C footprint. The unit provides adjustable current settings from 0.33 A to 1.65 A with selectable Trip Class 10, 20, or 30. It includes a 1NO/1NC auxiliary contact and supports both automatic and manual reset modes.

Suitable Applications and Limitations

This relay suits panels using XT mini contactors that require electronic overload protection within the 0.33 A to 1.65 A range. It is not for installations needing NEMA-sized starters or higher current ranges beyond 1.65 A. Builders requiring integrated thermal units or different mounting styles should look elsewhere. Buyers needing a different frame size or pole count will not be served by this model.

Adjustable Current Range 0.33 A to 1.65 A

The decisive specification is the adjustable current range of 0.33 A to 1.65 A. This window determines whether the relay matches the motor full-load current. If the motor draws less than 0.33 A or more than 1.65 A, this relay cannot protect it correctly. The three selectable trip classes (10, 20, 30) allow tuning to the application, but the current window is the hard limit.

Highlights

  • Electronic overload protection for three-phase circuits
  • Adjustable trip current from 0.33 A to 1.65 A
  • Selectable trip classes 10, 20 and 30
  • Direct mounting onto compatible XT mini contactors
  • Automatic and manual reset modes included

Specifications

BrandEaton
ModelXTOE1P6CCS
TypeElectronic, ZEB32-1,65
ColorTransparent

Questions about this item

What contactor series must I already have to mount this overload relay directly?

It mounts directly to Eaton Series XT Mini Contactors with frame size C.

Will this relay protect a motor circuit that uses an older thermal overload scheme?

This is an electronic overload relay with adjustable trip classes 10, 20 and 30, replacing fixed thermal units.

How can I verify the relay is operating correctly after wiring it to a 1.65 A motor?

Set the current dial to 1.65 A, apply load and confirm the 1NO/1NC auxiliary contacts change state on a trip event.
