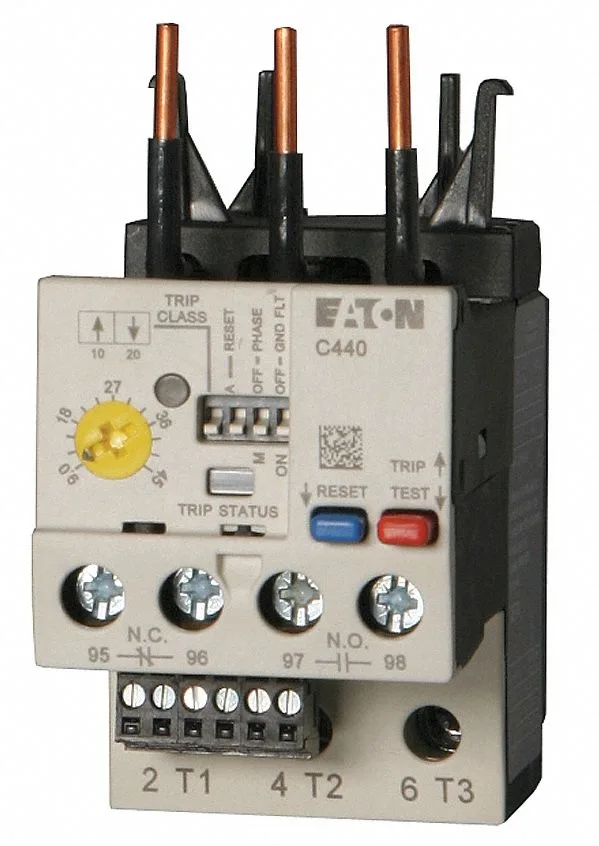

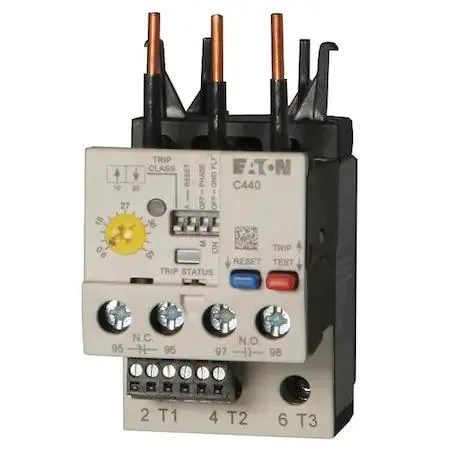

Transparent electronic overload relay, three-pole, direct-mount form factor

Eaton

Eaton XTOE1P6BCS Overload Relay 0.33–1.65 A 3P Electronic

SKU CH-DTHY-3M6CW

Electronic overload relay protects three-phase circuits from 0.33 to 1.65 A with selectable trip classes 10, 20 and 30

  • TypeElectronic, ZEB12-1,65
  • Length7.300
  • ColorTransparent
  • Weight0.78
  • Electronic overload protection with adjustable 0.33–1.65 A range
  • Trip Class 10/20/30 selectable for tailored motor protection
  • Direct contactor mounting simplifies panel installation
  • Auto and manual reset modes restore operation quickly
  • Three-pole IEC design fits Series XT Mini Contactors

Application fit

The Eaton XTOE1P6BCS is a three-pole electronic overload relay designed for motor protection in industrial control panels. It suits maintenance engineers and panel builders who need adjustable trip current between 0.33 A and 1.65 A for small motors. Buyers who require higher current ranges or built-in thermal elements should look elsewhere.

Build and mounting

The unit has a transparent housing and weighs 0.78 kg with a length of 7.300 units for compact DIN-rail layouts. It mounts directly to compatible Series XT mini contactors, reducing wiring time and panel space. Auto and manual reset modes give flexibility after a trip event.

Deciding specification

The adjustable current window of 0.33 A to 1.65 A and selectable trip classes 10, 20, 30 determine whether the relay matches the motor's full-load current and starting profile.

Highlights

  • Electronic overload protection with adjustable 0.33–1.65 A range
  • Trip Class 10/20/30 selectable for tailored motor protection
  • Direct contactor mounting simplifies panel installation
  • Auto and manual reset modes restore operation quickly
  • Three-pole IEC design fits Series XT Mini Contactors

Specifications

BrandEaton
ModelXTOE1P6BCS
TypeElectronic, ZEB12-1,65
Length7.300
ColorTransparent
Weight0.78

Questions about this item

What trip-class settings does the XTOE1P6BCS support and what does each cap?

The relay offers selectable Trip Class 10, 20 and 30; each class sets the maximum time the device allows an overload before tripping, with Class 10 being the fastest and Class 30 the slowest.

What contactor series and frame size does this overload relay mount on directly?

It mounts directly on Eaton Series XT Mini Contactors with Frame Size B using the direct-to-contactor mounting style.

How is the XTOE1P6BCS wired into the control circuit and what mistake should be avoided?

Connect the 1NO/1NC auxiliary contacts to the contactor coil circuit for trip signalling; the common error is leaving the reset mode on Auto when a manual reset is required for safety lockout.
