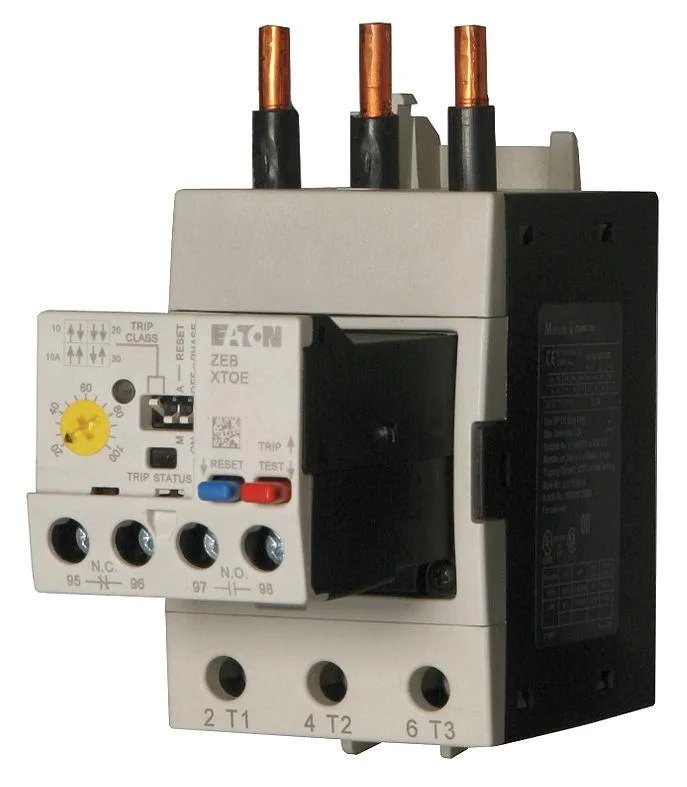

Eaton XTOE100DCS electronic overload relay three-pole unit

Eaton

Eaton XTOE100DCS overload relay 20-100A electronic 3-pole

SKU CH-B6YG-Y52Q5

Electronic overload relay protects contactors with adjustable 20-100A current range, selectable trip classes 5, 10, 20, 30, three poles, and auto or manual reset

  • TypeElectronic
  • Electronic protection for motors up to 100 A
  • Selectable trip classes 5, 10, 20, 30 match application needs
  • Three-pole design covers all phases in one unit
  • Compatible with XTCE contactor series for direct mounting
  • Auto and manual reset options simplify recovery after overload

Industrial motor protection

The Eaton XTOE100DCS is an electronic overload relay rated from 20 to 100 amperes across three poles. It mounts on XTCE series contactors and starters to guard motors against sustained overcurrent conditions in industrial control panels.

Frame D electronic design

Frame D construction houses the sensing and trip electronics without separate heater elements. Selectable trip classes 5, 10, 20 and 30 let the installer match the relay response to the motor start profile. Auto and manual reset modes are both available on the same unit.

Replaces thermal overload blocks

This relay supersedes traditional thermal overload blocks that require individual heater packs for each current setting. The electronic design covers the full 20 to 100 ampere range in one device, reducing spare-part inventory and eliminating heater selection errors. The upgrade is worthwhile when motor ratings change frequently or when consistent trip performance across ambient temperature swings is required.

Highlights

  • Electronic protection for motors up to 100 A
  • Selectable trip classes 5, 10, 20, 30 match application needs
  • Three-pole design covers all phases in one unit
  • Compatible with XTCE contactor series for direct mounting
  • Auto and manual reset options simplify recovery after overload

Specifications

BrandEaton
ModelXTOE100DCS
TypeElectronic

Questions about this item

What trip classes does the XTOE100DCS overload relay support?

The relay offers selectable trip classes of 5, 10, 20 and 30 to match different motor protection requirements.

Which contactors does this overload relay mount to?

It is designed for direct mounting on Eaton XTCE series contactors in frame size D.

How do you switch between auto and manual reset on this relay?

Use the reset mode selector on the front of the unit; a common mistake is leaving it in auto when manual reset is required for the application.
