Transparent electronic overload relay, direct-mount form factor

Eaton

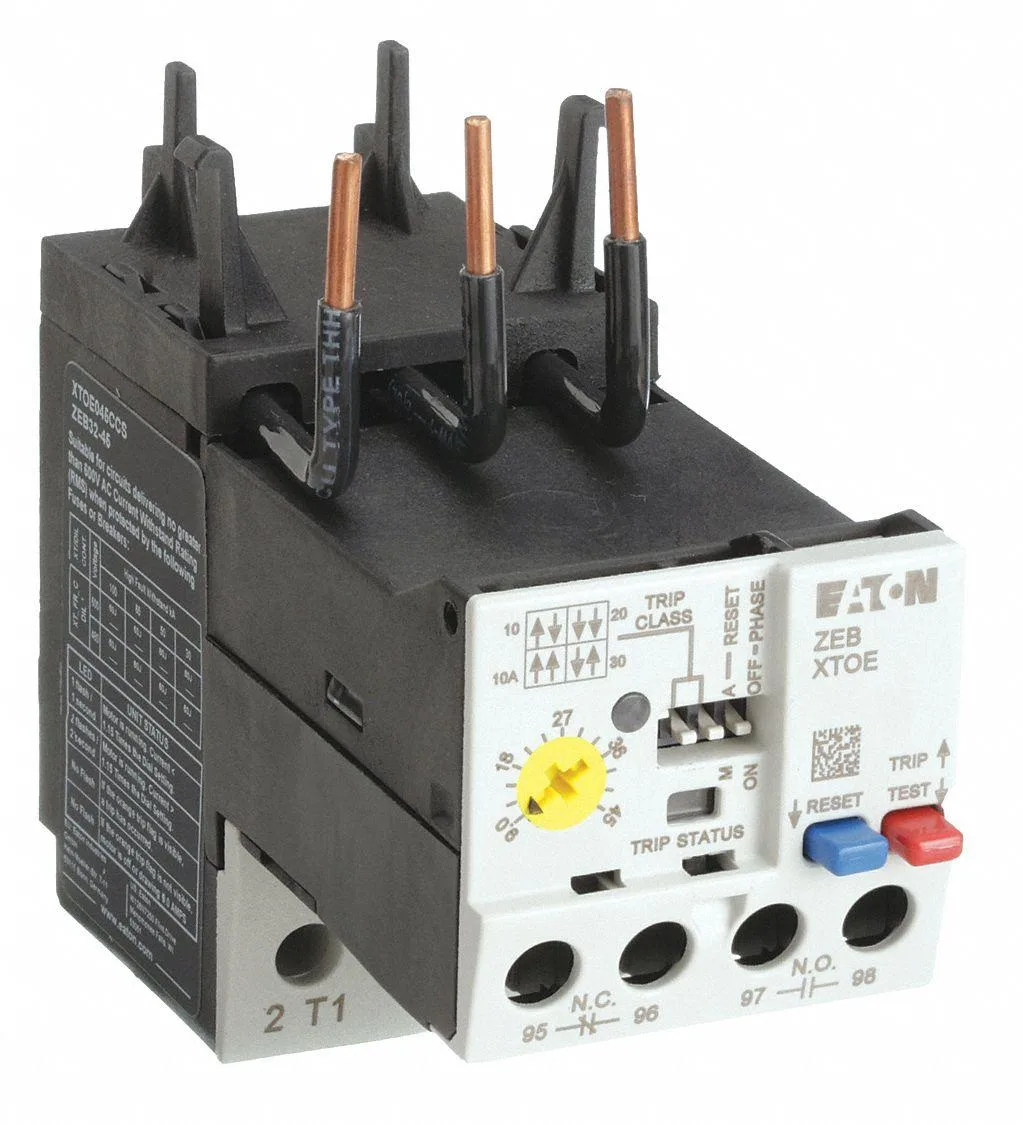

Eaton XTOE045CCS Overload Relay 9 A 45 A 10 20 30 Trip Class

SKU CH-0SES-68GAN

Electronic overload relay for three-phase circuits with selectable trip classes 10, 20 and 30, adjustable from 9 A to 45 A and direct contactor mounting

  • TypeElectronic, ZEB32-45
  • ColorTransparent
  • Selectable trip class 10 20 30 for tailored motor protection
  • Electronic overload relay covers 9 A to 45 A range
  • Direct contactor mounting simplifies panel assembly
  • Auto and manual reset options restore operation quickly
  • Compatible with Series XT mini contactors frame size C

Eaton XTOE045CCS Overload Relay

The Eaton XTOE045CCS is an electronic overload relay designed for three-phase motor protection in industrial control panels. It mounts directly to compatible Series XT mini contactors, making it suitable for maintenance engineers and panel builders who need adjustable overload protection in a compact IEC-style device. The relay provides automatic and manual reset options for flexible recovery after a trip event. It is not intended for applications that require NEMA-rated sizing or separate thermal unit installation.

Adjustable Current Range and Trip Classes

The relay covers a minimum current setting of 9 A and a maximum setting of 45 A, giving headroom for a variety of motor sizes within a single frame. Selectable trip classes of 10, 20 and 30 allow the installer to match the thermal response to the motor starting characteristics. The electronic design removes the need for interchangeable thermal units, simplifying stock and setup. It will not suit installations that demand a fixed trip class or a current range outside the 9 A to 45 A window.

1NO/1NC Auxiliary Contact and Direct Mounting

The built-in auxiliary contact block provides one normally open and one normally closed contact for signalling or interlocking with the control circuit. Direct-to-contactor mounting reduces panel space and wiring time compared with separately mounted relays. The transparent housing allows visual inspection of the setting dials and status indicators. No additional thermal units or mounting accessories are included or required for the specified frame size C contactors.

Highlights

  • Selectable trip class 10 20 30 for tailored motor protection
  • Electronic overload relay covers 9 A to 45 A range
  • Direct contactor mounting simplifies panel assembly
  • Auto and manual reset options restore operation quickly
  • Compatible with Series XT mini contactors frame size C

Specifications

BrandEaton
ModelXTOE045CCS
TypeElectronic, ZEB32-45
ColorTransparent

Questions about this item

Will the XTOE045CCS mount directly onto my existing XT mini contactor without extra hardware?

Yes, the relay uses a direct-to-contactor mounting style and is compatible with Series XT mini contactors in frame size C.

How can I verify the overload relay is operating correctly after installation?

The electronic overload protection with selectable trip class 10, 20 or 30 will trip the 1NO/1NC auxiliary contacts when current exceeds the 9 A to 45 A setting range.

Does the XTOE045CCS include thermal units or must they be purchased separately?

Thermal units are not applicable for this electronic relay, so nothing extra is required for overload protection.
