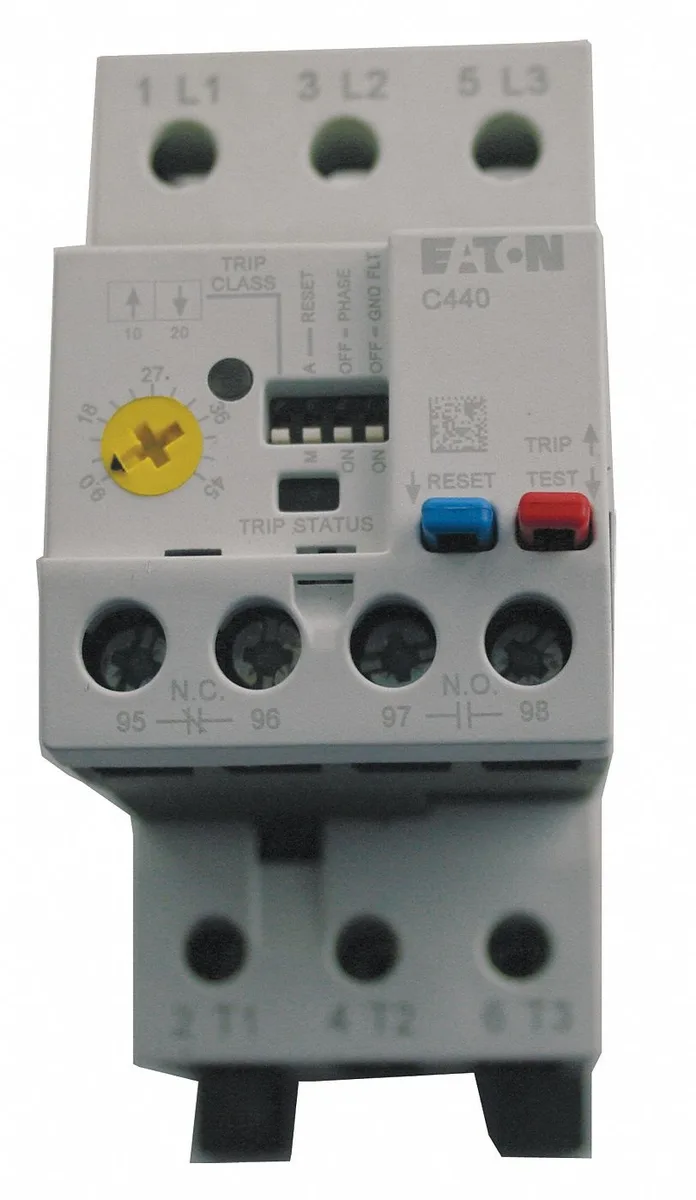

Transparent electronic overload relay with three poles and ground fault protection

Eaton

Eaton XTOE005CGSS Overload Relay 1-5 A Class 10/20/30 3P

SKU CH-9KC5-4KZGH

Electronic overload relay with ground-fault protection covers 1–5 A in trip classes 10, 20 and 30 for three-phase circuits

  • TypeElectronic w/ Ground Fault, ZEB32-5/KK
  • ColorTransparent
  • Electronic overload protection with ground-fault detection
  • Adjustable trip current from 1 to 5 A
  • Selectable trip class 10, 20 or 30
  • Three-pole IEC-style relay for motor circuits
  • Auto and manual reset modes included

Overload Relay 1 to 5 A

The Eaton XTOE005CGSS is an electronic overload relay with integrated ground-fault protection. It suits motor-control panels that need adjustable trip currents between 1 A and 5 A across three phases. Installers working with Series XT mini contactors will find it compatible with frame sizes L, M, N and R.

Separate Mounting and Transparent Housing

The unit mounts independently of the contactor, giving flexibility in panel layout and wiring access. Its transparent cover lets technicians verify the trip-class setting and reset mode without opening the enclosure. Auto and manual reset options are both supported for different operational procedures.

Trip Class 10/20/30 Selection

The relay offers selectable trip classes of 10, 20 and 30 to match motor acceleration profiles and protection requirements. Choosing the correct class determines how quickly the device responds to sustained overcurrent. Buyers who need a different current range or a non-electronic thermal relay should look elsewhere.

Highlights

  • Electronic overload protection with ground-fault detection
  • Adjustable trip current from 1 to 5 A
  • Selectable trip class 10, 20 or 30
  • Three-pole IEC-style relay for motor circuits
  • Auto and manual reset modes included

Specifications

BrandEaton
ModelXTOE005CGSS
TypeElectronic w/ Ground Fault, ZEB32-5/KK
ColorTransparent

Questions about this item

What current range does the XTOE005CGSS protect and which trip classes are selectable?

The relay covers 1 to 5 A and offers trip classes 10, 20 and 30 for three-phase circuits.

How is the relay mounted and what contactor frames does it fit?

It is separately mounted and compatible with Series XT mini contactors in frame sizes L, M, N and R.

Does the unit include thermal units and what reset modes are available?

Thermal units are not included; the relay provides both automatic and manual reset options.
