Transparent electronic overload relay with direct contactor mount

Eaton

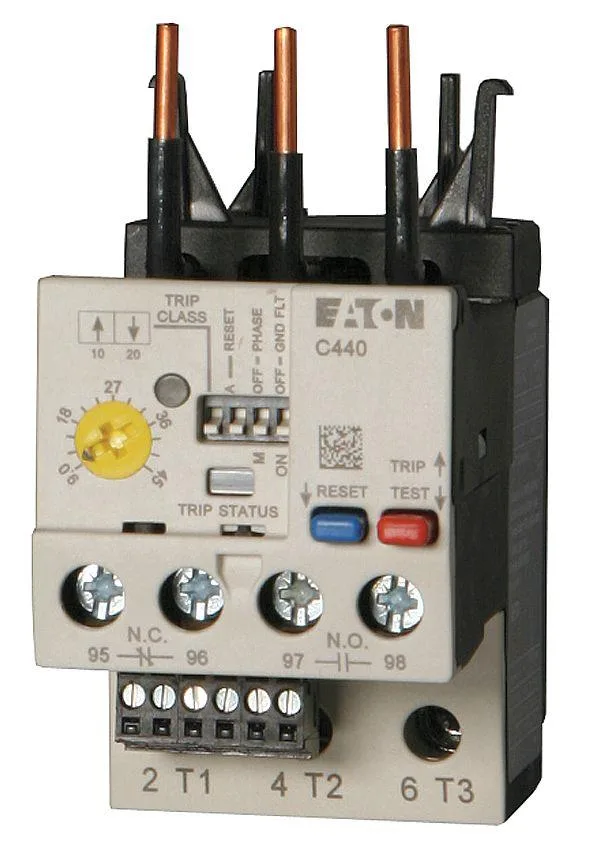

Eaton XTOE005BGS Overload Relay 1NC/1NO 1-5 A Trip Class 10/20

SKU CH-PTZT-E6F4X

Protects three-phase motors from 1 to 5 A with selectable Class 10 or 20 trip and auto-manual reset

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Electronic overload protection with adjustable 1-5 A range
  • Trip Class 10/20 matches motor start requirements
  • Auto and manual reset options for flexible recovery
  • Direct contactor mounting simplifies panel assembly
  • 1NO/1NC auxiliary contacts enable control signalling

Industrial Overload Relay

The Eaton XTOE005BGS is an electronic overload relay built for three-phase motor protection. It mounts directly to compatible Series XT mini contactors and provides adjustable current monitoring from 1 A to 5 A. The unit includes one normally open and one normally closed auxiliary contact for control-circuit signalling.

Direct Contactor-Mount Replacement

This relay replaces separate thermal blocks by integrating electronic trip logic into a single frame that fits Series XT mini contactors. The upgrade is worthwhile when an application demands selectable Trip Class 10 or 20 performance without swapping heater elements. It is not suited for installations that require NEMA-sized starters or external thermal units.

Sustained Load Behaviour

Under continuous operation the electronic sensing maintains consistent trip timing across the 1 A to 5 A range for both Trip Class 10 and 20 settings. Auto and manual reset modes allow the designer to choose between unattended restart and deliberate operator intervention after a fault. The transparent housing permits visual status checks without removing the relay.

Highlights

  • Electronic overload protection with adjustable 1-5 A range
  • Trip Class 10/20 matches motor start requirements
  • Auto and manual reset options for flexible recovery
  • Direct contactor mounting simplifies panel assembly
  • 1NO/1NC auxiliary contacts enable control signalling

Specifications

BrandEaton
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

Does the relay mount directly on a Series XT mini contactor?

Yes, it uses a direct-to-contactor mounting style and is compatible with Series XT mini contactors in frame size B.

What reset options are available after a trip event?

The relay provides both automatic and manual reset modes for recovery after an overload trip.

Will the thermal elements need periodic replacement?

The electronic overload protection does not use separate thermal units, so no thermal-element replacement is required.
