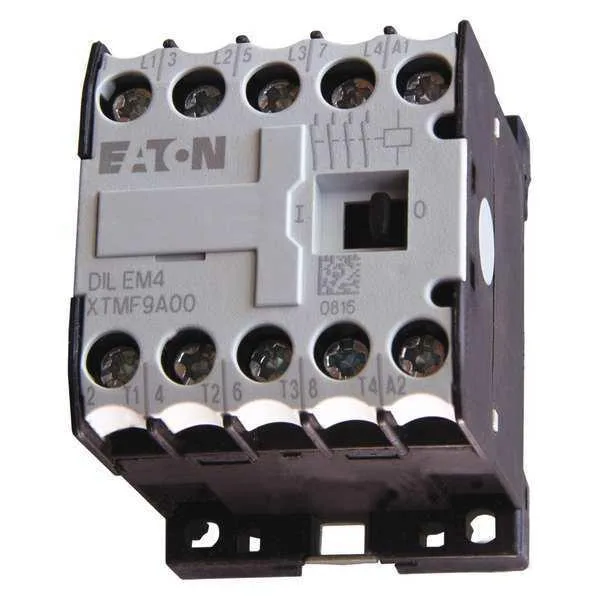

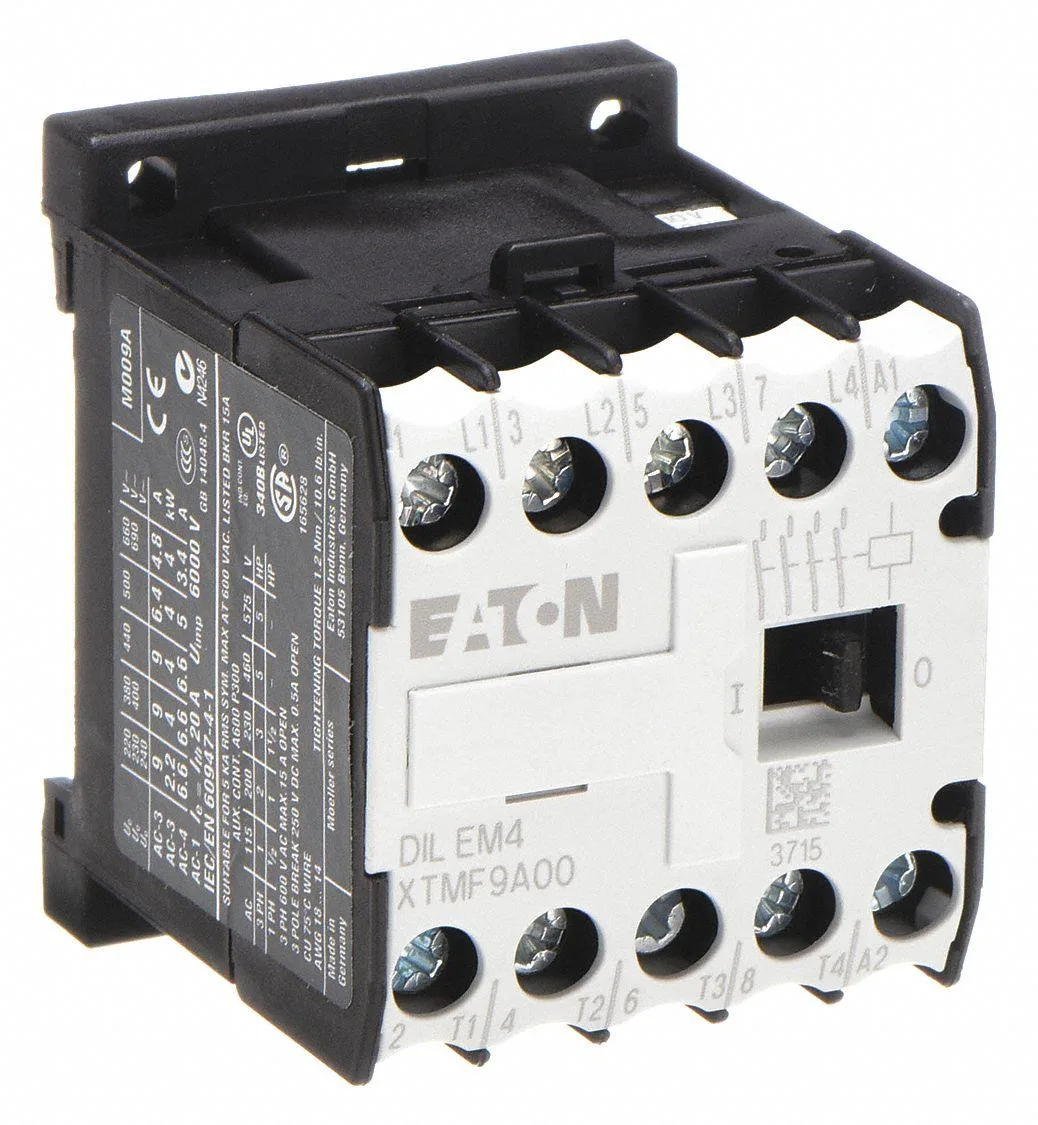

Transparent miniature IEC magnetic contactor with screw terminals

Eaton

Eaton XTMF9A00TD Mini Magnetic Contactor 4 Poles 24V DC 9 A

SKU CH-0SP9-JNB2Q

Miniature IEC magnetic contactor with 4 poles, 24 V DC coil, 9 A inductive and 20 A resistive ratings, DIN-rail or panel mount, screw terminals

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • 4-pole switching handles 9 A inductive loads
  • 24 V DC coil fits low-voltage control circuits
  • 20 A resistive rating supports heating applications
  • 5 in height allows tight panel layouts
  • DIN rail and panel mounting simplifies installation

Mini Magnetic Contactor for 24V DC Control Circuits

The Eaton XTMF9A00TD is a miniature IEC magnetic contactor rated at 9 A inductive and 20 A resistive load. It operates on a 24V DC coil and provides four poles in a compact frame suitable for DIN rail or panel mounting. Industrial automation engineers and panel builders use it for switching motor loads and power circuits in tight enclosures.

Verify Coil Voltage Mounting Space

Confirm your control circuit supplies 24V DC to match the coil rating before ordering. The unit measures 1.5 in height by 2 in width and uses screw terminals for wiring. No auxiliary contacts are included and the contactor is non-reversing, so ensure your control scheme does not require built-in auxiliary feedback or reversing function.

Sustained Load Performance Within Rated Current

Under continuous operation the contactor handles up to 9 A inductive or 20 A resistive current without exceeding its thermal limits. The IEC frame size A design maintains stable contact resistance during extended duty cycles. It has no enclosure rating, so ambient temperature and ventilation inside the cabinet determine long-term reliability.

Highlights

  • 4-pole switching handles 9 A inductive loads
  • 24 V DC coil fits low-voltage control circuits
  • 20 A resistive rating supports heating applications
  • 5 in height allows tight panel layouts
  • DIN rail and panel mounting simplifies installation

Specifications

BrandEaton
ModelXTMF9A00TD
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

What comes in the box and what must be purchased separately?

The package contains the contactor only. Auxiliary contacts are not included and must be bought separately if needed.

Which coil voltage and pole configuration should I select?

This model operates on 24V DC and provides 4 poles, so choose it when your control circuit matches that voltage and you need four switching paths.

What does the 9 A inductive current rating mean in practice?

It indicates the contactor can reliably switch inductive loads up to 9 A, while resistive loads are rated up to 20 A.
